SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Cabinet/top

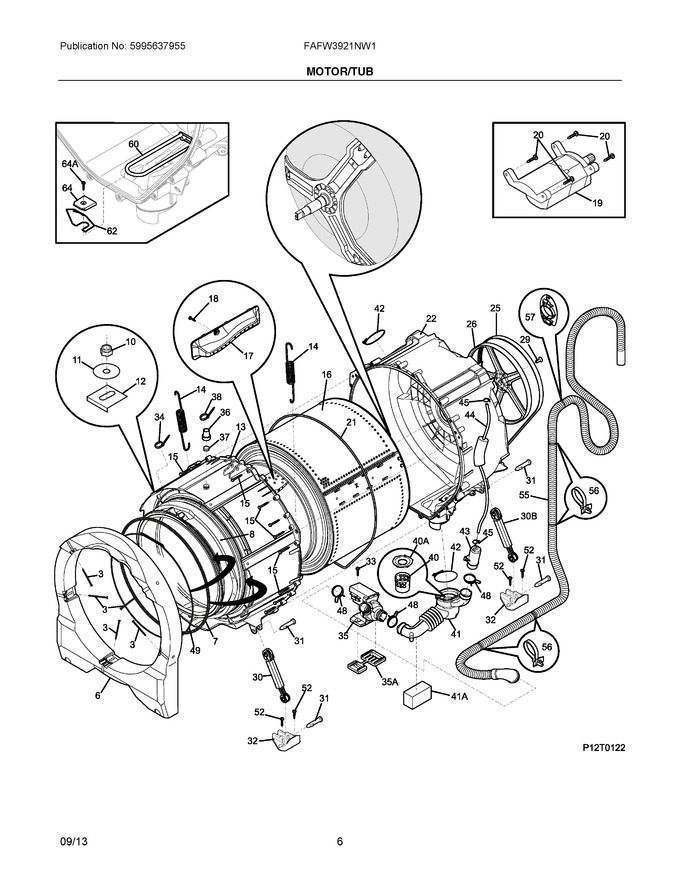

04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	131793303		Bolt, Carriage, 1/4-20 X 2.60				$ 13.74
6	134362210		Counterweight, One Piece				$ 304.33
7	134365300		Spring, Bellows Clamp, Retainer				$ 61.66
8	134515300		Bellows, Boot, No Light Hole   (Replaces: 134740900)			Immediately	$ 343.18
10	137086500		Nut, Hex, 1/4-20 Unc-2b				$ 18.11
11	131276900		Washer, Bellville, Spring Steel				$ 21.69
12	134430600		Plate, Counterweight				$ 10.40
13	134955100		Shell, Tub, Front				$ 256.64
14	134957000		Spring Asmy, Suspension				$ 80.09
15	131303900		Screw, Hex Washer Head, 1/4-10a X 2.165				$ 15.60
16	134962501		Drum Assy, Spin Basket				$ 484.89
17	134952702		Vane				$ 42.53
18	131302800		Screw, Quadrex Ph, 10-16ab X 0.5			Immediately	$ 26.58
19	134638900		Motor, Induction, Controlled   (Replaces: 137248100)				$ 411.19
20	131303500		Screw, 12-14ab X 1.50, Motor Mtg.				$ 12.05
21	5304520351		O-ring, Tub   (Replaces: 134361900)				$ 98.32
22	134956200		Shell, Outer Tub, Rear, With Bearing				$ 515.64
25	134616700		Belt, Drive, Poly-v			Immediately	$ 60.15
26	137317100		Pulley, Drum Drive, Rear, Large				$ 60.74
29	134408400		Screw, 10.9 Class, M10 X 25 Mm				$ 17.72
30	5304491701		Shock Absorber, (hp) And Clips, Front   (Replaces: 137040900)			Immediately	$ 230.44
31	131268300		Pin, Shock Mtg.			Immediately	$ 12.76
32	134363200		Bracket, Shock Mtg.				$ 19.13
33	134637200		Screw, #10-16x1.125, Hex Washer Head				$ 14.18
34	5304464772		Cable Tie, 5.60 Inch, Plastic   (Replaces: 5303321209)				$ 10.63
35	137311900		Pump, Drain			Immediately	$ 225.39
36	137322400		Hose, Vent				$ 115.03
37	137322500		Screen, Vent				$ 33.39
40	134640200		Filter, Pump				$ 19.13
41	134639920		Hose, Coin Trap, Tub-to-pump			Immediately	$ 106.26
42	134737300		Clamp, Hose				$ 20.13
43	134636800		Chamber, Air				$ 32.81
44	137089000		Hose, Air Pressure   (Replaces: 134369900)				$ 129.00
45	137087500		Clamp, Hose				$ 10.13
48	5304536802		Clamp, Hose, Wire   (Replaces: 131306234)			Immediately	$ 4.01
49	134527100		Clamp, Bellows, Spring Held			Immediately	$ 44.55
52	131202300		Screw, 10-16ab X 0.625			Immediately	$ 13.46
55	137628100		Hose, Drain, One Piece				$ 111.33
56	137003500		Cable Tie, Push Mount				$ 6.38
57	134641100		Bracket, Drain Hose Mtg, Rear				$ 19.85
60	5304534256		Heating Element, (1000w) With Nt   (Replaces: 137488301)				$ 90.70
62	134642300		Support, Heating Element				$ 20.08
64	134644600		Support, Heating Element		Appelez-nous	-
30B	5304491700		Shock Absorber, (ss) And Clips, Back   (Replaces: 137041000)			Immediately	$ 85.62
35A	134618100		Pad, Vibration, Pump Motor				$ 139.39
40A	134640300		Cover, Filter				$ 11.57
41A	137340800		Damper, Vibration, Foam				$ 24.76
64A	134638100		Screw, #8-18 X .50, Truss Head		Appelez-nous	-
NIA	137290700		Wiring Harness, Motor				$ 92.45
NIA	137110800		Cushion, Shock Bracket, Left Rear				$ 13.46

    View Diagram in Separate Window       Print Part List
