SELECT A DIAGRAM

02 - Control Panel


03 - Body


04 - Burner , Lit/optional


05 - Glass Upper Oven And Lower Broiler

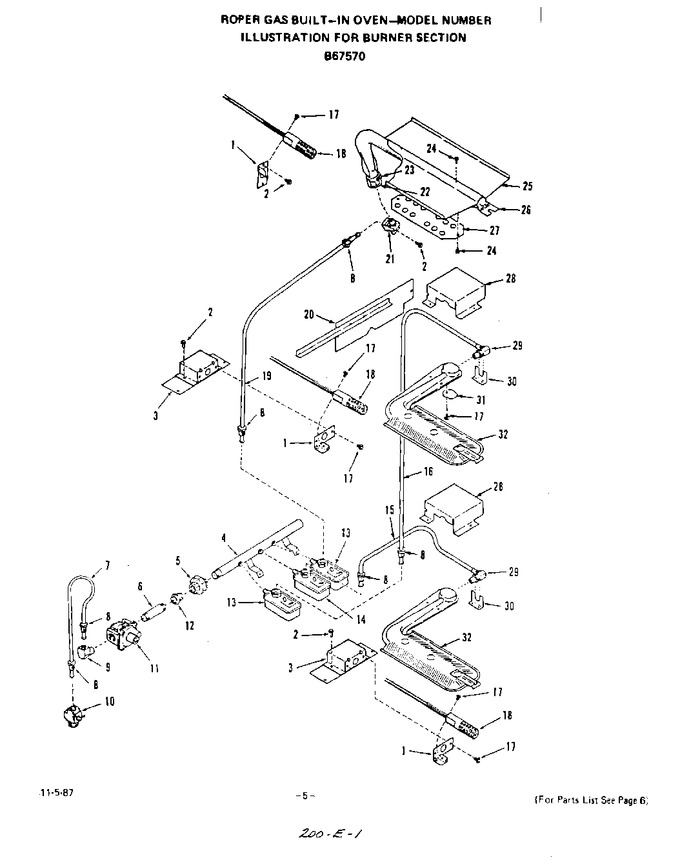

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311689		Bracket-igniter		Appelez-nous	-
2	316365		Screw 10-32x7/16``		Appelez-nous	-
3	307161		Support-igniter Asm (upr)		Appelez-nous	-
4	306364		Manifold Pipe W/bracket		Appelez-nous	-
5	295269		Union 1/2``-std		Appelez-nous	-
6	300967		Nipple 3/8`` X 2``		Appelez-nous	-
7	113397		Tubing3/8``(inlet Valve To Pressure Regulator)		Appelez-nous	-
8	113384		Inverted Nut 3/8``		Appelez-nous	-
9	295271		Elbow 90o		Appelez-nous	-
10	320479		Inlet Valve		Appelez-nous	-
11	295270		Pressure Regulator		Appelez-nous	-
12	102221		Bushing-reducer		Appelez-nous	-
13	306467		Control Valve		Appelez-nous	-
14	307006		Control Valve		Appelez-nous	-
15	314333		Tubing 3/8`` W/orifice Fitting (cont. To Lo. Ov.orifice)		Appelez-nous	-
16	314334		Tubing 3/8`` W/orifice Fitting (cont. Valve To Up. Orifice)		Appelez-nous	-
17	316365		Screw 10-32x7/16``		Appelez-nous	-
18	WG02F04373		Igniter (broil & Oven Burner)   (Replaces: 319887)			Immediately	$ 109.23
19	279542		Tubing 3/8`` (cont Valve To Broil Orifice)		Appelez-nous	-
20	323782		Cover Plate W/angle		Appelez-nous	-
21	311981		Broiler Orifice Fitting		Appelez-nous	-
22	239267		Air Shutter		Appelez-nous	-
23	239268		Adjusting Screw-air Shutter		Appelez-nous	-
24	97217		Screw 8 - 32x3/8``		Appelez-nous	-
25	325271		Upper Baffle - Broiler Burner		Appelez-nous	-
26	306497		Broiler Burner (inc Keys 25 & 27)		Appelez-nous	-
27	281279		Lower Baffle-broiler Burner		Appelez-nous	-
28	323768		Cover Box-venturi		Appelez-nous	-
29	314335		Orifice Fitting				$ 5.22
30	279490		Bracket-orifice Fitting		Appelez-nous	-
31	323455		Air Shutter		Appelez-nous	-
32	336312		Sensor		Appelez-nous	-
32	331854		Oven Burner		Appelez-nous	-
32	336828		Main		Appelez-nous	-
32	306470		Manifold		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
