SELECT A DIAGRAM

02 - Control Panel


03 - Body


04 - Burner , Lit/optional

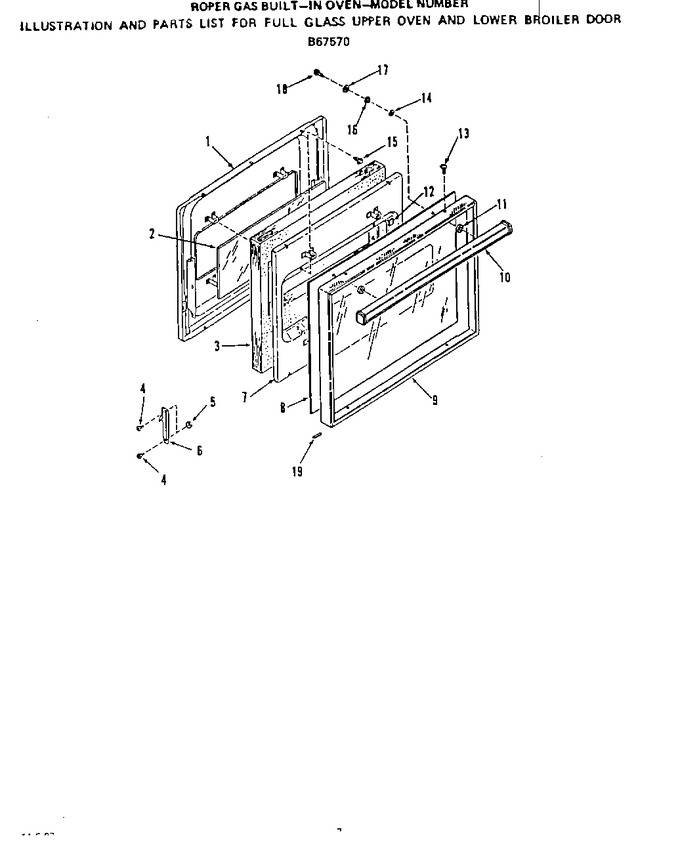

05 - Glass Upper Oven And Lower Broiler


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	331853		Door Lining - Upper Or Lower Door		Appelez-nous	-
2	111887		Door Glass-inner				$ 12.84
3	299782		Insulation - Upper Or Lower Door		Appelez-nous	-
4	97709		Shoulder Bolt (4 Req)		Appelez-nous	-
5	97816		Hex Nut 10-32		Appelez-nous	-
6	325201		Right		Appelez-nous	-
6	325203		Left		Appelez-nous	-
7	322096		Insulation Retainer - Upper Or Lower Door		Appelez-nous	-
8	336207		Door Glass-outer-upper Or Lower Door		Appelez-nous	-
9	336212		Door Frame-upper Or Lower Door		Appelez-nous	-
10	336205		Door Handle		Appelez-nous	-
11	DE81-05147A		Spacer, Door Handle   (Replaces: 107158)				$ 205.79
12	299314		Spacer (4 Req.)		Appelez-nous	-
13	327621		Screw 6-20x3/8``		Appelez-nous	-
14	333014		Washer-fiber		Appelez-nous	-
15	104520		Screw 10-32 X 17/32``		Appelez-nous	-
16	333015		Spacer-door Glass		Appelez-nous	-
17	99279		Washer		Appelez-nous	-
18	300864		Screw 10-32x3/4``		Appelez-nous	-
19	112370		Cushion-door Glass		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
