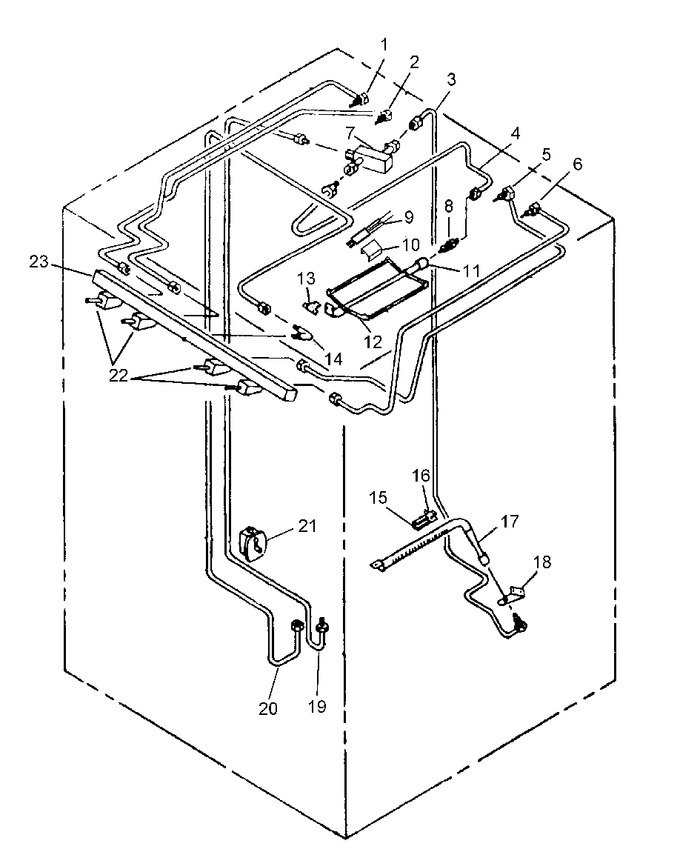

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0308147		Tubing, Orifice L.r.-no.55		Appelez-nous	-
2	0308146		Tubing, Orifice L.f.-no.55		Appelez-nous	-
3	Y0314889		Tubing, Bake Orifice		Appelez-nous	-
4	0301744		Tubing, Gas		Appelez-nous	-
5	Y0308148		Tubing, Orifice R.r.-no.56		Appelez-nous	-
6	0308149		Tubing, Orifice R.f.-no.56		Appelez-nous	-
7	Y0302706		Valve, Gas, Dual		Appelez-nous	-
8	Y0314452		Orifice, Broil Burner		Appelez-nous	-
9	Y0314920		Ignitor, Broil		Appelez-nous	-
10	Y0314225		Shield, Broiler Ignitor		Appelez-nous	-
11	Y0314915		Burner, Broil		Appelez-nous	-
12	Y0314916		Reflector, Broil		Appelez-nous	-
13	0300072		Support, Broil Burner		Appelez-nous	-
14	Y0303219		Fitting 1/4 Npt X 3/8 Comp		Appelez-nous	-
15	786324		Ignitor   (Replaces: Y0309145)			Immediately	$ 60.68
16	Y0063757		Bracket, Igniter Mounting		Appelez-nous	-
17	31716401		Burner, Bake		Appelez-nous	-
18	Y0314888		Brk`t, Oven Orifice		Appelez-nous	-
19	Y0307589		Tubing, Inlet-valve		Appelez-nous	-
20	Y0307588		Tubing, Inlet-manifold		Appelez-nous	-
21	Y0315084		Reg, Press.-nat. Only		Appelez-nous	-
22	Y0308641		Valve, Top Burner		Appelez-nous	-
23	0308150		Manifold Pipe		Appelez-nous	-
NI	31750703		Screw, Valve (blk)		Appelez-nous	-
NI	Y0300090		Brkt., Gas Valve Mtg.		Appelez-nous	-
NI	Y0091523		Insulation, Esm		Appelez-nous	-
NI	31750402		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
NI	Y0097822		Rivet, Pop		Appelez-nous	-
NI	WP489128		Screw No.8 Stainless Elements   (Replaces: Y0041817)				$ 9.79
