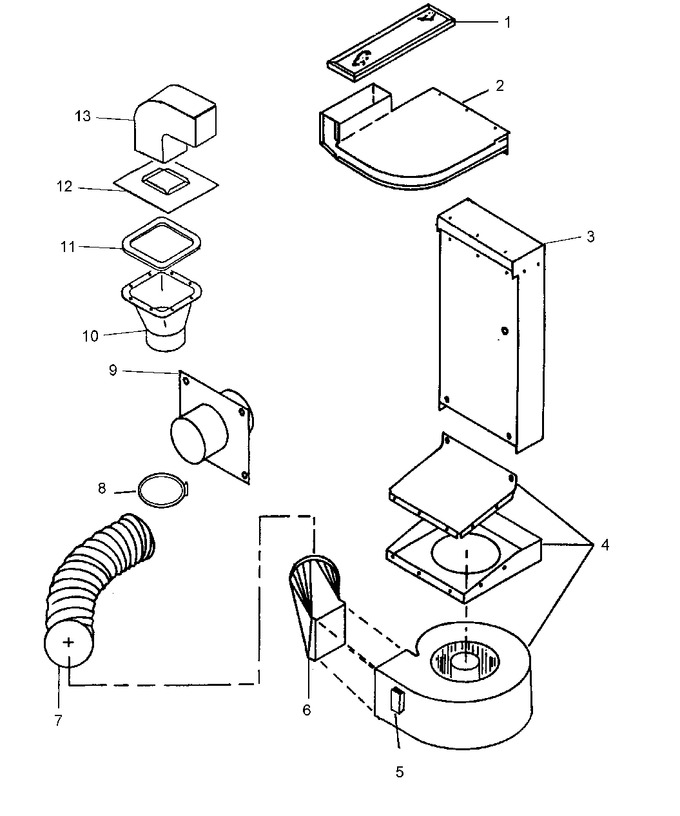

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0307363		Filter (17.75``x4.0``x.375``)				$ 16.98
2	314755CG		W/a Top Plenum		Appelez-nous	-
3	Y0314779		W/a Rear Plenum		Appelez-nous	-
4	Y0314676		Assy, Blwr Box W/capacitor		Appelez-nous	-
5	D6711804		Capacitor		Appelez-nous	-
6	Y0307508		Duct, Blower		Appelez-nous	-
7	Y0307945		Duct, Flex		Appelez-nous	-
8	Y0307680		Clamp, Worm Gear		Appelez-nous	-
9	Y0307592		Thimble, 6`` Duct		Appelez-nous	-
10	Y0310943		Transition,wall/floor/side Cab		Appelez-nous	-
11	Y0301343		Gasket, Bonded		Appelez-nous	-
12	Y0315330		Plate, Duct		Appelez-nous	-
13	Y0315331		Floor Duct, Elbow		Appelez-nous	-
NI	31750425		Screw, No.8-18 X 3/8 Pph		Appelez-nous	-
NI	0316014		Wire Harness		Appelez-nous	-
NI	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
NI	31750308		Screw, No.6-32 X .375 Panhd(blk)		Appelez-nous	-
NI	M0282005		Nut, Hex .562   (Replaces: 31750113)				$ 7.07
