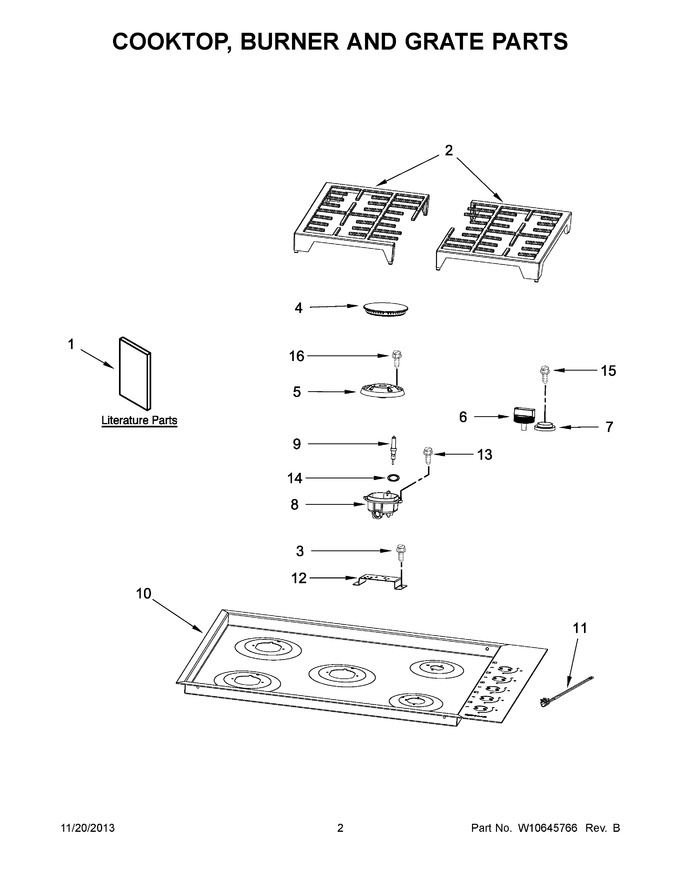

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10588275 | Instructions, Installation |
|
- | |||||
| 1 | W10620796 | Diagram, Wiring |
|
- | |||||
| 1 | W10588274 | Guide, Use & Care |
|
- | |||||
| 1 | W10588276 | Lp Conversion Instructions |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 2 | WPW10623870 | Grate, Burner (side) (pro-line) (Replaces: W10623870) |
|
$ 394.48 | |||||
| 2 | WPW10623925 | Grate, Burner (side) (stainless Model) (Replaces: W10623925) |
|
$ 329.04 | |||||
| 3 | W10626012 | Screw , 8-32 X 1/4`` Pan Head |
|
- | |||||
| 4 | W10617817 | Cap, Burner (black (small) (right Rear)) |
|
$ 163.25 | |||||
| 4 | WPW10617815 | Cap, Burner (black (large) (left Front, Left Rear, Center)) (Replaces: W10617815) |
|
Immediately | $ 246.70 | ||||
| 4 | W10617816 | Cap, Burner (black (medium) (right Front)) |
|
$ 69.27 | |||||
| 5 | W10617820 | Base, Burner (small (right Rear)) |
|
$ 73.52 | |||||
| 5 | W11197492 | Base, Burner (large (left Front, Left Rear, Center)) (Replaces: W10617818) |
|
Immediately | $ 121.97 | ||||
| 5 | W10617819 | Base, Burner (medium (right Front)) |
|
$ 79.95 | |||||
| 6 | W10620811 | Knob (pro-line) |
|
$ 86.56 | |||||
| 6 | WPW10620810 | Knob (stainless) (Replaces: W10620810) |
|
$ 156.42 | |||||
| 7 | W10618500 | Bezel, Knob (stainless) |
|
Immediately | $ 140.56 | ||||
| 8 | WPW10571492 | Holder, Orifice (155 Mm) (left Rear) (Replaces: W10571492) |
|
$ 73.14 | |||||
| 8 | WPW10571493 | Holder Orifice (170mm) (left Front) (Replaces: W10571493) |
|
$ 72.47 | |||||
| 8 | W10618475 | Holder Orifice (110mm) (right Rear) |
|
$ 69.47 | |||||
| 8 | WPW10571491 | Holder Orifice (132mm) (right Front) (Replaces: W10571491) |
|
$ 63.45 | |||||
| 8 | W10618474 | Holder Orifice (193mm) (center) |
|
$ 110.81 | |||||
| 9 | W10623868 | Electrode (250mm) (right Rear) |
|
$ 67.64 | |||||
| 9 | W10617810 | Electrode (250mm) (right Front) |
|
Immediately | $ 69.97 | ||||
| 9 | W10617809 | Electrode (695mm) (left Front, Left Rear) |
|
$ 119.31 | |||||
| 9 | W10617808 | Electrode (395mm) (center) |
|
$ 82.31 | |||||
| 10 | WPW10618506 | Cooktop, Main (Replaces: W10618506) |
|
$ 1,826.69 | |||||
| 11 | W10623921 | Assembly, Indicator Light (led) |
|
Immediately | $ 305.24 | ||||
| 12 | W10618476 | Bracket, Orifice Holder |
|
- | |||||
| 13 | W10626015 | Screw, Injector Holder |
|
$ 17.14 | |||||
| 14 | W10571930 | Clip, Electrode |
|
Immediately | $ 21.71 | ||||
| 15 | W10637348 | Screw |
|
Immediately | $ 26.28 | ||||
| 16 | W10626017 | Screw, Burner Base ( Small Burner ) |
|
$ 16.78 | |||||
| 16 | W11676624 | Screw, Burner Base ( Large And Medium Burners ) (Replaces: W10626016) |
|
Immediately | $ 13.17 |
