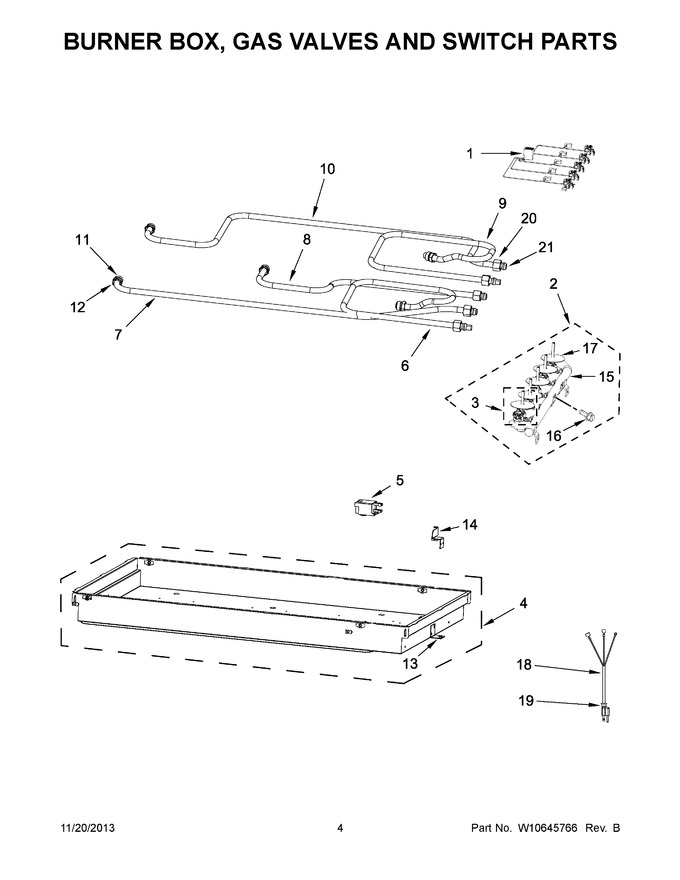

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10623929		Harness, Switch				$ 281.66
2	W10623919		Assembly, Manifold				$ 324.77
3	W10617471		Valve, Gas (right Rear)				$ 124.44
3	W10617473		Valve, Gas (left Front, Left Rear, Center)				$ 127.81
3	W10617472		Valve, Gas (right Front)				$ 131.27
4	W10623922		Assembly, Burner Box		Appelez-nous	-
5	W11601369		Spark Module   (Replaces: 8190929)			Immediately	$ 60.62
6	W10620812		Tubing, Burner (right Front)		Appelez-nous	-
7	WPW10620813		Tubing, Burner (left Front)   (Replaces: W10620813)				$ 93.01
8	WPW10620814		Tubing, Burner (center)   (Replaces: W10620814)				$ 78.26
9	W10620815		Tubing, Burner (right Rear)		Appelez-nous	-
10	W10620816		Tubing, Burner (left Rear)		Appelez-nous	-
11	W10575399		Ferrule, Injector		Appelez-nous	-
12	W10575398		Nut, Injector		Appelez-nous	-
13	8190978		Bracket, Mounting				$ 81.04
14	W10617630		Bracket, Control Panel				$ 69.39
15	W10617475		Bracket, Valve		Appelez-nous	-
16	W10617476		Screw, Valves		Appelez-nous	-
17	8190911		Washer (spark Switch)		Appelez-nous	-
18	W10392007		Cord-power   (Replaces: W10618502)				$ 96.25
19	W10618504		Relief, Strain				$ 28.87
20	8190918		Nut, Compression		Appelez-nous	-
21	8190917		Sleeve, Compresson		Appelez-nous	-
NI	W10625907		Screw, Burner Box Mounting 8-32 X 3/8`` Pan Head				$ 20.40
NI	W10623148		Screw, Burner Box Mounting 10-32 X 1`` Pan Head		Appelez-nous	-
NI	W10625904		Screw, Cooktop 6-32 X 3/8`` Pan Head				$ 20.39
NI	W10626014		U-nut, Cooktop Mounting		Appelez-nous	-
NI	W10625905		Screw, Manifold Pipe Mounting 8 X 3/8`` Pan Head				$ 17.21
NI	W10590568		Kit, Lp Conversion				$ 151.02
NI	W10593221		Kit, Ng High Altitude		Appelez-nous	-
NI	W10593220		Kit, Lp High Altitude		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated,		Appelez-nous	-
NI	W10623930		Harness, Main				$ 214.22
