| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10653843 |
|
Wash Basket Complete |
|
Appelez-nous
|
- |
|
|
|
| 2 |
W10653849 |
|
Bearing Housing |
|
Appelez-nous
|
- |
|
|
|
| 3 |
W10653864 |
|
Rear Plate |
|
Appelez-nous
|
- |
|
|
|
| 4 |
W10653868 |
|
Ring Seal |
|
Appelez-nous
|
- |
|
|
|
| 6 |
W10653874 |
|
Rear Spacer |
|
Appelez-nous
|
- |
|
|
|
| 7 |
W10653959 |
|
Front Spacer |
|
Appelez-nous
|
- |
|
|
|
| 8 |
W10653961 |
|
Center Spacer |
|
Appelez-nous
|
- |
|
|
|
| 9 |
W10653963 |
|
Bearing Cover Plate |
|
Appelez-nous
|
- |
|
|
|
| 10 |
W10653966 |
|
Ring Seal Gasket |
|
Appelez-nous
|
- |
|
|
|
| 11 |
W10653568 |
|
Tub Front Seal Cover |
|
Appelez-nous
|
- |
|
|
|
| 12 |
W10653974 |
|
Rear Washbasket Seal |
|
Appelez-nous
|
- |
|
|
|
| 13 |
W10653976 |
|
Front Washbasket Seal |
|
Appelez-nous
|
- |
|
|
|
| 14 |
W10653977 |
|
Rear Seal |
|
Appelez-nous
|
- |
|
|
|
| 15 |
W10653983 |
|
Bearing 32532 |
|
Appelez-nous
|
- |
|
|
|
| 16 |
W10654242 |
|
Bearing 113619 |
|
Appelez-nous
|
- |
|
|
|
| 20 |
W10654254 |
|
Retaining Ring |
|
Appelez-nous
|
- |
|
|
|
| 21 |
W10654256 |
|
Retaining Washer 95 |
|
Appelez-nous
|
- |
|
|
|
| 22 |
W10654259 |
|
Clamping Nut M95 X 2 |
|
Appelez-nous
|
- |
|
|
|
| 23 |
W10654262 |
|
Bolt M8 X 25 |
|
Appelez-nous
|
- |
|
|
|
| 24 |
W10653399 |
|
Bolt M10 X 30 |
|
Appelez-nous
|
- |
|
|
|
| 25 |
W10654268 |
|
Bolt M16 X 70 |
|
Appelez-nous
|
- |
|
|
|
| 26 |
W10653632 |
|
Washer M10 X 5 |
|
Appelez-nous
|
- |
|
|
|
| 27 |
W10653444 |
|
Washer M10 X 5 |
|
Appelez-nous
|
- |
|
|
|
| 28 |
W10653549 |
|
Washer M17 |
|
Appelez-nous
|
- |
|
|
|
| 30 |
W10654306 |
|
Basket Pulley |
|
Appelez-nous
|
- |
|
|
|
| 31 |
W10654315 |
|
Clamping Sleeve |
|
Appelez-nous
|
- |
|
|
|
| 32 |
W10654317 |
|
Bolt M10 X 60 |
|
Appelez-nous
|
- |
|
|
|

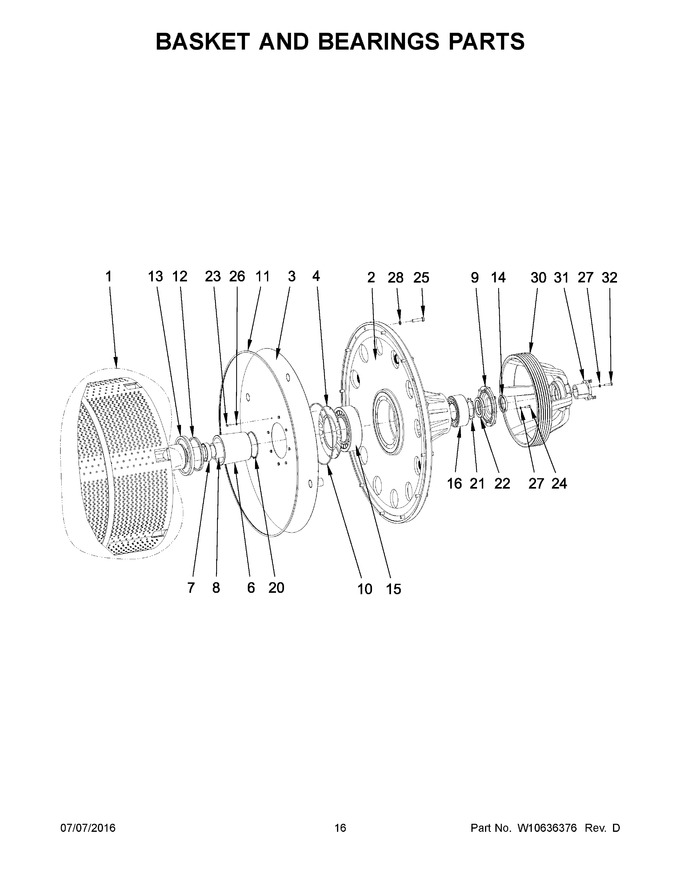

View Diagram in Separate Window
