| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10653660 |
|
Door Lock Complete (not A Warranty Item) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
23003953 |
|
Plate |
|
|
|
$ 24.88 |
|
|
| 3 |
W10654510 |
|
Connector Door Lock Bracket |
|
Appelez-nous
|
- |
|
|
|
| 4 |
W10657268 |
|
Tube |
|
Appelez-nous
|
- |
|
|
|
| 5 |
W10653631 |
|
Gate |
|
Appelez-nous
|
- |
|
|
|
| 6 |
W10654512 |
|
Link |
|
Appelez-nous
|
- |
|
|
|
| 7 |
23002704 |
|
Cam |
|
Appelez-nous
|
- |
|
|
|
| 8 |
23002706 |
|
Rising Section |
|
Appelez-nous
|
- |
|
|
|
| 9 |
23002707 |
|
Column |
|
Appelez-nous
|
- |
|
|
|
| 10 |
23002710 |
|
Ring |
|
Appelez-nous
|
- |
|
|
|
| 11 |
23002716 |
|
Coil Washer |
|
Appelez-nous
|
- |
|
|
|
| 12 |
23002728 |
|
Pin |
|
Appelez-nous
|
- |
|
|
|
| 13 |
23002729 |
|
Spring Holder |
|
Appelez-nous
|
- |
|
|
|
| 14 |
W10653401 |
|
Spacer Tube |
|
Appelez-nous
|
- |
|
|
|
| 15 |
23002708 |
|
Spring |
|
Appelez-nous
|
- |
|
|
|
| 16 |
23002712 |
|
Spring |
|
Appelez-nous
|
- |
|
|
|
| 17 |
W10653528 |
|
Insulation |
|
Appelez-nous
|
- |
|
|
|
| 18 |
23002711 |
|
Coil |
|
Appelez-nous
|
- |
|
|
|
| 19 |
23002730 |
|
Magnetic Switch |
|
Appelez-nous
|
- |
|
|
|
| 20 |
23002713 |
|
Microswitch |
|
Appelez-nous
|
- |
|
|
|
| 21 |
23002714 |
|
Microswitch |
|
Appelez-nous
|
- |
|
|
|
| 22 |
23002735 |
|
Insulation |
|
Appelez-nous
|
- |
|
|
|
| 23 |
23003863 |
|
Microswitch Plate |
|
Appelez-nous
|
- |
|
|
|
| 24 |
23002505 |
|
Grounding Plate |
|
Appelez-nous
|
- |
|
|
|
| 25 |
23002479 |
|
Cable Passage |
|
Appelez-nous
|
- |
|
|
|
| 26 |
23002473 |
|
Foam Connector Gasket |
|
|
|
$ 4.52 |
|
|
| 30 |
23002717 |
|
Bolt M3 X 6 |
|
Appelez-nous
|
- |
|
|
|
| 31 |
23002183 |
|
Bolt M3 X 10 |
|
Appelez-nous
|
- |
|
|
|
| 32 |
23002724 |
|
Bolt M3 X 12 |
|
Appelez-nous
|
- |
|
|
|
| 33 |
23001131 |
|
Bolt M3x14 |
|
Appelez-nous
|
- |
|
|
|
| 34 |
23002718 |
|
Bolt M3 X 16 |
|
Appelez-nous
|
- |
|
|
|
| 35 |
23002719 |
|
Bolt M3 X 20 |
|
Appelez-nous
|
- |
|
|
|
| 36 |
23002720 |
|
Bolt M4 X 8 |
|
Appelez-nous
|
- |
|
|
|
| 37 |
23002398 |
|
Bolt M4x16 |
|
Appelez-nous
|
- |
|
|
|
| 38 |
23002722 |
|
Bolt M6x12 |
|
Appelez-nous
|
- |
|
|
|
| 39 |
23004114 |
|
Bolt M6x16 (Replaces: 23002461) |
|
Appelez-nous
|
- |
|
|
|
| 40 |
W10654699 |
|
Bolt M6 X 35 |
|
Appelez-nous
|
- |
|
|
|
| 41 |
23002958 |
|
Nut M3 |
|
Appelez-nous
|
- |
|
|
|
| 42 |
23003666 |
|
Nut M4 |
|
Appelez-nous
|
- |
|
|
|
| 43 |
23003773 |
|
Nut M6 |
|
Appelez-nous
|
- |
|
|
|
| 44 |
W10654698 |
|
Plastic Washer |
|
Appelez-nous
|
- |
|
|
|
| 45 |
23003654 |
|
Washer M3.2 |
|
Appelez-nous
|
- |
|
|
|
| 46 |
23003955 |
|
Washer M4.3 |
|
Appelez-nous
|
- |
|
|
|
| 47 |
23002438 |
|
Washer M4.3 |
|
Appelez-nous
|
- |
|
|
|
| 48 |
23003767 |
|
Washer M6.4 |
|
Appelez-nous
|
- |
|
|
|
| 49 |
23003778 |
|
Washer, Lock |
|
Appelez-nous
|
- |
|
|
|
| 50 |
23002400 |
|
Washer M4 |
|
Appelez-nous
|
- |
|
|
|
| 51 |
20007283 |
|
Washer M6 (Replaces: 23002440) |
|
|
|
$ 504.91 |
|
|

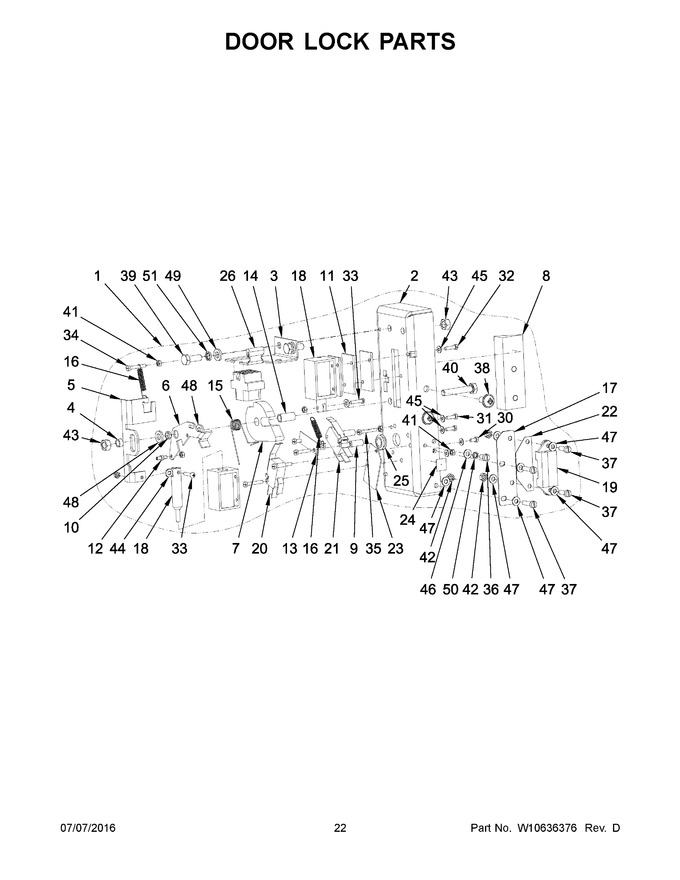

View Diagram in Separate Window
Print Part List
