01 - Cover Sheet

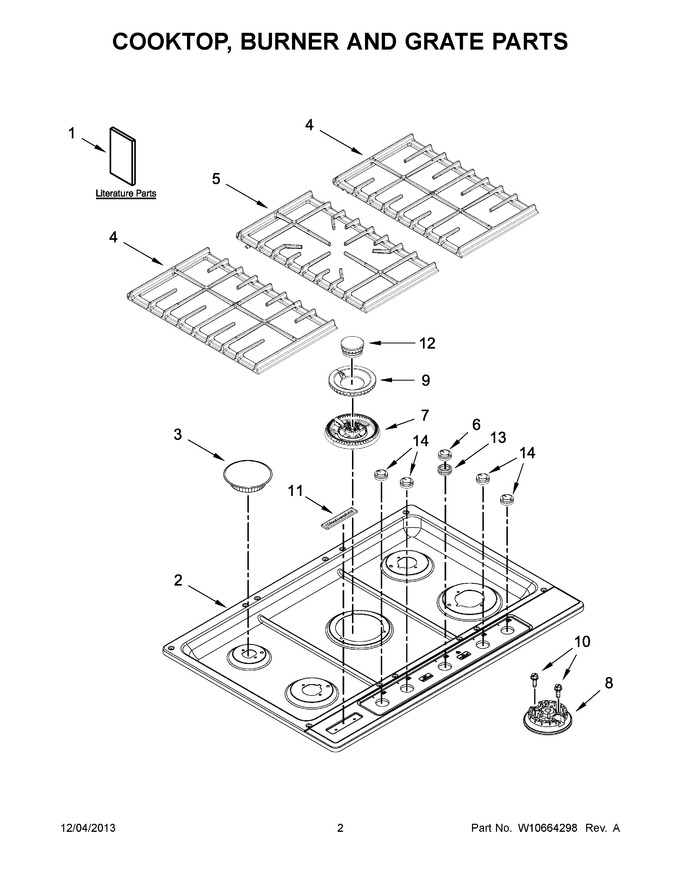

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switch Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10526085		Installation Instructions		Appelez-nous	-
1	W10411933		Use & Care Guide		Appelez-nous	-
1	8286697		Tech Sheet		Appelez-nous	-
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2	W10558975		Cooktop (stainless)		Appelez-nous	-
3	WP8286817		Cap, Burner (black) (right Rear)   (Replaces: 8286817)				$ 100.88
3	WP8286818		Cap, Burner (black) (left Front & Right Front)   (Replaces: 8286818)				$ 100.97
3	WP8286816		Cap, Burner (black (left Rear))   (Replaces: 8286816)				$ 94.92
4	8286662		Grate (right)				$ 95.67
4	WP8287314		Grate (left)   (Replaces: 8287314)				$ 195.66
5	8287049		Grate, Center				$ 95.84
6	W10132191		Knob, Special (stainless)				$ 53.42
7	W10836409		Spreader, Burner   (Replaces: W10617289)			Immediately	$ 115.45
8	WP8286815		Head, Burner (left Front & Right Front)   (Replaces: 8286815)			Immediately	$ 66.94
8	WP8286814		Head, Burner (right Rear)   (Replaces: 8286814)				$ 106.79
8	WP8286813		Head, Burner (left Rear)   (Replaces: 8286813)				$ 85.50
9	W10846732		Cap, Outer Burner (black)   (Replaces: W10398574)				$ 89.24
10	WP8287059		Screw   (Replaces: 8287059)			Immediately	$ 7.02
11	WPW10243391		Badge (stainless)   (Replaces: W10243391)				$ 49.98
12	WPW10398575		Cap, Inner Burner (black)   (Replaces: W10398575)				$ 26.76
13	8286854		Grommet, Knob				$ 7.51
14	WPW10132192		Knob, Control (stainless)   (Replaces: W10132192)				$ 53.82
