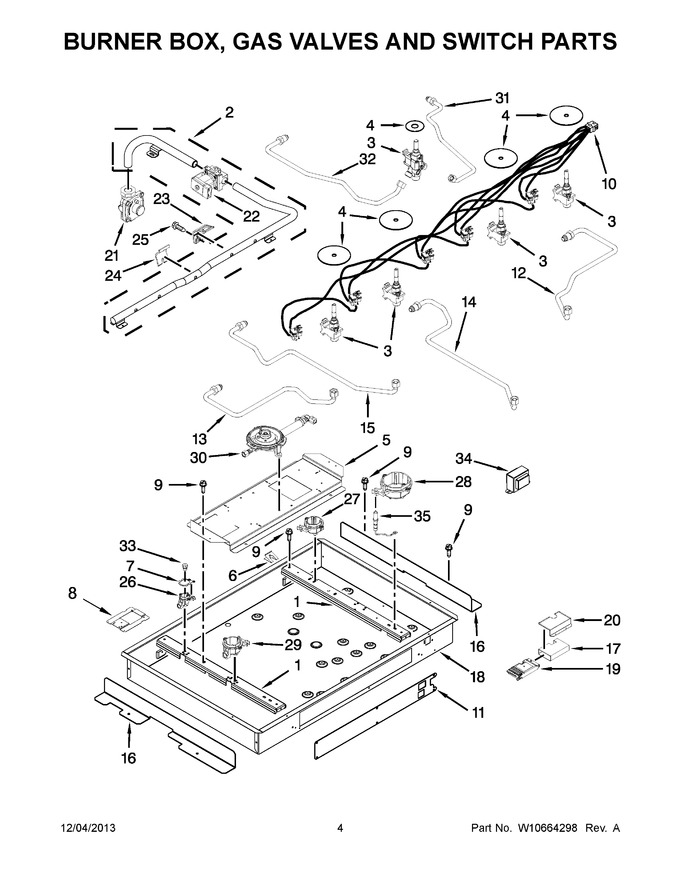

03 - Burner Box, Gas Valves And Switch Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8286753		Rail, Burner (left)		Appelez-nous	-
1	8286728		Rail, Burner Right		Appelez-nous	-
2	W10370674		Manifold		Appelez-nous	-
3	8286916		Valve, Single (left Rear)				$ 213.35
3	WP8287058		Valve, Dual (center)   (Replaces: 8287058)				$ 275.16
3	8286920		Valve, Single (left Front & Right Front)				$ 153.17
3	8286919		Valve, Single (right Rear)				$ 212.06
4	W10140577		Seal, Dual Switch Shaft		Appelez-nous	-
4	W10140571		Seal, Switch Shaft				$ 6.60
5	W10411143		Rail, Center		Appelez-nous	-
6	8286863		Spring, Electrode				$ 65.93
7	8286930		Gasket, Orifice (left Rear)				$ 82.05
7	8286932		Gasket, Orifice (left Front & Right Front)				$ 82.11
7	8286931		Gasket, Orifice (right Rear)				$ 53.77
8	W10400357		Bracket, Dual Ring Mounting		Appelez-nous	-
9	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
10	8286687		Harness, Switch				$ 89.50
11	8286740		Cover, Plate		Appelez-nous	-
12	W10526599		Tubing, Gas Burner (right Front)		Appelez-nous	-
13	W10526597		Tubing, Gas Burner (left Front)		Appelez-nous	-
14	W10526600		Tubing, Gas Burner (right Rear)		Appelez-nous	-
15	W10526598		Tubing, Gas Burner (left Rear)		Appelez-nous	-
16	8286771		Shield, Heat		Appelez-nous	-
17	8286829		Module,reignition				$ 243.02
18	8286751		Box, Burner		Appelez-nous	-
19	8287103		Insulation, Reignition Module				$ 66.94
20	W10132198		Cover, Reignition Module		Appelez-nous	-
21	W11087445		Regulator, Pressure   (Replaces: W10132345)			Immediately	$ 177.34
22	W10368615		Valve, Gas Shut Off				$ 195.25
23	8287055		Bracket, Single Valve				$ 65.54
24	8287056		Bracket, Dual Valve		Appelez-nous	-
25	8287057		Screw, Valve Bracket				$ 10.15
26	8286820		Holder, Orifice (6k) (left Rear)				$ 68.99
27	W10140569		Holder, Orifice (7k) (right Rear)				$ 69.13
28	W10140570		Holder, Orifice (10k) (right Front)				$ 69.44
29	8286822		Holder, Orifice (12k) (left Front)				$ 47.00
30	W10617290		Assembly, Burner Base   (Replaces: W10398569)				$ 237.28
31	W10526603		Tube, Outer Crown				$ 35.65
32	W10526602		Tube, Inner Crown				$ 55.78
33	W10791072		Orifice (10k) (right Front)   (Replaces: W10151349)				$ 85.86
33	W10791614		Orifice (6k) (left Rear)   (Replaces: W10151348)				$ 85.86
33	W10151350		Orifice (7k) (right Rear)				$ 72.95
33	W10791081		Orifice (12k) (left Front)   (Replaces: W10151346)				$ 85.86
34	8286690		Transformer				$ 113.04
35	W10854967		Wiring, Electrode (right Front)   (Replaces: 8286725)			Immediately	$ 41.37
35	8286723		Wiring, Electrode (left Rear)				$ 69.68
35	8286724		Wiring, Electrode (right Rear)				$ 30.12
35	WPW10560001		Wiring, Electrode (left Front)   (Replaces: 8286722)				$ 71.52
