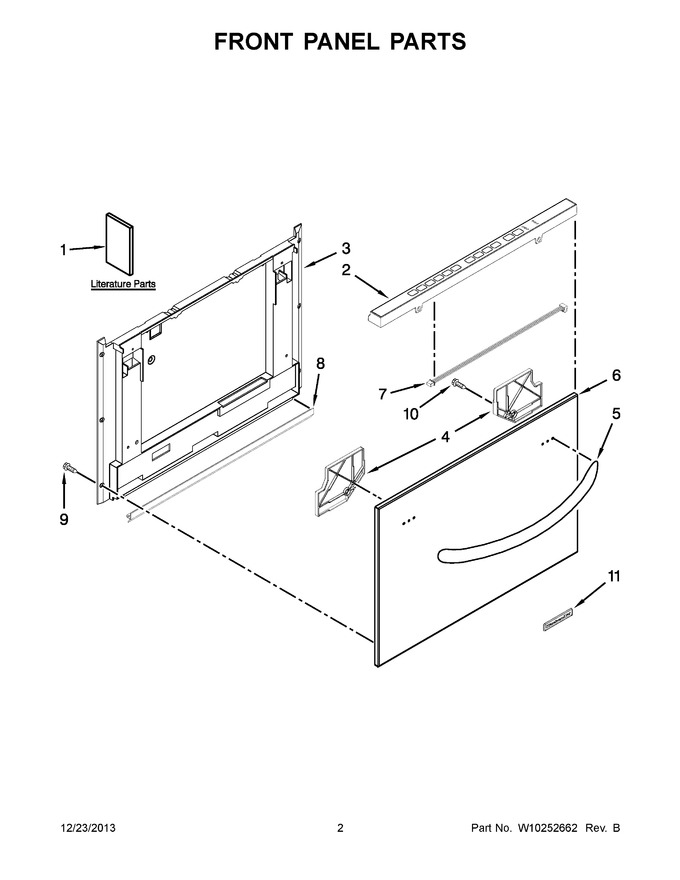

02 - Front Panel Parts
03 - Tub Parts
04 - Wash System Parts
05 - Upper And Lower Dishrack Parts
06 - Frame And Lid Parts
07 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10208035 | Energy Guide |
|
- | |||||
| 1 | W10216167 | Instructions, Installation |
|
- | |||||
| 2 | W10258844 | Control Panel (includes User Interface) (stainless) |
|
- | |||||
| 2 | W10258843 | Control Panel (includes User Interface) (black) |
|
- | |||||
| 3 | 99003750 | Intermediate Panel |
|
$ 127.11 | |||||
| 4 | W10138778 | Anchor Panel |
|
- | |||||
| 5 | W10185045 | Handle (stainless) |
|
- | |||||
| 5 | W10185044 | Handle (black) |
|
- | |||||
| 6 | W10185034 | Panel, Front Lower (also Order Item 11) (black) |
|
- | |||||
| 6 | W10185059 | Panel, Front Upper (stainless) |
|
- | |||||
| 6 | W10185061 | Panel, Front Upper (black) |
|
- | |||||
| 6 | W10185027 | Panel, Front Lower (also Order Item 11) (stainless) |
|
- | |||||
| 7 | W10117969 | Harness, User Interface |
|
$ 206.56 | |||||
| 8 | 99003716 | Trim, Toe Kick (black) |
|
- | |||||
| 9 | Y912620 | Screw, Door |
|
$ 5.48 | |||||
| 10 | WPW10001180 | Screw (Replaces: 99003156) |
|
$ 7.23 | |||||
| 11 | W10185040 | Nameplate |
|
- |
