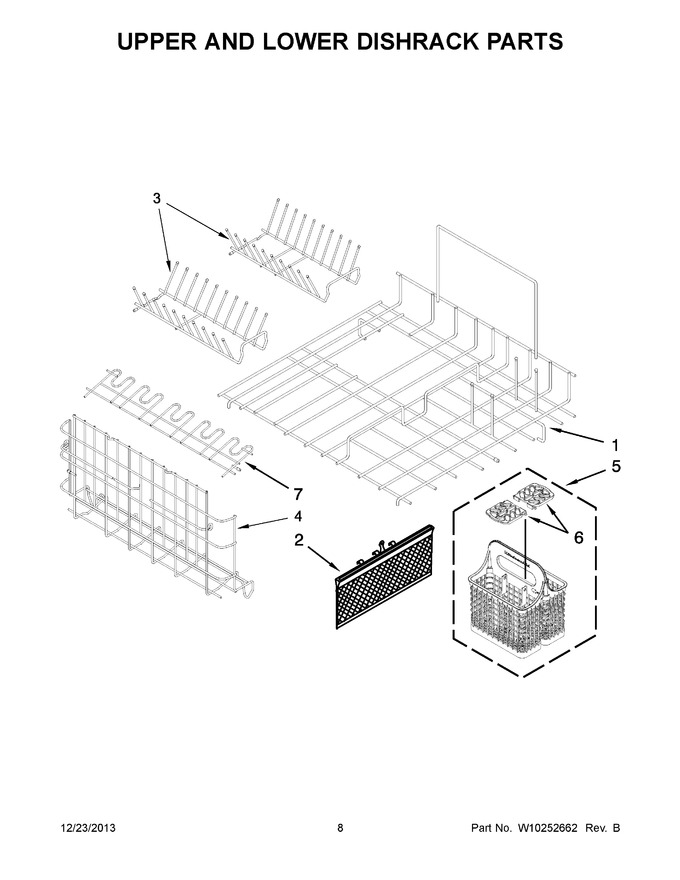

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10118023 | Rack, Base |
|
$ 166.29 | |||||
| 2 | 8519716 | Basket, Small Items |
|
$ 57.95 | |||||
| 3 | W10118020 | Rack, Insert (large Tines) |
|
- | |||||
| 3 | W10118019 | Rack, Insert (small Tines) |
|
- | |||||
| 4 | WPW10118010 | Rack, Left (Replaces: W10118010) |
|
$ 133.30 | |||||
| 5 | W10118031 | Basket, Silverware Assembly |
|
$ 38.22 | |||||
| 6 | W10118032 | Cover, Silverware Basket |
|
$ 7.82 | |||||
| 7 | W10118001 | Shelf, Rack |
|
$ 66.34 |
