01 - Cover Sheet

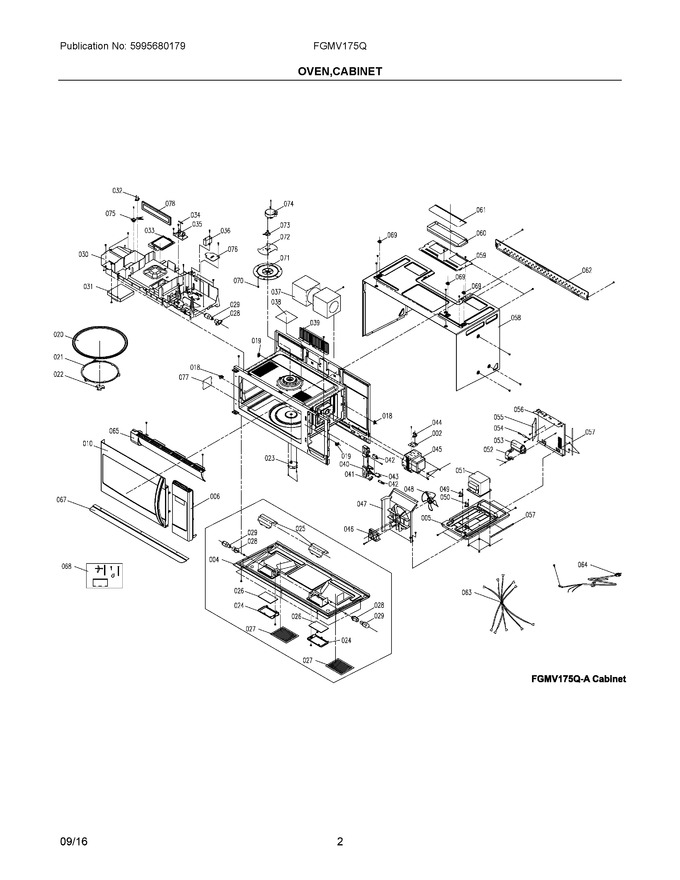

02 - Oven, Cabinet
03 - Control Panel, Door, Misc
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304472439 | Bracket, Thermostat |
|
$ 18.43 | |||||
| 4 | 5304481486 | Cover, Unit Base |
|
$ 241.29 | |||||
| 5 | 5304464063 | Base, Transformer, Right Side |
|
$ 103.01 | |||||
| 6 | 5304494847 | Control Assembly, White |
|
$ 526.37 | |||||
| 10 | 5304494110 | Door Assembly, White |
|
$ 467.78 | |||||
| 18 | 5304509642 | Support, Shelf, A (Replaces: 5304478924) |
|
Immediately | $ 14.55 | ||||
| 19 | 5304509643 | Support, Shelf, B (Replaces: 5304478925) |
|
$ 13.83 | |||||
| 20 | 5304509621 | Turntable, Tray, Glass (Replaces: 5304464116) |
|
$ 154.61 | |||||
| 21 | 5304509438 | Support, Turntable Ring (Replaces: 5304464115) |
|
$ 52.20 | |||||
| 22 | 5304509622 | Coupler, Turntable/motor (Replaces: 5304472494) |
|
$ 21.02 | |||||
| 23 | 5304509440 | Motor, Turntable (Replaces: 5304464113) |
|
$ 118.13 | |||||
| 24 | 5304481505 | Frame, Lens Holder |
|
$ 70.13 | |||||
| 25 | 5304464104 | Cover, Lamp |
|
$ 59.27 | |||||
| 26 | 5304464103 | Lens, Cooktop Lamp, Glass |
|
$ 39.53 | |||||
| 27 | 5304509444 | Filter, Grease, Washable (Replaces: 5304478913) |
|
Immediately | $ 83.17 | ||||
| 28 | 5304464091 | Lampholder, Socket |
|
Immediately | $ 65.73 | ||||
| 29 | 5304461116 | Lamp, Light Bulb (Replaces: 5304464090) |
|
Immediately | $ 44.94 | ||||
| 30 | 5304491638 | Duct, Air, Main |
|
- | |||||
| 31 | 5304472452 | Vent, Air Outlet |
|
$ 105.81 | |||||
| 32 | 5304509449 | Thermostat, Cutout, Oven Cavity (Replaces: 5304464074) |
|
$ 21.69 | |||||
| 33 | 5304464111 | Cover, Lamp, Oven Cavity |
|
- | |||||
| 34 | 5304509451 | Fuse (Replaces: 5304488359) |
|
Immediately | $ 13.01 | ||||
| 35 | 5304509452 | Filter, Noise, Electronic (Replaces: 5304472447) |
|
Immediately | $ 75.74 | ||||
| 36 | 5304502494 | Capacitor, Start |
|
$ 119.39 | |||||
| 37 | 5304491613 | Motor, Hood/vent Fan |
|
$ 427.54 | |||||
| 38 | 5304491557 | Seal, Lamp, Mylar Film |
|
$ 9.29 | |||||
| 39 | 5304464256 | Cover, Control Shield, Right |
|
$ 64.16 | |||||
| 40 | 5304509457 | Latch Hook (Replaces: 5304499580) |
|
Immediately | $ 43.79 | ||||
| 41 | 5304509458 | Lever, Switch (Replaces: 5304464097) |
|
Immediately | $ 10.17 | ||||
| 42 | 5304509460 | Switch, Interlock (Replaces: 5304464099) |
|
Immediately | $ 45.27 | ||||
| 43 | 5304509459 | Switch, Monitor (Replaces: 5304464098) |
|
Immediately | $ 30.84 | ||||
| 44 | 5304509469 | Thermostat (Replaces: 5304464073) |
|
Immediately | $ 21.78 | ||||
| 45 | 5304519335 | Magnetron, High Voltage (Replaces: 5304472445) |
|
$ 354.20 | |||||
| 46 | 5304464118 | Motor, Cooling Fan |
|
$ 193.40 | |||||
| 47 | 5304478920 | Duct, Cooling Fan |
|
$ 72.38 | |||||
| 48 | 5304509473 | Fan Blade, Cooling Fan (Replaces: 5304464257) |
|
$ 15.47 | |||||
| 49 | 5304509474 | Thermostat, Cutout, Transformer (Replaces: 5304464093) |
|
Immediately | $ 20.97 | ||||
| 50 | 5304509475 | Thermostat, Cutout, Vent Motor (Replaces: 5304464094) |
|
Immediately | $ 19.52 | ||||
| 51 | 5304515184 | Transformer, Power, Hv (Replaces: 5304464075) |
|
Immediately | $ 423.01 | ||||
| 52 | 5304491616 | Retainer, Capacitor Strap |
|
- | |||||
| 53 | 5304509478 | Capacitor, High Voltage (Replaces: 5304491606) |
|
Immediately | $ 153.84 | ||||
| 54 | 5304509479 | Diode, High Voltage (Replaces: 5304464254) |
|
$ 28.30 | |||||
| 55 | 5304472454 | Vent, Air, Magnetron |
|
$ 62.79 | |||||
| 56 | 5304472451 | Duct, Hood Intake, Right Side |
|
- | |||||
| 57 | 5304491603 | Cushion, Transformer, Noise Reducer |
|
- | |||||
| 58 | 5304472460 | Cabinet, Outer Casing, White |
|
- | |||||
| 59 | 5304472453 | Cover, Vent Motor |
|
$ 167.95 | |||||
| 60 | 5304509485 | Frame, Damper Housing, Exhaust Adapter (Replaces: 5304464120) |
|
Immediately | $ 25.32 | ||||
| 61 | 5304509486 | Damper, Door, Exhaust Adapter (Replaces: 5304464119) |
|
Immediately | $ 27.73 | ||||
| 62 | 5304509487 | Plate, Mounting, Rear (Replaces: 5304488426) |
|
Immediately | $ 59.63 | ||||
| 63 | 5304494122 | Wiring Harness, Main |
|
$ 231.42 | |||||
| 64 | 5304512501 | Power Cord, Electric (Replaces: 5304464890) |
|
$ 106.27 | |||||
| 65 | 5304481508 | Grille, Exhaust, White |
|
- | |||||
| 67 | 5304481520 | Shield, Heat, Base Plate |
|
$ 72.67 | |||||
| 68 | 5304503192 | Mounting Kit, With Templates (Replaces: 5304492620) |
|
$ 114.26 | |||||
| 69 | 5304509436 | Mounting Nut Kit (Replaces: 5304502503) |
|
Immediately | $ 14.71 | ||||
| 70 | 5304509625 | Pin, Mounting, Stirrer Cover (Replaces: 5304491639) |
|
$ 3.62 | |||||
| 71 | 5304491558 | Cover, Stirrer Fan |
|
$ 83.06 | |||||
| 72 | 5304509649 | Stirrer Fan (Replaces: 5304488417) |
|
$ 15.90 | |||||
| 73 | 5304509650 | Shaft, Stirrer Fan (Replaces: 5304488416) |
|
$ 19.52 | |||||
| 74 | 5304488389 | Motor, Stirrer Fan |
|
$ 172.63 | |||||
| 75 | 5304509652 | Sensor, Humidity (Replaces: 5304481519) |
|
$ 305.46 | |||||
| 76 | 5304491640 | Baffle, Air Duct |
|
- | |||||
| 77 | 5304509435 | Cover, Waveguide (Replaces: 5304464061) |
|
Immediately | $ 13.74 | ||||
| 78 | FRPAMRAF | Filter, Charcoal, 2" X 10 (Replaces: 5304464577) |
|
Immediately | $ 37.86 | ||||
| NI | 5304499876 | Screw Kit, All (Replaces: 5304488428) |
|
Immediately | $ 35.57 |
