View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Oven, Cabinet

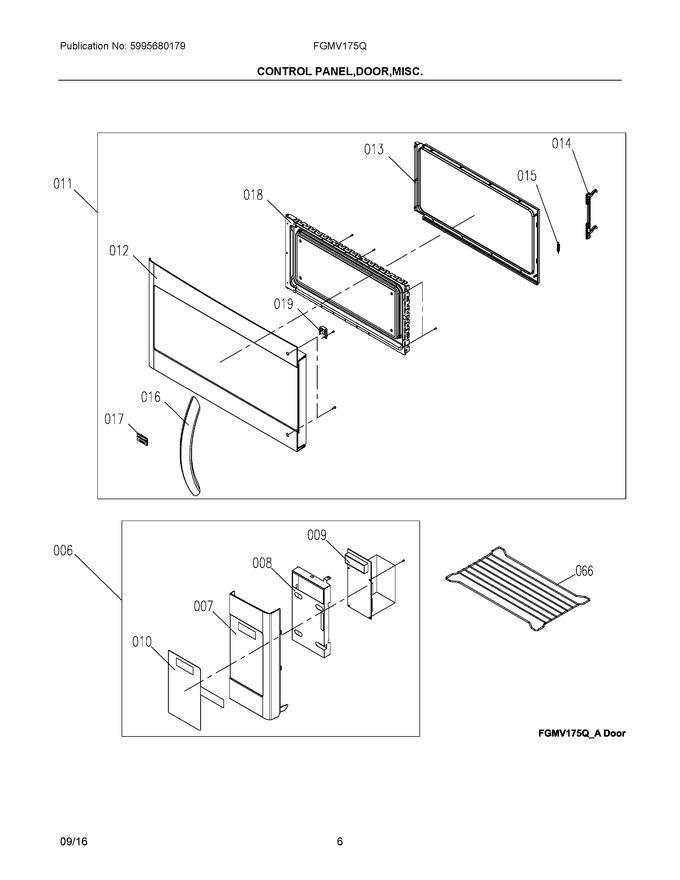

03 - Control Panel, Door, Misc
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 5304494847 | Control Assembly, White |
|
$ 526.37 | |||||
| 7 | 5304494850 | Control Panel, White |
|
- | |||||
| 8 | 5304494095 | Panel, Control Mount, Bracket |
|
- | |||||
| 9 | 5304506032 | Pc Board, Main, Control/power (Replaces: 5304494104) |
|
Immediately | $ 357.13 | ||||
| 10 | 5304494106 | Membrane, Touch Control |
|
- | |||||
| 11 | 5304494110 | Door Assembly, White |
|
$ 467.78 | |||||
| 12 | 5304494114 | Panel, Outer Door, White |
|
- | |||||
| 13 | 5304509640 | Choke Cover, Inner Door (Replaces: 5304464071) |
|
$ 50.61 | |||||
| 14 | 4056021605 | Latch, Door (Replaces: 5304477389) |
|
Immediately | $ 3.69 | ||||
| 15 | 5304521953 | Spring, Door Latch (Replaces: 5304464069) |
|
$ 7.23 | |||||
| 16 | 5304538966 | Handle Assembly, Door, White (Replaces: 5304481504) |
|
Immediately | $ 56.73 | ||||
| 17 | 5304494117 | Nameplate, Badge |
|
$ 42.05 | |||||
| 18 | 5304494119 | Panel, Inner Door, White |
|
- | |||||
| 19 | 5304481522 | Cover, Screw, White, Inner Door |
|
- | |||||
| 66 | 5304478927 | Shelf, Wire |
|
$ 85.05 |
