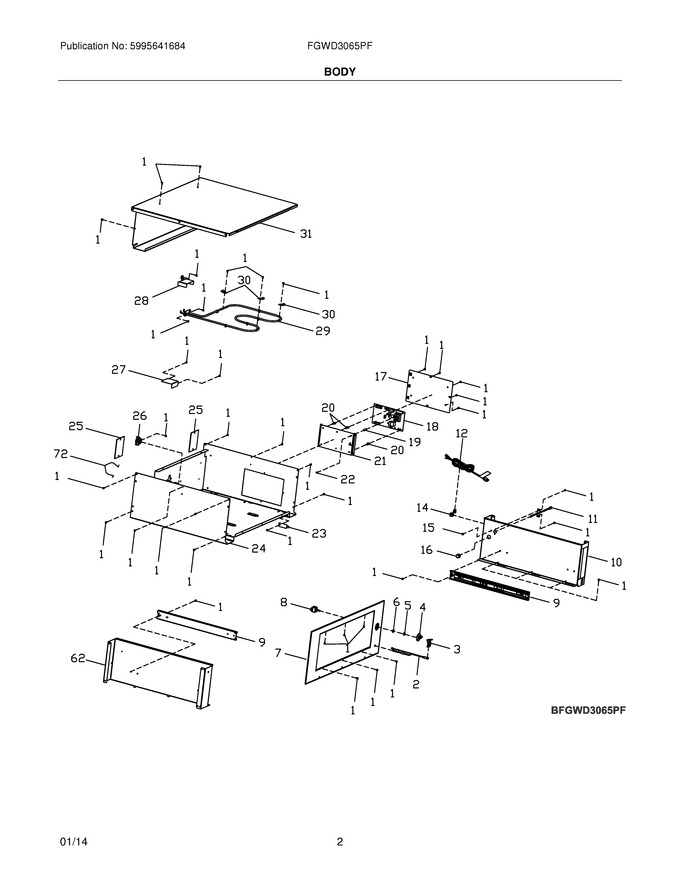

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	305309702		Screw,phil ,4.2 X 9.5 ,(55)		Appelez-nous	-
3	305611500		Clip,light		Appelez-nous	-
4	318280900		Knob,control,black		Appelez-nous	-
5	316247800		Washer,lock ,mtg				$ 18.20
6	316247700		Nut,mounting				$ 18.20
7	807221701		Control Panel,front		Appelez-nous	-
9	318248410		Channel,drawer Slide ,outer				$ 104.90
10	807221601		Shield,side Panel ,rh		Appelez-nous	-
14	305532205		Bushing,strain Relief		Appelez-nous	-
15	5303323140		Screw,ground   (Replaces: 305452800)		Appelez-nous	-
16	305494200		Bushing,cable		Appelez-nous	-
17	318310108		Panel,service		Appelez-nous	-
19	318293702		Spacer,control ,(2)				$ 16.22
20	305560900		Clip,control ,(4)		Appelez-nous	-
21	318310701		Bracket,mounting				$ 80.80
22	5304400427		Screw,6-20 X 1/2		Appelez-nous	-
23	318310110		Panel,cover		Appelez-nous	-
24	807319601		Wrapper,drawer		Appelez-nous	-
25	318388000		Bumper,absorber ,felt ,(2)		Appelez-nous	-
27	318399000		Shield,wire		Appelez-nous	-
28	807319701		Shield,element ,terminals		Appelez-nous	-
30	316095800		Clip,hold Down ,(3)				$ 9.93
31	318281508		Wrapper,upper		Appelez-nous	-
62	807221801		Shield,side Panel ,lh		Appelez-nous	-
72	202855101		Holder,cable				$ 1.42
F11	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F12	318144005		Cord,service				$ 23.99
F18	316518030		Board,timer ,es060				$ 264.39
F2	318250407		Light,indicator ,red				$ 57.17
F26	318005114		Thermostat,safety				$ 46.10
F29	318255301		Element,warmer Drawer				$ 105.42
F8	316418002		Control,potentiometer				$ 162.02
FNI	318532136		Harness,wiring ,main		Appelez-nous	-
FNI	318532137		Harness,wiring ,potentiometer		Appelez-nous	-
