SELECT A DIAGRAM

01 - Cover


03 - Body

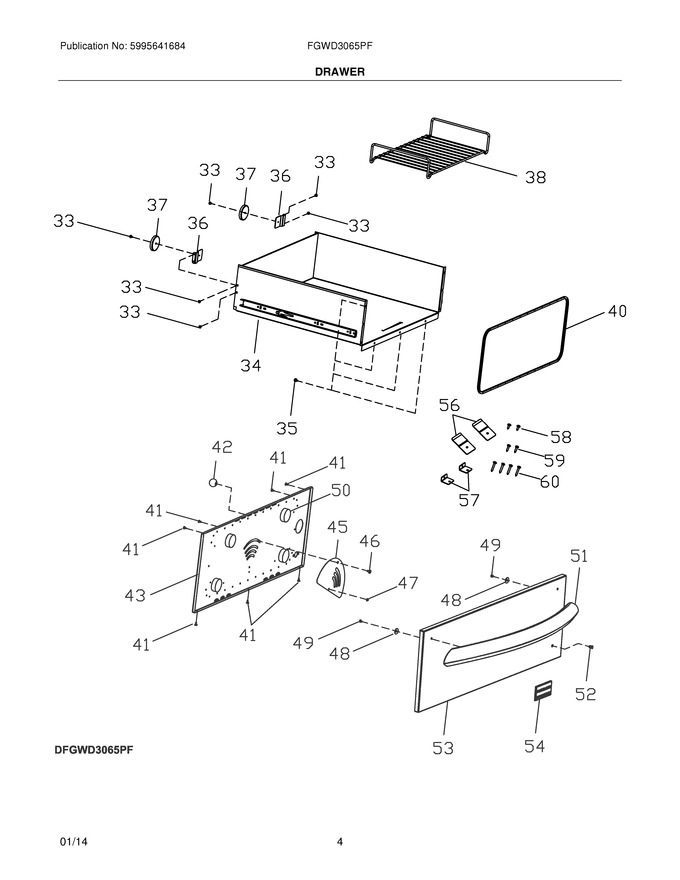

05 - Drawer


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
33	305338504		Screw,m4 X 5 Mm ,(6)		Appelez-nous	-
34	808248901		Drawer Assembly,w/glides				$ 455.81
35	5304415832		Screw,8-18 X 13/32`` ,(7)		Appelez-nous	-
36	808499901		Bracket,magnet Mtg. ,(2)		Appelez-nous	-
37	318373201		Magnet,drawer ,(2)				$ 5.99
38	807328301		Rack,warmer Drawer   (Replaces: 318345601)				$ 87.21
40	318254408		Gasket,warmer Drawer				$ 49.40
41	08016432		Screw,truss Head ,8-18 X 3/8`` ,(7)		Appelez-nous	-
42	318251100		Handle,control ,humidity		Appelez-nous	-
43	807517201		Liner,drawer Panel ,inner		Appelez-nous	-
45	807393601		Panel,humidity Cntl		Appelez-nous	-
46	5304443138		Screw,10-24 X 3/8		Appelez-nous	-
47	305616000		Rivet,humidity Panel		Appelez-nous	-
48	305338306		Washer,flat ,(2)		Appelez-nous	-
49	305615800		Screw,handle Mtg. ,10-24 X 3/8`` ,(2)		Appelez-nous	-
50	808561901		Bumper,drawer ,inner ,(4)		Appelez-nous	-
51	316554010		Handle,door/drawer ,stainless   (Replaces: 316554005)			Immediately	$ 168.44
52	318378201		Lens,light		Appelez-nous	-
53	808122301		Panel,drawer ,stainless ,outer		Appelez-nous	-
54	316572700		Nameplate				$ 81.50
56	318247403		Bracket,wall ,(2)		Appelez-nous	-
57	318262300		Bracket,front Support ,(2)				$ 32.45
58	305376108		Screw,st4.2 X 12.5 ,(2)		Appelez-nous	-
59	305376109		Screw,st4.8 X 19 ,(2)		Appelez-nous	-
60	305376110		Screw,st4.8 X 31.75 ,(4)		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51

    View Diagram in Separate Window       Print Part List
