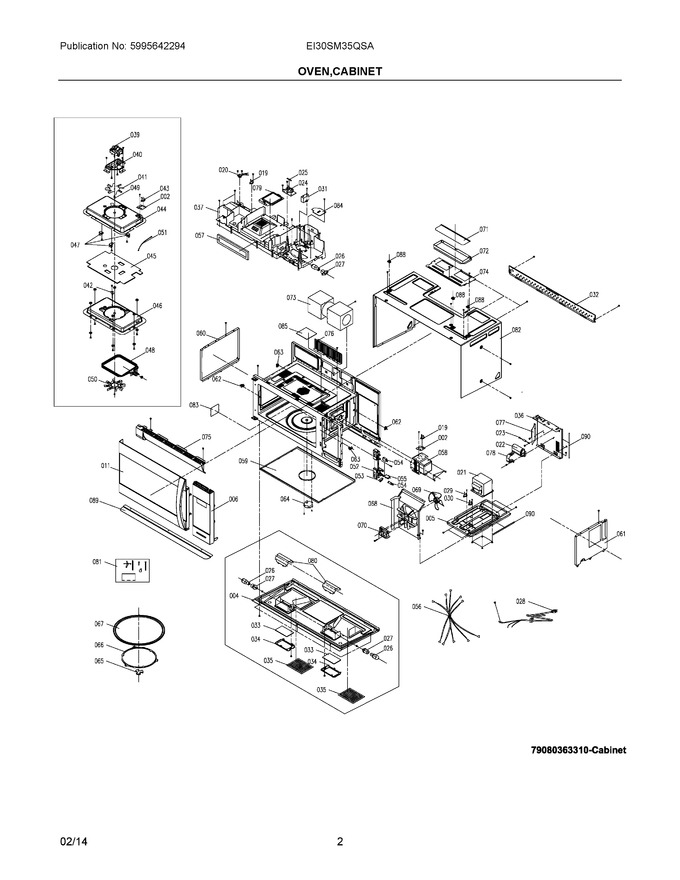

02 - Oven, Cabinet
03 - Control Panel, Door, Misc
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304472439 | Bracket, Thermostat |
|
$ 18.43 | |||||
| 4 | 5304481486 | Cover, Unit Base |
|
$ 241.29 | |||||
| 5 | 5304464063 | Base, Transformer, Right Side |
|
$ 103.01 | |||||
| 6 | 5304494004 | Control Assembly, Stainless |
|
- | |||||
| 11 | 5304494008 | Door Assembly, Stainless |
|
- | |||||
| 19 | 5304509469 | Thermostat (Replaces: 5304464073) |
|
Immediately | $ 21.78 | ||||
| 20 | 5304509652 | Sensor, Humidity (Replaces: 5304481519) |
|
$ 305.46 | |||||
| 21 | 5304515184 | Transformer, Power, Hv (Replaces: 5304464075) |
|
Immediately | $ 423.01 | ||||
| 22 | 5304509478 | Capacitor, High Voltage (Replaces: 5304491606) |
|
Immediately | $ 153.84 | ||||
| 23 | 5304509479 | Diode, High Voltage (Replaces: 5304464254) |
|
$ 28.30 | |||||
| 24 | 5304509452 | Filter, Noise, Electronic (Replaces: 5304472447) |
|
Immediately | $ 75.74 | ||||
| 25 | 5304509451 | Fuse (Replaces: 5304488359) |
|
Immediately | $ 13.01 | ||||
| 26 | 5304461116 | Lamp (Replaces: 5304464090) |
|
Immediately | $ 44.94 | ||||
| 27 | 5304464091 | Lampholder, Socket |
|
Immediately | $ 65.73 | ||||
| 28 | 5304512501 | Power Cord, Electric (Replaces: 5304464890) |
|
$ 106.27 | |||||
| 29 | 5304509474 | Thermostat, Cutout, Transformer (Replaces: 5304464093) |
|
Immediately | $ 20.97 | ||||
| 30 | 5304509475 | Thermostat, Cutout, Vent Motor (Replaces: 5304464094) |
|
Immediately | $ 19.52 | ||||
| 31 | 5304491512 | Capacitor, Start |
|
$ 91.67 | |||||
| 32 | 5304509487 | Plate, Mounting, Rear (Replaces: 5304488426) |
|
Immediately | $ 59.63 | ||||
| 33 | 5304464103 | Lens, Cooktop Lamp, Glass |
|
$ 39.53 | |||||
| 34 | 5304481505 | Frame, Lens Holder |
|
$ 70.13 | |||||
| 35 | 5304509444 | Filter, Grease, Washable (Replaces: 5304478913) |
|
Immediately | $ 83.17 | ||||
| 36 | 5304472451 | Duct, Hood Intake, Right Side |
|
- | |||||
| 37 | 5304491607 | Duct, Air, Main |
|
- | |||||
| 39 | 5304478915 | Motor, Convection Fan |
|
$ 262.24 | |||||
| 40 | 5304478916 | Bracket, Motor Mount |
|
- | |||||
| 41 | 5304514297 | Fan Blade, Cooling Fan (Replaces: 5304478917) |
|
$ 11.13 | |||||
| 42 | 5304478918 | Sensor, Temperature, Thermistor |
|
$ 104.18 | |||||
| 43 | 5304478919 | Thermostat, 160/95 *h |
|
$ 26.23 | |||||
| 44 | 5304491608 | Insulator, Heat |
|
- | |||||
| 45 | 5304480193 | Insulation, Fiberglass |
|
- | |||||
| 46 | 5304480194 | Cover, Heater |
|
- | |||||
| 47 | 5304480195 | Support, Heater |
|
- | |||||
| 48 | 5304480196 | Element, Heater, Convection |
|
$ 148.84 | |||||
| 49 | 5304480197 | Bushing, Motor Shaft |
|
- | |||||
| 50 | 5304478928 | Fan Blade, Convection |
|
- | |||||
| 51 | 5304480198 | Wire, Heater, Thermostat |
|
$ 19.85 | |||||
| 52 | 5304509457 | Latch Hook (Replaces: 5304464096) |
|
Immediately | $ 43.79 | ||||
| 53 | 5304509458 | Lever, Switch (Replaces: 5304464097) |
|
Immediately | $ 10.17 | ||||
| 54 | 5304509460 | Switch, Interlock (Replaces: 5304464099) |
|
Immediately | $ 45.27 | ||||
| 55 | 5304509459 | Switch, Monitor (Replaces: 5304464098) |
|
Immediately | $ 30.84 | ||||
| 56 | 5304491609 | Wiring Harness, Main |
|
- | |||||
| 57 | FRPAMRAF | Filter, Charcoal, 2" X 10 (Replaces: 5304464577) |
|
Immediately | $ 37.86 | ||||
| 58 | 5304519335 | Magnetron, High Voltage (Replaces: 5304472445) |
|
$ 354.20 | |||||
| 59 | 5304491610 | Insulator, Heat, Bottom |
|
- | |||||
| 60 | 5304491611 | Insulator, Heat, Left |
|
- | |||||
| 61 | 5304491612 | Insulator, Heat, Right |
|
- | |||||
| 62 | 5304509642 | Support, Shelf, A (Replaces: 5304478924) |
|
Immediately | $ 14.55 | ||||
| 63 | 5304509643 | Support, Shelf, B (Replaces: 5304478925) |
|
$ 13.83 | |||||
| 64 | 5304509440 | Motor, Turntable (Replaces: 5304464113) |
|
$ 118.13 | |||||
| 65 | 5304509622 | Coupler, Turntable/motor (Replaces: 5304472494) |
|
$ 21.02 | |||||
| 66 | 5304509438 | Support, Turntable Ring (Replaces: 5304464115) |
|
$ 52.20 | |||||
| 67 | 5304509621 | Turntable, Tray, Glass (Replaces: 5304464116) |
|
$ 154.61 | |||||
| 68 | 5304478920 | Duct, Cooling Fan |
|
$ 72.38 | |||||
| 69 | 5304509473 | Fan Blade, Cooling Fan (Replaces: 5304464257) |
|
$ 15.47 | |||||
| 70 | 5304464118 | Motor, Cooling Fan |
|
$ 193.40 | |||||
| 71 | 5304509486 | Damper, Door, Exhaust Adapter (Replaces: 5304464119) |
|
Immediately | $ 27.73 | ||||
| 72 | 5304509485 | Frame, Damper Housing, Exhaust Adapter (Replaces: 5304464120) |
|
Immediately | $ 25.32 | ||||
| 73 | 5304491613 | Motor, Hood/vent Fan |
|
$ 427.54 | |||||
| 74 | 5304472453 | Cover, Vent Motor |
|
$ 167.95 | |||||
| 75 | 5304538964 | Grille, Exhaust Vent, Black (Replaces: 5304491614) |
|
- | |||||
| 76 | 5304464256 | Cover, Control Shield, Right |
|
$ 64.16 | |||||
| 77 | 5304472454 | Vent, Air, Magnetron |
|
$ 62.79 | |||||
| 78 | 5304491616 | Retainer, Capacitor Strap |
|
- | |||||
| 79 | 5304464111 | Cover, Lamp, Oven Cavity |
|
- | |||||
| 80 | 5304464104 | Cover, Lamp |
|
$ 59.27 | |||||
| 81 | 5304491755 | Mounting Kit, With Templates |
|
$ 123.62 | |||||
| 82 | 5304472455 | Cabinet, Outer Casing, Black |
|
- | |||||
| 83 | 5304509435 | Cover, Waveguide (Replaces: 5304464061) |
|
Immediately | $ 13.74 | ||||
| 84 | 5304480205 | Baffle, Air Duct |
|
- | |||||
| 85 | 5304478923 | Lens, Cavity Lamp, Glass |
|
- | |||||
| 88 | 5304509436 | Mounting Nut Kit (Replaces: 5304488427) |
|
Immediately | $ 14.71 | ||||
| 89 | 5304491513 | Shield, Heat, Base Plate |
|
- | |||||
| 90 | 5304491603 | Cushion, Transformer, Noise Reducer |
|
- | |||||
| NI | 5304499876 | Screw Kit, All (Replaces: 5304488428) |
|
Immediately | $ 35.57 |
