SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven, Cabinet

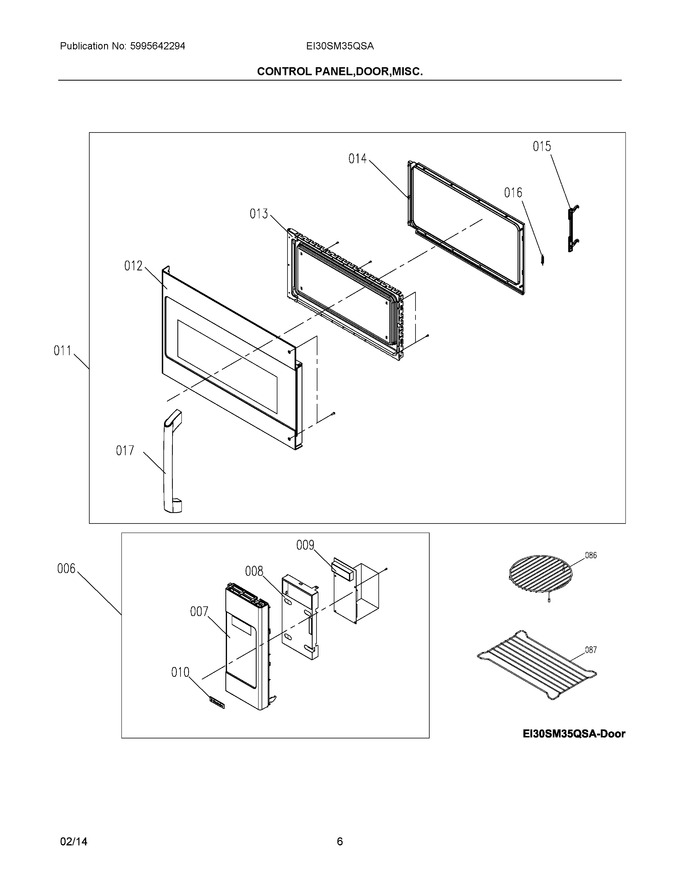

03 - Control Panel, Door, Misc


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5304494004		Control Assembly, Stainless		Appelez-nous	-
7	5304494005		Control Panel, Stainless		Appelez-nous	-
8	5304491569		Panel, Control Mount, Bracket		Appelez-nous	-
9	5304494006		Pc Board, Main, Control/power		Appelez-nous	-
10	5304494007		Nameplate, Badge, Stainless		Appelez-nous	-
11	5304494008		Door Assembly, Stainless		Appelez-nous	-
12	5304494009		Panel, Outer Door, Stainless		Appelez-nous	-
13	5304525104		Panel, Inner Door, Black   (Replaces: 5304478902)				$ 182.22
14	5304509640		Choke Cover, Inner Door   (Replaces: 5304464071)				$ 50.61
15	4056021605		Latch, Door   (Replaces: 5304477389)			Immediately	$ 3.69
16	5304521953		Spring, Door Latch   (Replaces: 5304464069)				$ 7.23
17	5304494010		Handle, Door, Stainless		Appelez-nous	-
86	5304478926		Rack, Round, Wire, 3-leg				$ 127.58
87	5304478927		Shelf, Wire				$ 85.05

    View Diagram in Separate Window       Print Part List
