SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Manifold Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)

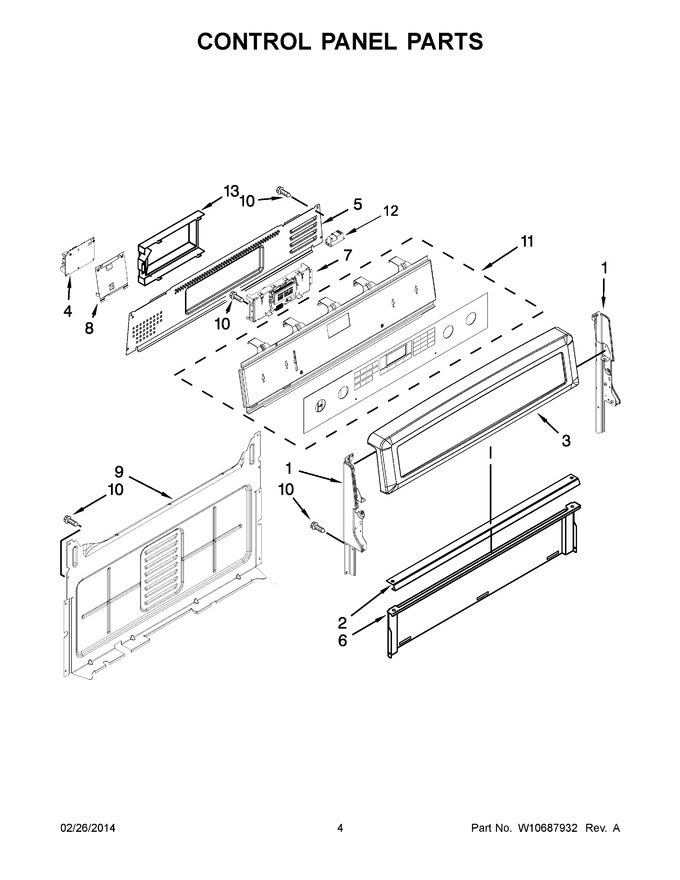

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white (left Hand))   (Replaces: W10184433)				$ 36.39
1	W11219664		Endcap (black (left Hand))   (Replaces: W10184437)				$ 131.85
1	W11219370		Endcap (white (right Hand))   (Replaces: W10184434)				$ 52.14
1	W11219665		Endcap (black (right Hand))   (Replaces: W10184438)				$ 36.40
2	W10516123		Bracket, Console Mounting		Appelez-nous	-
3	W10097310		Console (stainless)				$ 116.84
3	W10097270		Console (white)				$ 118.50
3	W10097280		Console (black)				$ 119.25
4	WPW10511278		Module, Spark Dsi   (Replaces: W10511278)			Immediately	$ 215.63
5	W10198745		Cover, Upper				$ 110.48
6	W10192841		Shield, Heat				$ 91.45
7	WPW10340325		Control, Mrc   (Replaces: W10340325)				$ 404.58
8	W10167573		Bracket, Gas		Appelez-nous	-
9	W10184251		Cover, Back		Appelez-nous	-
10	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
11	W10655875		Assembly, Active Overlay (stainless)				$ 328.35
11	W10655873		Assembly, Active Overlay (black)				$ 307.44
11	W10655871		Assembly, Active Overlay (white)		Appelez-nous	-
12	WPW10475149		Module, Spark (2+0 Filtered)   (Replaces: W10475149)			Immediately	$ 161.15
13	W10158780		Cover, Fan				$ 101.56

    View Diagram in Separate Window       Print Part List
