SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts

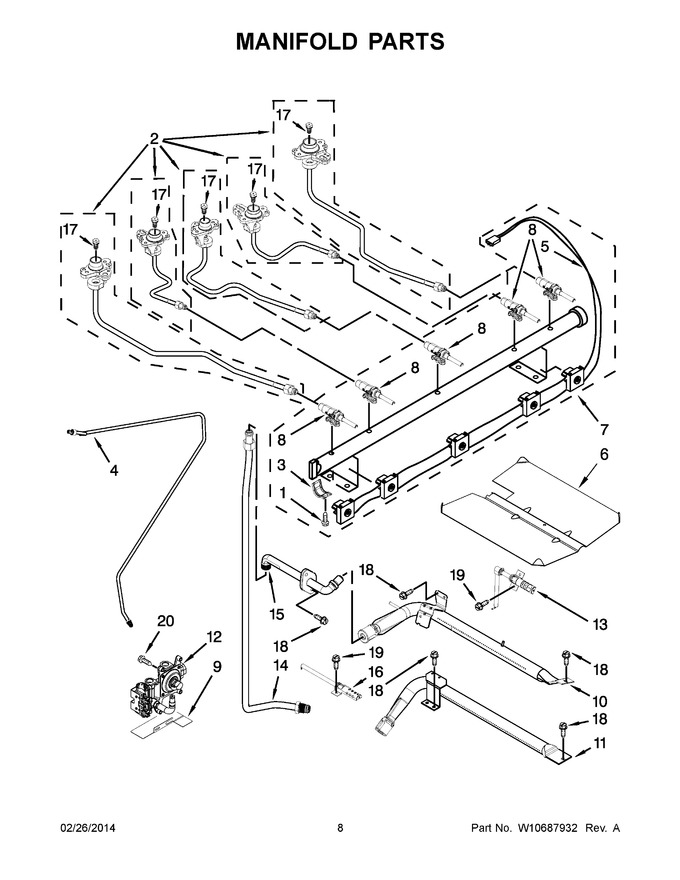

05 - Manifold Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 6.27
2	W11700294		Holder, Orifice (left Rear (9.5k))   (Replaces: W10473932)				$ 71.98
2	W10474152		Holder, Orifice (left Front (18k))				$ 62.15
2	W10474170		Holder, Orifice (center (8k))		Appelez-nous	-
2	W11700304		Holder, Orifice (right Rear (5k))   (Replaces: W10474162)				$ 69.53
2	W11234417		Holder, Orifice (right Front (15k))   (Replaces: W10474166)				$ 85.82
3	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 19.50
4	W10510125		Tubing, Main Supply				$ 187.42
5	W10413869		Harness, Igniter Includes Switches				$ 176.95
6	3601P336-45		Baffle, Broil Burner				$ 194.65
7	W10442082		Assembly, Manifold				$ 211.15
8	WPW10279614		Valve, Gas (9.5k) (left Rear And Center)   (Replaces: W10279614)				$ 239.84
8	W10442080		Valve Gas (18k) (left Front & Right Front)				$ 198.61
8	WPW10247744		Valve, Gas (5k) (right Rear)   (Replaces: W10247744)				$ 240.10
9	W10224921		Bracket - Aegis		Appelez-nous	-
10	W11676566		Burner, Broiler   (Replaces: W10439242)				$ 79.76
11	W10764654		Burner, Bake   (Replaces: W10439243)			Immediately	$ 78.56
12	WPW10602004		Valve, Gas Aegis   (Replaces: W10602004)				$ 355.89
13	WPW10324262		Igniter, Bake   (Replaces: W10324262)			Immediately	$ 93.58
14	W10306050		Tubing (broiler Fitting To Valve)				$ 162.70
15	W10583216		Fitting, Broiler   (Replaces: W10319134)				$ 82.16
16	WPW10333842		Electrode, Broil   (Replaces: W10333842)			Immediately	$ 77.23
17	W10347415		Orifice (18k) (left Front)				$ 81.18
17	WPW10170508		Orifice (9.5k) (left Rear)   (Replaces: W10170508)				$ 81.61
17	WPW10170506		Orifice (5k) (right Rear)   (Replaces: W10170506)				$ 83.87
17	WPW10347414		Orifice (15k) (right Front)   (Replaces: W10347414)				$ 77.57
17	WPW10170507		Orifice (8k) (center Rear)   (Replaces: W10170507)				$ 83.87
18	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
19	W11684507		Screw   (Replaces: 3196385)				$ 12.23
20	WP3400016		Screw   (Replaces: 3400016)				$ 7.16
NI	N/P		Following Parts Not Illustrated,		Appelez-nous	-
NI	WPW10170516		Lp Conversion Kit   (Replaces: W10170516)				$ 95.59

    View Diagram in Separate Window       Print Part List
