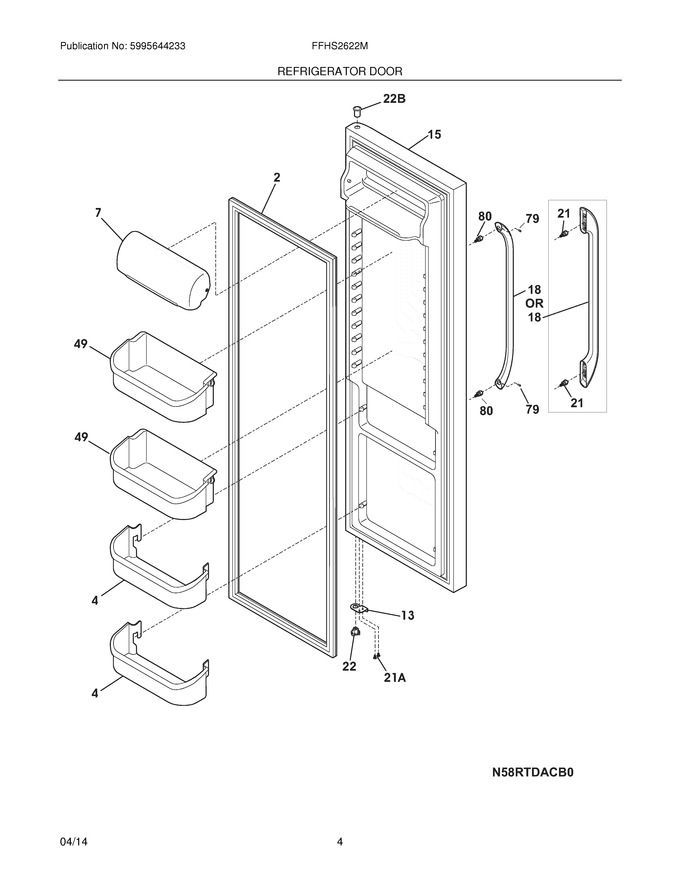

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240323001 | Bin-door,pseudo ,bottom |
|
Immediately | $ 42.81 | ||||
| 7 | 240326203 | Door-dairy |
|
$ 40.37 | |||||
| 13 | 241942603 | Door Stop,black ,ref |
|
$ 20.56 | |||||
| 15 | 242038846 | Door-refr,stainless ,complete Assy |
|
$ 726.44 | |||||
| 18 | 242059301 | Handle-door,stainless ,w/set Screws |
|
$ 219.03 | |||||
| 18 | 242059102 | Handle-door,black |
|
$ 88.69 | |||||
| 21 | 241695904 | Screw |
|
$ 14.41 | |||||
| 22 | 241990301 | Bearing-hinge,gray |
|
$ 7.09 | |||||
| 49 | 240356401 | Bin-door,gallon |
|
Immediately | $ 85.64 | ||||
| 79 | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 241760403 | Bearing,hinge ,top |
|
Immediately | $ 19.13 | ||||
| 22B | 241760404 | Bearing,hinge ,top |
|
$ 12.76 | |||||
| F1 | 241786014 | Freezer Door Gasket, Grey, Magnetic (Replaces: 241786006) |
|
$ 95.17 | |||||
| F2 | 241786005 | Refrigerator Door Gasket, Grey, Magnetic |
|
Immediately | $ 225.62 |
