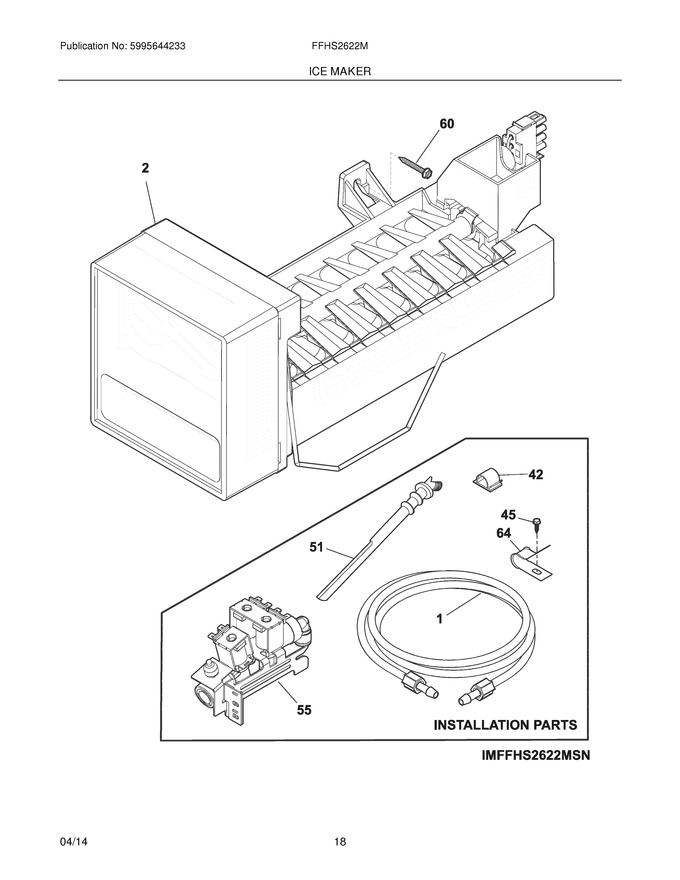

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976409 | Tube,water ,60`` ,natural ,door |
|
Immediately | $ 60.25 | ||||
| 2 | 241798231 | Ice Maker,radius Cube ,service ,115 V ,complete (Replaces: 241798201) |
|
Immediately | $ 200.97 | ||||
| 42 | 218515403 | Clip-grille |
|
$ 29.06 | |||||
| 45 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 51 | 241796405 | Tube-water Fill,extension |
|
$ 18.43 | |||||
| 60 | 5304455852 | Screw,hex Washer Head ,8-15a X 1.000 ,(2) (Replaces: 5303207328) |
|
$ 12.76 | |||||
| 64 | 5304455846 | Clamp,0.31 Id ,steel ,copper Wtr Line (Replaces: 5303001549) |
|
$ 10.63 | |||||
| F55 | 242252702 | Valve,solenoid ,triple |
|
Immediately | $ 132.71 | ||||
| NI | 5304456693 | Nut,m 3.5 |
|
$ 13.46 | |||||
| NI | 241798231 | Ice Maker,radius Cube ,115 V ,svce (Replaces: 241642501) |
|
Immediately | $ 200.97 | ||||
| NI | 241806601 | Connector-water,straight ,5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 5304456666 | Screw,m 3x20 No.2 ,(6) |
|
- | |||||
| NI | 5304456688 | Terminal |
|
- | |||||
| NI | 5304456692 | Washer |
|
- | |||||
| NI | 218976429 | Tube-water Inlet,5/16 - 97.50`` ,brown/tan |
|
$ 40.40 | |||||
| NI | 218976419 | Tube-water Inlet,5/16 - 34`` ,yellow ,valve To Door |
|
$ 22.68 | |||||
| NI | 241850615 | Tube-water Inlet,inlet Valve ,to I/m Inlet (Replaces: 218976915) |
|
$ 34.73 | |||||
| NI | 240561701 | Seal-water Inlet,inlet Valve ,to Ice Maker |
|
Immediately | $ 20.56 | ||||
| NI | 218709101 | Screw,hex Head ,10-32 X 0.500 |
|
$ 6.38 | |||||
| NI | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NI | 240542901 | Cap-water Valve |
|
$ 18.95 | |||||
| NI | 5304456689 | Washer (Replaces: 5304456737) |
|
$ 77.26 |
