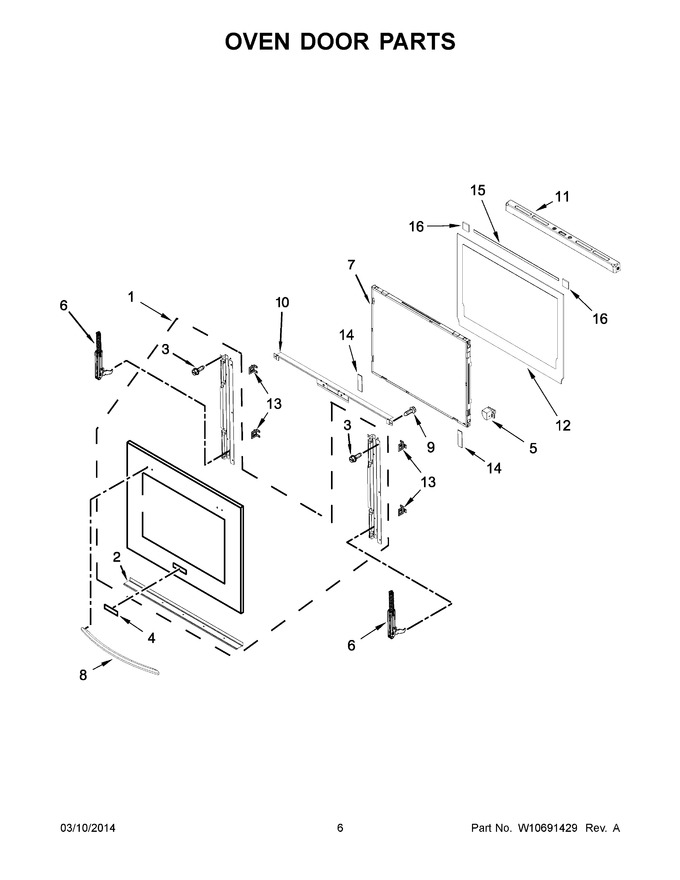

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10587565 | Assembly, Door Glass (white) |
|
- | |||||
| 1 | W10587563 | Assembly, Door Glass (stainless) |
|
- | |||||
| 1 | W10587564 | Assembly, Door Glass (black) |
|
- | |||||
| 2 | W10479069 | Bracket, Lower Door |
|
- | |||||
| 3 | WPY706189 | Screw (Replaces: 7101P653-60) |
|
Immediately | $ 6.47 | ||||
| 4 | WPW10243391 | Badge (grey) (Replaces: W10243391) |
|
$ 49.98 | |||||
| 4 | WPW10243392 | Badge (black) (Replaces: W10243392) |
|
$ 63.17 | |||||
| 4 | WPW10243393 | Badge (white) (Replaces: W10243393) |
|
$ 59.99 | |||||
| 5 | WPW10581826 | Bracket, Door (right) (Replaces: W10581826) |
|
$ 57.11 | |||||
| 5 | WPW10581831 | Bracket, Door (left) (Replaces: W10581831) |
|
$ 31.89 | |||||
| 6 | W11642291 | Hinge, Door (Replaces: W10419878) |
|
$ 71.35 | |||||
| 7 | W10347599 | Assembly, Window Pack |
|
$ 212.42 | |||||
| 8 | WPW10437675 | Handle, Door (stainless) (Replaces: W10437675) |
|
$ 173.66 | |||||
| 8 | W10284920 | Handle, Door (white) |
|
- | |||||
| 8 | W10284919 | Handle, Door (black) |
|
- | |||||
| 9 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 7.16 | ||||
| 10 | W10459352 | Bracket, Upper Glass |
|
$ 145.30 | |||||
| 11 | W10416258 | Vent, Door Top |
|
- | |||||
| 12 | WPW10335921 | Liner, Door (Replaces: W10335921) |
|
$ 354.53 | |||||
| 13 | WPW10549747 | Clip, Spring (Replaces: W10549747) |
|
$ 17.92 | |||||
| 14 | W10840861 | Spacer (Replaces: W10517440) |
|
$ 8.89 | |||||
| 15 | W10489274 | Pad, Vent |
|
$ 7.58 | |||||
| 16 | WPW10517428 | Spacer, Vent (Replaces: W10517428) |
|
Immediately | $ 10.67 |
