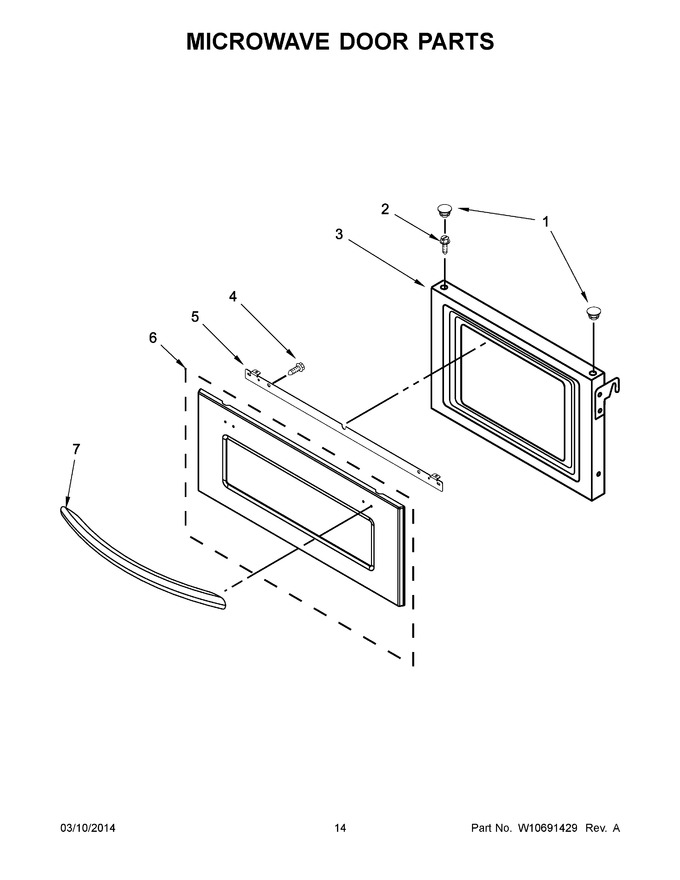

08 - Microwave Door Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 10.58
2	WP7101P246-60		Screw   (Replaces: W10143304)				$ 6.98
3	W10737653		Door, Inner   (Replaces: W10486171)				$ 353.00
4	WP8533988		Screw   (Replaces: 8533988)			Immediately	$ 7.16
5	W10359769		Foam, Handle				$ 12.65
6	W10583265		Assembly, Outer Door Glass (black)   (Replaces: W10361816)		Appelez-nous	-
6	W10583266		Assembly, Outer Door Glass (white)   (Replaces: W10361817)		Appelez-nous	-
6	W10361815		Assembly, Outer Door Glass (stainless)		Appelez-nous	-
7	W10284919		Handle, Door (black)		Appelez-nous	-
7	WPW10437675		Handle, Door (stainless)   (Replaces: W10437675)				$ 173.66
7	W10284920		Handle, Door (white)		Appelez-nous	-
