01 - Cover Sheet

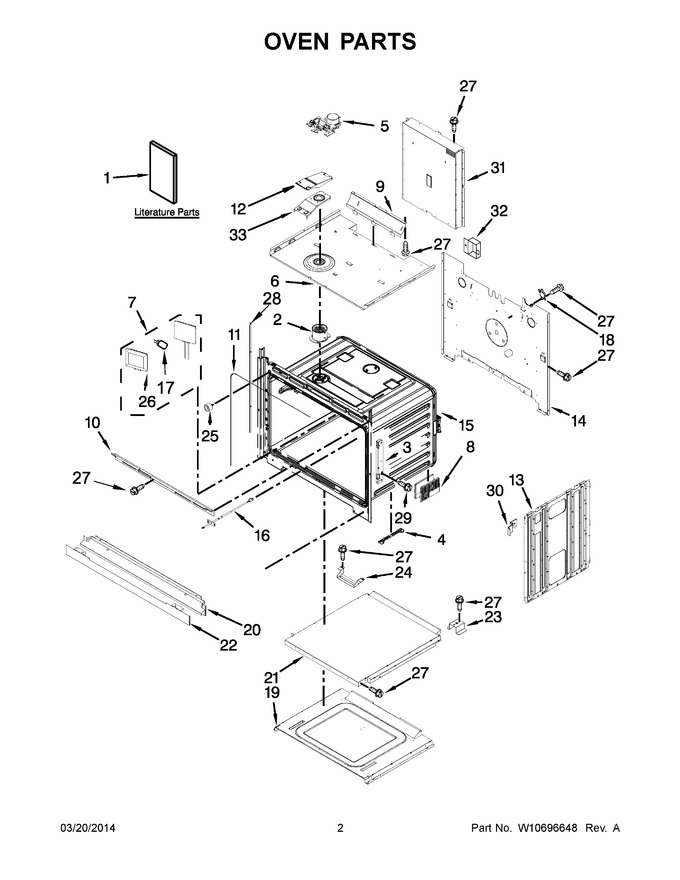

02 - Oven Parts
03 - Control Panel Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10516784 | Installation Instructions |
|
- | |||||
| 1 | W10351318 | Instructions, Undercounter Install |
|
- | |||||
| 1 | W10354193 | Use & Care Guide |
|
- | |||||
| 1 | W10492435 | Tech Sheet (english/french) |
|
- | |||||
| 1 | W10075750 | Installation Instructions (english/french) |
|
- | |||||
| 2 | W11240525 | Tube, Vent (Replaces: W10282946) |
|
$ 21.89 | |||||
| 3 | W11613828 | Receiver, Hinge (Replaces: W10282975) |
|
Immediately | $ 49.28 | ||||
| 4 | WPW10318220 | Spacer, Base (Replaces: W10318220) |
|
$ 22.94 | |||||
| 5 | W10883049 | Latch, Motorized (Replaces: W10314880) |
|
Immediately | $ 275.81 | ||||
| 6 | W10641573 | Top, Chassis |
|
- | |||||
| 7 | WPW10519866 | Assembly, Oven Light (Replaces: W10519866) |
|
$ 82.57 | |||||
| 8 | W10821321 | Foot, Base (Replaces: W10318219) |
|
$ 28.72 | |||||
| 9 | W10904163 | Deflector, Blower (Replaces: W10671661) |
|
Immediately | $ 145.53 | ||||
| 10 | W10283036 | Vent, Top 30`` |
|
$ 63.87 | |||||
| 11 | W11623080 | Gasket (Replaces: W10282960) |
|
Immediately | $ 65.12 | ||||
| 12 | W10616810 | Cover, Vent Exhaust |
|
$ 59.96 | |||||
| 13 | W10318190 | Side, Chassis |
|
$ 117.20 | |||||
| 14 | W10282990 | Back, Chassis |
|
- | |||||
| 15 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 16 | WP74008369 | Probe, Sensor (Replaces: 7430P043-60) |
|
Immediately | $ 119.65 | ||||
| 17 | WPW10472384 | Bulb, Light (Replaces: W10472384) |
|
Immediately | $ 83.23 | ||||
| 18 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 100.66 | ||||
| 19 | W11238787 | Base, Chassis (Replaces: W10282900) |
|
$ 299.70 | |||||
| 20 | WPW10351275 | Assembly, Bottom Vent (black) (Replaces: W10351275) |
|
$ 499.86 | |||||
| 20 | WPW10327374 | Assembly, Bottom Vent (stainless) (Replaces: W10327374) |
|
$ 297.24 | |||||
| 21 | WPW10283008 | Chassis, Bottom Duct (Replaces: W10283008) |
|
$ 188.61 | |||||
| 22 | WPW10351236 | Trim, Bottom Vent (black) (Replaces: W10351236) |
|
Immediately | $ 130.25 | ||||
| 22 | WPW10327377 | Trim, Bottom Vent (stainless) (Replaces: W10327377) |
|
$ 154.35 | |||||
| 23 | W10213759 | Support, Air Channel |
|
- | |||||
| 24 | W10351308 | Spacer, Chassis Bottom Duct |
|
$ 58.73 | |||||
| 25 | WPW10351278 | Bumper & Screw (Replaces: W10351278) |
|
$ 9.44 | |||||
| 26 | WPW10519866 | Lens, Light (Replaces: W10472386) |
|
$ 82.57 | |||||
| 27 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 28 | W10536160 | Trim, Side (black (left)) (Replaces: W10344481) |
|
Immediately | $ 36.11 | ||||
| 28 | W10536160 | Trim, Side (black (right)) (Replaces: W10344480) |
|
Immediately | $ 36.11 | ||||
| 29 | WPW10254050 | Screw (Replaces: W10254050) |
|
$ 7.30 | |||||
| 30 | W10347649 | Spacers, Front |
|
$ 12.87 | |||||
| 31 | W10318196 | Duct, Chassis Back Upper |
|
$ 187.62 | |||||
| 32 | W11819303 | Cover, Connector (Replaces: 8285593) |
|
- | |||||
| 33 | W10616809 | Base, Vent Exhaust |
|
$ 27.63 | |||||
| NI | N/P | Following Parts Not .illustrated |
|
- | |||||
| NI | W11688731 | Insulation, Wrap (Replaces: W10520715) |
|
$ 107.03 | |||||
| NI | W11684789 | Insulation, Cavity (Replaces: W10282944) |
|
$ 106.32 |
