View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Oven Parts

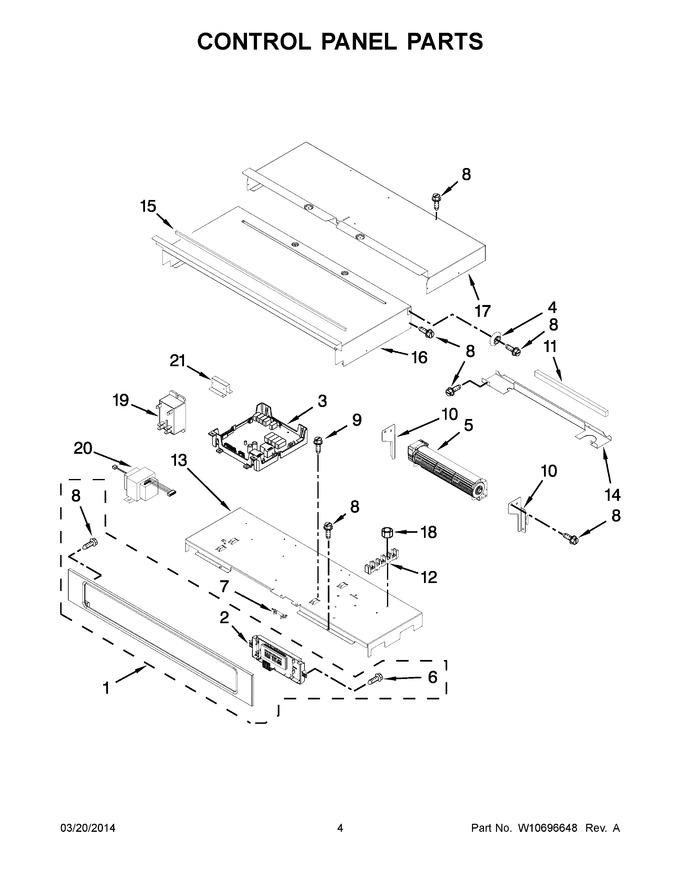

03 - Control Panel Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10365986 | Assembly, Control Panel (includes Overlay) (black) (Replaces: W10365986) |
|
$ 741.00 | |||||
| 1 | W10365985 | Assembly, Control Panel (includes Overlay) (stainless) |
|
- | |||||
| 2 | WPW10751146 | Board, Display (Replaces: W10590499) |
|
Immediately | $ 263.37 | ||||
| 3 | W10317343 | Board, Goc |
|
$ 372.16 | |||||
| 4 | W10363824 | Spacer, Lateral |
|
- | |||||
| 5 | W10641253 | Blower |
|
$ 127.63 | |||||
| 6 | WP12990527 | Screw (Replaces: 7101P403-60) |
|
Immediately | $ 7.15 | ||||
| 7 | WPW10545255 | Fuse, Thermal (Replaces: W10436434) |
|
Immediately | $ 25.12 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.26 | |||||
| 10 | W10283078 | Bracket, Blower Right |
|
- | |||||
| 10 | W10351257 | Bracket, Blower Left |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 6.98 | ||||
| 12 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 31.65 | ||||
| 13 | W10347650 | Tray, Electronic |
|
$ 108.07 | |||||
| 14 | W10509164 | Chassis, Divider Back |
|
- | |||||
| 15 | WPW10657548 | Gasket, Rubber (Replaces: W10657548) |
|
$ 76.85 | |||||
| 16 | W10318192 | Chassis, Cover Top Front 30`` |
|
$ 118.98 | |||||
| 17 | W10904156 | Chassis, Cover Top Back 30`` (Replaces: W10318194) |
|
- | |||||
| 18 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 6.47 | ||||
| 19 | WP9752759 | Relay (Replaces: 9752759) |
|
Immediately | $ 172.43 | ||||
| 20 | W10354052 | Transformer, Control |
|
$ 122.98 | |||||
| 21 | W10347585 | Bracket, Relay |
|
$ 14.27 |
