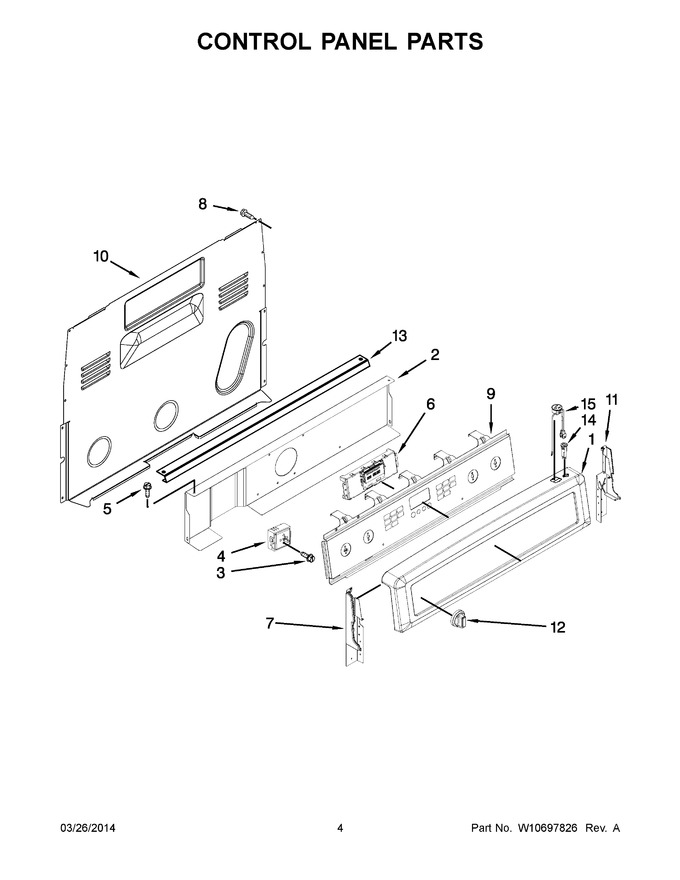

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10225557		Panel, Backguard (stainless)   (Replaces: W10225557)				$ 159.20
2	W10134247		Shield, Heat			Immediately	$ 307.56
3	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.47
4	WPW10411934		Switch, Infinite (right Front)   (Replaces: W10411934)			Immediately	$ 98.45
4	WPW10391743		Switch, Triple (left Front)   (Replaces: W10391743)			Immediately	$ 111.18
4	5500-287		Switch, Infinite (right Rear And Left Rear)   (Replaces: 3148951)			Immediately	$ 47.15
5	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 12.62
6	WPW10340324		Control Board   (Replaces: W10340324)			Immediately	$ 302.66
7	W11219664		Endcap (black (left Hand))   (Replaces: W10184437)				$ 131.85
8	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.47
9	W10655854		Active Overlay Assembly (stainless)				$ 298.22
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 187.75
11	W11219665		Endcap (black (right Hand))   (Replaces: W10184438)				$ 36.40
12	WPW10666901		Knob (stainless)   (Replaces: W10666901)				$ 133.67
13	W10525121		Bracket, Console Mounting				$ 84.73
14	WP9757602		Circuit Breaker (black)   (Replaces: 9757602)			Immediately	$ 48.43
15	W10861164		Receptacle (black)   (Replaces: W10203475)			Immediately	$ 16.62
