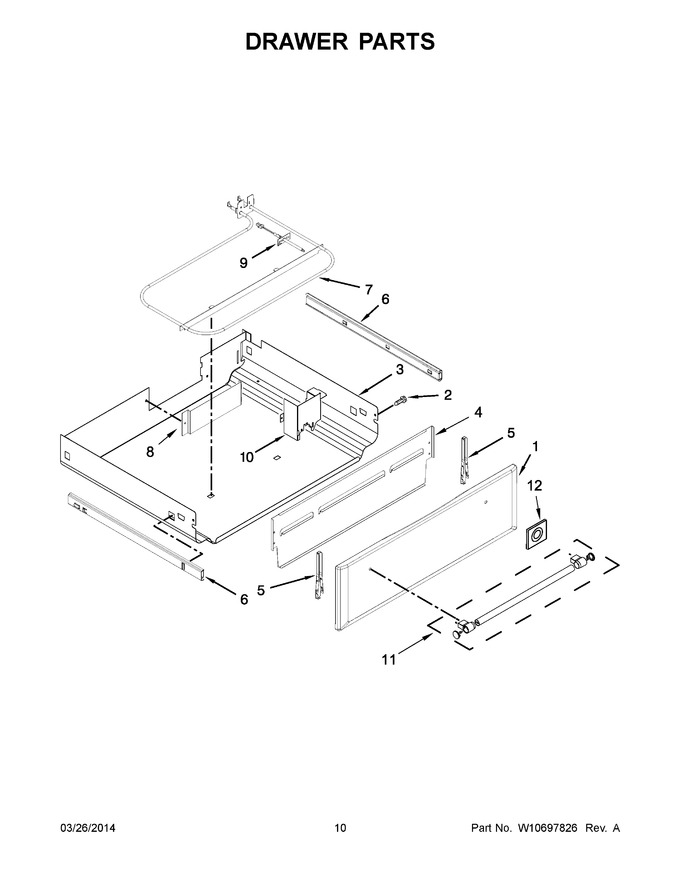

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10432480 | Panel, Drawer (stainless) (Replaces: W10432480) |
|
$ 207.85 | |||||
| 2 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 3 | W10634260 | Enclosure, Drawer (Replaces: W10106394) |
|
Immediately | $ 179.16 | ||||
| 4 | W10324878 | Panel, Inner |
|
- | |||||
| 5 | WPW10318027 | Bracket, Drawer (Replaces: W10318027) |
|
$ 103.00 | |||||
| 6 | WPW10441805 | Slide, Drawer Right (Replaces: W10441805) |
|
Immediately | $ 92.68 | ||||
| 6 | WPW10441804 | Slide, Drawer Left (Replaces: W10441804) |
|
Immediately | $ 92.75 | ||||
| 7 | WPW10323181 | Element, Warm (Replaces: W10323181) |
|
$ 113.21 | |||||
| 8 | W10325438 | Cover, Panel |
|
$ 134.56 | |||||
| 9 | WPW10131827 | Sensor, Oven (Replaces: W10131827) |
|
$ 236.21 | |||||
| 10 | W10634259 | Cover, Wire (Replaces: W10323358) |
|
$ 75.29 | |||||
| 11 | WPW10665831 | Handle, Assembly (stainless) (Replaces: W10665831) |
|
$ 201.17 | |||||
| 12 | W11190816 | Spacer, Handle (Replaces: 3823F017-45) |
|
$ 14.94 |
