01 - Cover


03 - Control Panel


05 - Microwave


07 - Lower Oven


09 - Doors


10 - Wiring Diagram


11 - Wiring Diagram

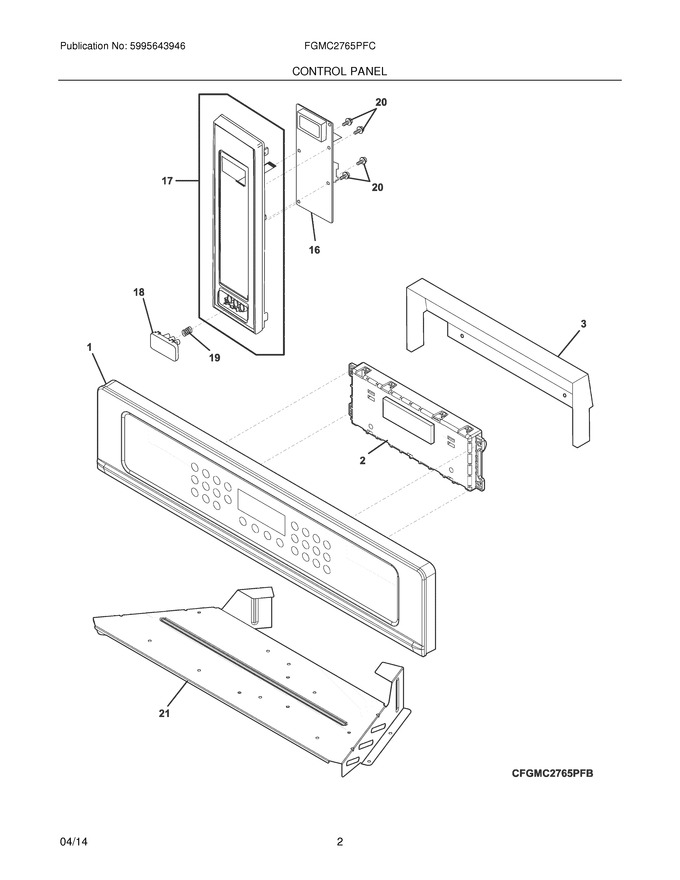

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	807586802		Deflector,timer		Appelez-nous	-
18	5304462915		Push Button,door ,stainless				$ 99.77
19	5304440831		Spring,door Button				$ 20.29
20	5304456930		Screw,3 Mm X 6 Mm		Appelez-nous	-
21	139028000		Bracket,mounting				$ 63.00
F1	139038826		Control Panel Assembly,steel/glass ,stainless/black		Appelez-nous	-
F16	5304474853		Control Board,assembly ,microwave				$ 396.16
F17	5304493447		Control Panel Assembly,stainless/black				$ 276.57
F2	316560183		Controller,electronic ,es530w6		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
