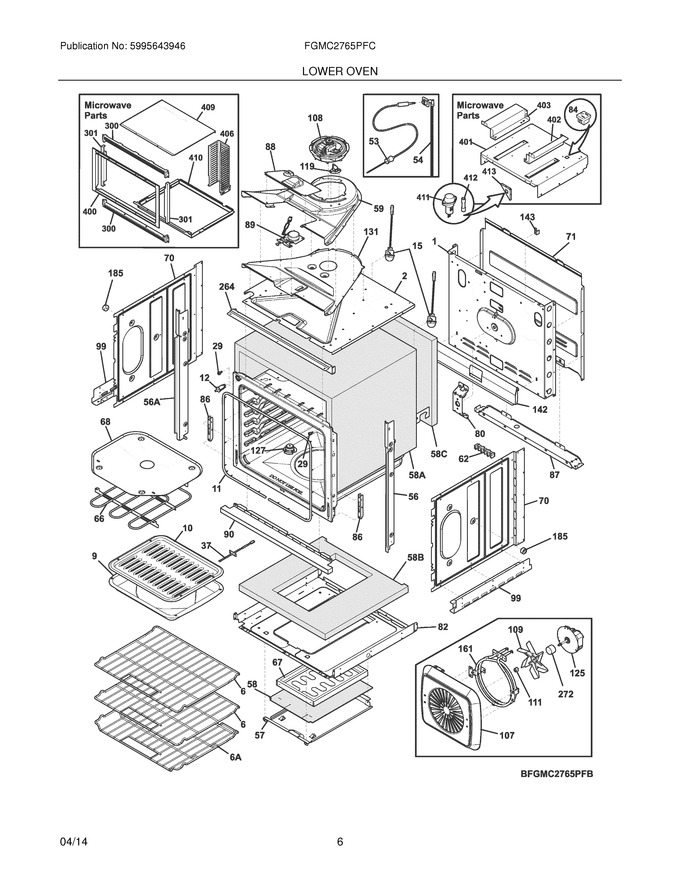

07 - Lower Oven


09 - Doors


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139003802		Panel,main Back		Appelez-nous	-
2	139027800		Shield,insulation ,top		Appelez-nous	-
6	139011901		Rack,oven ,w/handle   (Replaces: 139011700)				$ 36.24
9	318138801		Pan,broileroptional Access0ry		Appelez-nous	-
10	318126401		Insert,broiler Panoptional Access0ry		Appelez-nous	-
11	807545501		Seal,oven Door ,gray			Immediately	$ 81.39
29	316517600		Spacer,oven Door				$ 12.05
56	318276352		Trim,side Filler ,black ,rh		Appelez-nous	-
57	139021200		Panel,service ,bake Element				$ 32.31
58	139022100		Insualtion,bake Element		Appelez-nous	-
59	139027600		Duct,cooling Fan ,upper				$ 85.76
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
68	808807902		Shield,broil Element		Appelez-nous	-
70	139000601		Shield,insulation ,sides ,(2)   (Replaces: 139000600)				$ 72.05
71	139022000		Shield,rear Wire ,main Back		Appelez-nous	-
80	139021101		Bracket,support ,chassis/fan   (Replaces: 139021100)				$ 14.89
82	139003101		Shield,insulation ,lower				$ 91.01
86	318561100		Receptacle,hinge ,(2)				$ 21.23
87	139021900		Bracket,cable Mtg.		Appelez-nous	-
88	5304506964		Cover,latch Motor   (Replaces: 139027900)				$ 24.10
90	318259864		Trim,base ,stainless   (Replaces: 318259862)				$ 182.76
99	318256201		Bracket,side ,bottom ,(2)				$ 56.70
107	139013903		Cover,convection Fan				$ 46.86
109	318398302		Blade,fan ,convection   (Replaces: 139009100)			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
127	5304538693		Tube Assembly,vent ,w/catalyst   (Replaces: 139042600)			Immediately	$ 10.03
131	139027700		Duct,cooling Fan ,lower				$ 73.00
142	139021800		Shield,air Deflector ,main Back		Appelez-nous	-
143	318172904		Support,wire		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 12.76
264	139003501		Trim,vent ,black ,front				$ 36.20
272	139021700		Tube,convection Fan				$ 17.72
300	318925001		Trim,microwave Frame ,black ,top/bottom				$ 81.17
301	318925103		Trim,microwave Frame ,black ,sides ,(2)		Appelez-nous	-
400	318930303		Frame,microwave ,stainless		Appelez-nous	-
401	807051002		Plate,support ,27`` ,microwave		Appelez-nous	-
402	318276204		Bracket,base Pad ,rh		Appelez-nous	-
403	318276206		Bracket,base Pad ,lh		Appelez-nous	-
406	318277201		Shield,microwave Rear		Appelez-nous	-
409	318295301		Bracket,top Trim				$ 113.61
410	318297111		Flue,black				$ 165.17
413	807874501		Gusset,fuse Mtg.				$ 78.67
56A	318276353		Trim,side Filler ,black ,lh		Appelez-nous	-
58A	139001701		Insulation,oven Wrapper ,27`` ,top & Sides		Appelez-nous	-
58B	139021501		Insulation,oven Bottom				$ 31.19
58C	139021401		Insulation,oven Back		Appelez-nous	-
6A	139012500		Rack,oven ,offset ,w/handle				$ 88.72
F107	807597603		Screw,self Tapping ,8-18 X 11/32 ,(4)				$ 9.22
F108	318575612		Motor,cooling Fan			Immediately	$ 196.61
F119	318578506		Thermostat,cooling Fan ,105 Deg.			Immediately	$ 58.19
F12	316445501		Switch,oven Light ,door Frame				$ 90.01
F125	139008502		Motor,convection Fan				$ 139.48
F15	5304528790		Lamp Assembly,round ,halogen ,w/lens ,w/bulb   (Replaces: 139009000)			Immediately	$ 20.56
F161	8581390065036		Element,convection ,2500w   (Replaces: 139006500)				$ 47.63
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F400	5303131766		Screw,6-32 X 0.375 ,top Trim				$ 10.87
F411	318647300		Holder,fuse   (Replaces: 318576200)			Immediately	$ 217.73
F411	5304453707		Screw,8-18 X 1/2			Immediately	$ 15.92
F412	318647300		Fuse,20 Amp   (Replaces: 318576100)			Immediately	$ 217.73
F53	5304504202		Probe,meat Temp ,red   (Replaces: 318601303)			Immediately	$ 106.19
F54	139017203		Receptacle Assy,meat Probe   (Replaces: 139017200)			Immediately	$ 153.09
F66	5304523477		Element,broil ,6 Pass ,3400w   (Replaces: 139028200)				$ 235.85
F67	318902502		Element,hidden Bake ,1450w			Immediately	$ 205.21
F84	5304517286		Outlet,electrical ,miniature ,black   (Replaces: 807033001)				$ 91.01
F89	139021302		Motor,latch Assy. ,2 Pole				$ 147.56
FNI	318946500		Bulb,halogen ,g9 ,25w ,120v			Immediately	$ 60.44
FNI	5304490877		Harness,wiring ,main				$ 147.88
FNI	318231870		Wiring Harness,bake Element				$ 83.42
FNI	5304506955		Box & Wires Assy   (Replaces: 318394443)				$ 174.43
FNI	807448002		Harness,wiring ,latch Motor		Appelez-nous	-
FNI	316303501		Harness Assembly,filter ,electrical ,w/capacitors				$ 84.91
NI	240442708		Screw,10-32 X 3/4 ,(4)   (Replaces: 5304400794)				$ 8.34
NI	318579001		Bracket,wire				$ 11.08
NI	5304470882		· Screw,anti-tip ,8 - 5/8 ,black ,(2)				$ 13.46
NI	318165800		Spacer				$ 17.72
NI	5303289910		Screw,truss Sqdr ,8a X 1``				$ 5.67
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 11.34
NI	316533900		Screw,truss Hd ,8-16 X 1.5 ,(8)				$ 12.02
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	5303288566		Screw,8 X 1/4 ,(4)   (Replaces: 5303323130)				$ 2.12
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
