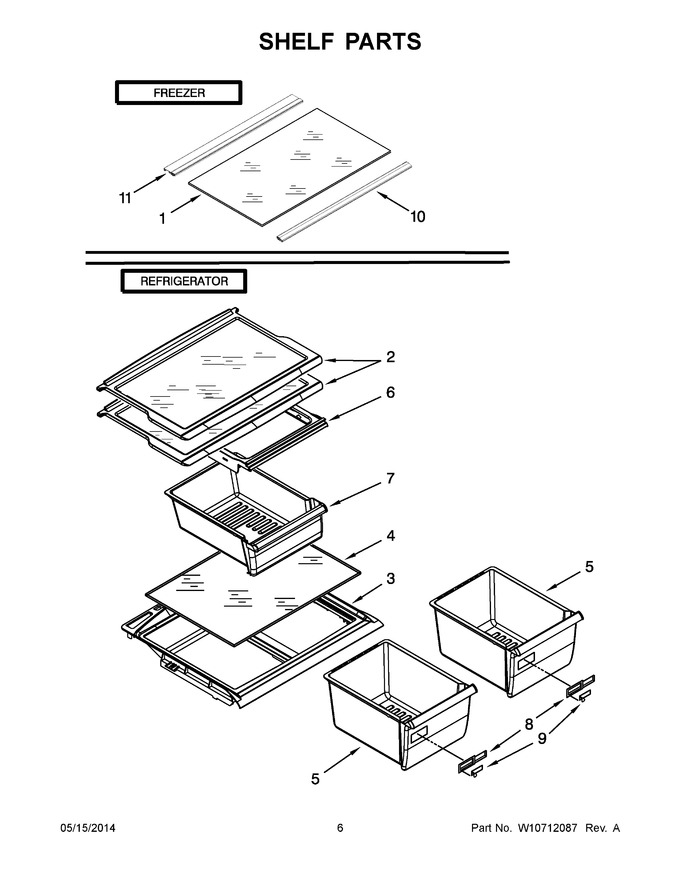

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10283872 | Shelf, Glass (Replaces: W10283872) |
|
$ 181.17 | |||||
| 2 | W11314798 | Assembly, Shelf (Replaces: 2263643) |
|
Immediately | $ 215.41 | ||||
| 3 | WP2222031 | Cover, Crisper (Replaces: 2222031) |
|
Immediately | $ 223.07 | ||||
| 4 | WP2262441 | Glass, Crisper Cover (Replaces: 2262441) |
|
Immediately | $ 199.65 | ||||
| 5 | WP2256704 | Pan, Crisper (Replaces: 2256704) |
|
Immediately | $ 127.50 | ||||
| 6 | WP2256601 | Holder, Meat Pan (Replaces: 2256601) |
|
$ 154.47 | |||||
| 7 | WP2261934 | Pan, Meat (Replaces: 2261934) |
|
Immediately | $ 129.59 | ||||
| 8 | W11819839 | Body, Humidity Control (Replaces: 2212446) |
|
$ 13.55 | |||||
| 9 | WP2176222 | Slide, Humidity Control (Replaces: 2176222) |
|
$ 27.35 | |||||
| 10 | W10272379 | Trim, Shelf (front) |
|
Immediately | $ 120.21 | ||||
| 11 | W10272382 | Trim, Shelf (rear) |
|
$ 157.55 |
