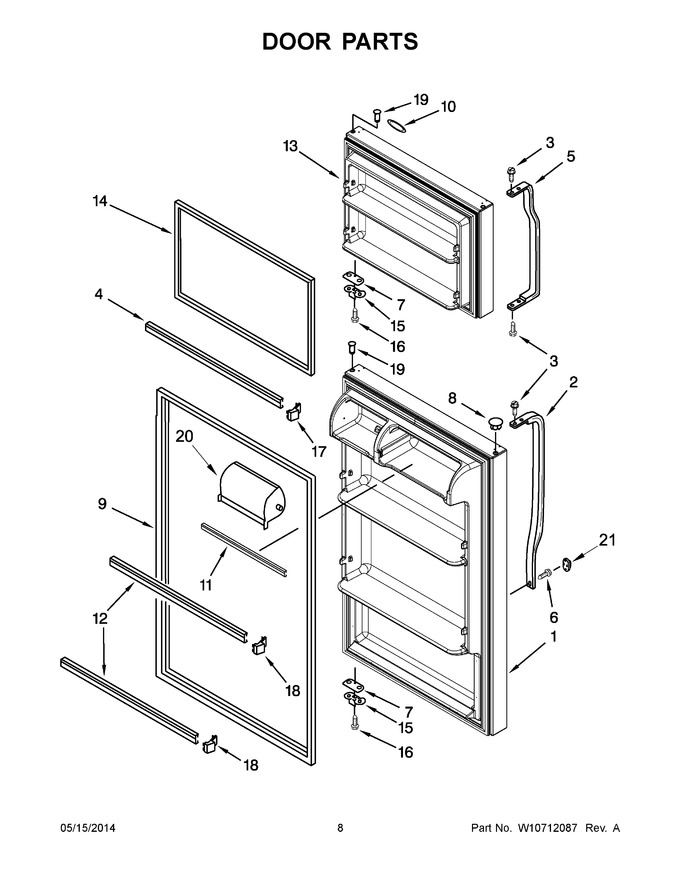

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10287760		Refrigerator Door Assembly (includes Illus. 9) (white)				$ 585.30
2	WP2221946W		Handle, Rc (white)   (Replaces: 2221946W)			Immediately	$ 117.10
3	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.47
4	WP2266727		Trim, Door   (Replaces: 2266727)			Immediately	$ 83.25
5	WP2202098		Handle, Fc (white)   (Replaces: 2202098)				$ 134.42
6	WP8281206		Screw   (Replaces: 8281206)				$ 7.15
7	WP2258681W		Shim, Door Stop (white)   (Replaces: 2258681W)			Immediately	$ 6.47
8	WP2212648		Hole Plug (white)   (Replaces: 2212648)				$ 7.02
9	WP2319265T		Door Gasket (beige)   (Replaces: W10190033)			Immediately	$ 166.40
10	2325418		Nameplate (silver)				$ 44.68
11	W11129820		Trim, Door   (Replaces: W10234242)			Immediately	$ 109.15
12	WP2266738		Trim, Door   (Replaces: 2266738)				$ 100.52
13	W10287763		Freezer Door Assembly (includes Illus. 14) (white)				$ 469.99
14	WP2319263T		Door Gasket (beige)   (Replaces: W10190031)			Immediately	$ 152.58
15	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
16	W10276642		Screw   (Replaces: 8533904)				$ 5.49
17	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 11.36
18	WP2195916K		Cap, Door Trim End   (Replaces: 2195916)			Immediately	$ 11.30
19	WP2183003		Thimble   (Replaces: 2262054)				$ 6.98
20	WP2207942		Door, Compartment   (Replaces: 2207942)			Immediately	$ 52.88
21	WP2202819W		Cover, Screw (white)   (Replaces: 2202819W)			Immediately	$ 6.98
