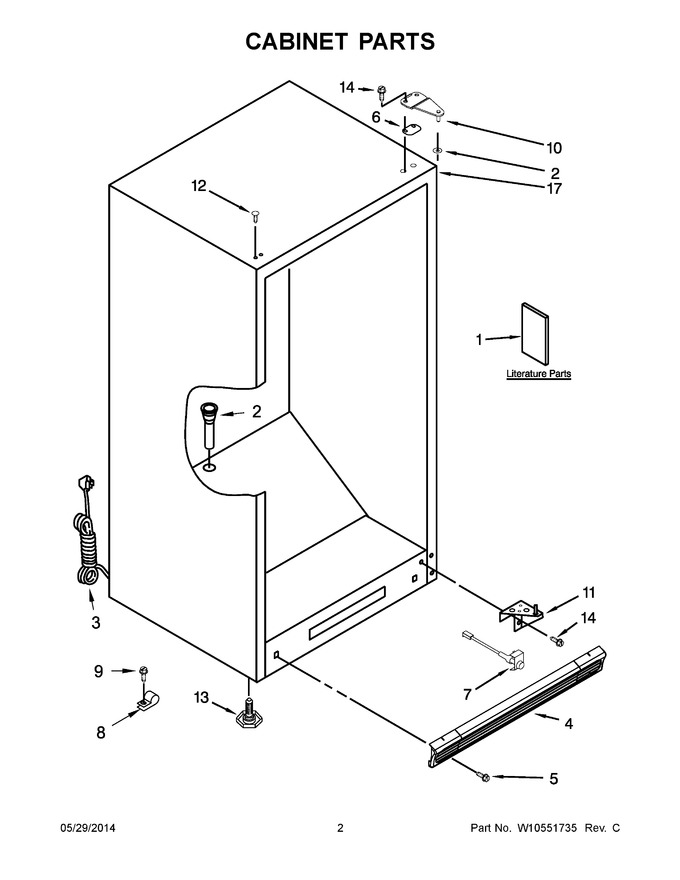

02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10326808 | Energy Label/tag |
|
- | |||||
| 1 | W10326799 | Owners Manual |
|
- | |||||
| 2 | 3-60696-001 | Grommet, Drain |
|
$ 32.33 | |||||
| 3 | 4-82399-001 | Cord, Power |
|
$ 52.24 | |||||
| 4 | 4-60461-002 | Trim, Toe Kick (white) |
|
$ 43.83 | |||||
| 5 | WP489478 | Screw (Replaces: 3-24004-107) |
|
$ 6.98 | |||||
| 6 | 4390489 | Shim (Replaces: 2-81312) |
|
$ 6.26 | |||||
| 7 | 3-82130-001 | Assembly, Power Warning Light Bracket |
|
$ 76.33 | |||||
| 8 | 3-25095-011 | Clamp, Tube |
|
- | |||||
| 9 | WP489478 | Screw (Replaces: 3-80675-105) |
|
$ 6.98 | |||||
| 10 | 2-81016-105 | Hinge, Top Fc (white) |
|
$ 37.06 | |||||
| 11 | 4-82693-002 | Hinge, Bottom |
|
$ 72.12 | |||||
| 12 | WP2189000 | Plug, Door (Replaces: 1-60121-001) |
|
Immediately | $ 6.66 | ||||
| 13 | WP3-82710-001 | Leg, Leveler (black) (Replaces: 3-82710-001) |
|
Immediately | $ 18.29 | ||||
| 14 | WP8204624 | Screw (Replaces: 1-80271-103) |
|
$ 14.99 | |||||
| 15 | N/P | Cabinet (not A Serviceable Part) |
|
- |
