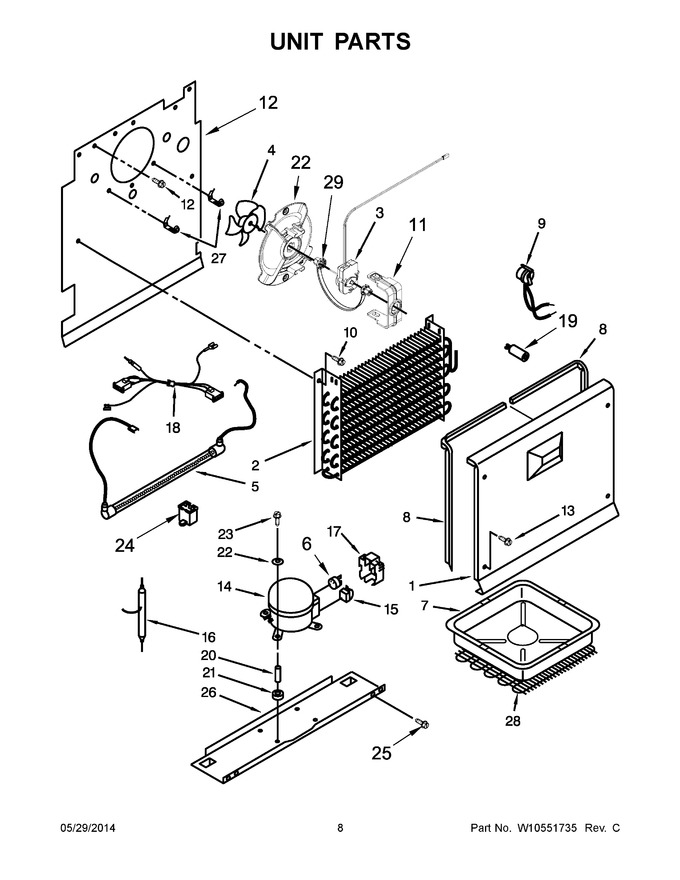

05 - Unit Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10452370		Cover, Evaporator				$ 237.73
2	W10455861		Evaporator				$ 257.12
3	W11780227		Motor, Fan   (Replaces: W10236142)			Immediately	$ 127.80
4	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 39.07
5	WPW10486820		Heater, Defrost   (Replaces: W10419550)				$ 202.30
6	WP2183456		Protector, Overload   (Replaces: 2-34286-037)				$ 126.16
7	4-82674-001		Pan, Drain		Appelez-nous	-
8	4390663		Gasket, Cover Evaporator (right Side)   (Replaces: 3-60180-001)				$ 215.10
8	3-60180-002		Gasket, Cover Evaporator (left Side)				$ 24.93
9	WPW10491891		Bi-metal, Defrost   (Replaces: W10491891)				$ 85.05
10	60001022		Screw   (Replaces: 3-80732-004)				$ 56.93
11	13058002		Clip, Evaporator Motor				$ 12.66
12	W10452115		Plate, Evaporator Mounting				$ 225.55
13	W10451793		Screw		Appelez-nous	-
14	W10309994		Compressor   (Replaces: 4-32972-143)			Immediately	$ 551.61
15	WPW10466655		Relay, Start   (Replaces: W10466655)				$ 115.81
16	4007A		Drier   (Replaces: 3-34960-001)			Immediately	$ 13.55
17	W10393770		Cover   (Replaces: 3-35171-003)				$ 98.67
18	W10507269		Harness, Fan				$ 102.38
19	3-23995-014		Plastic, Grommet		Appelez-nous	-
21	1-32965		Grommet		Appelez-nous	-
22	W10457575		Shroud, Evaporator Motor				$ 25.70
23	8210220		Bolt, Compressor   (Replaces: 2-82082-001)		Appelez-nous	-
24	3-35956-013		Capacitor				$ 103.82
25	WP3-24838-048		Screw   (Replaces: 3-24838-048)				$ 7.00
26	WPW10470133		Pan, Compressor Mounting   (Replaces: W10470133)				$ 87.25
27	10623002		Clip, Evaporator				$ 10.38
28	W10451951		Condenser				$ 257.77
29	W11690160		Grommet, Fan Motor   (Replaces: W10150583)				$ 7.12
NI	N/P		Refrigerant Charge 6.2 Oz. (r-134a)		Appelez-nous	-
