SELECT A DIAGRAM

01 - Cover Sheet

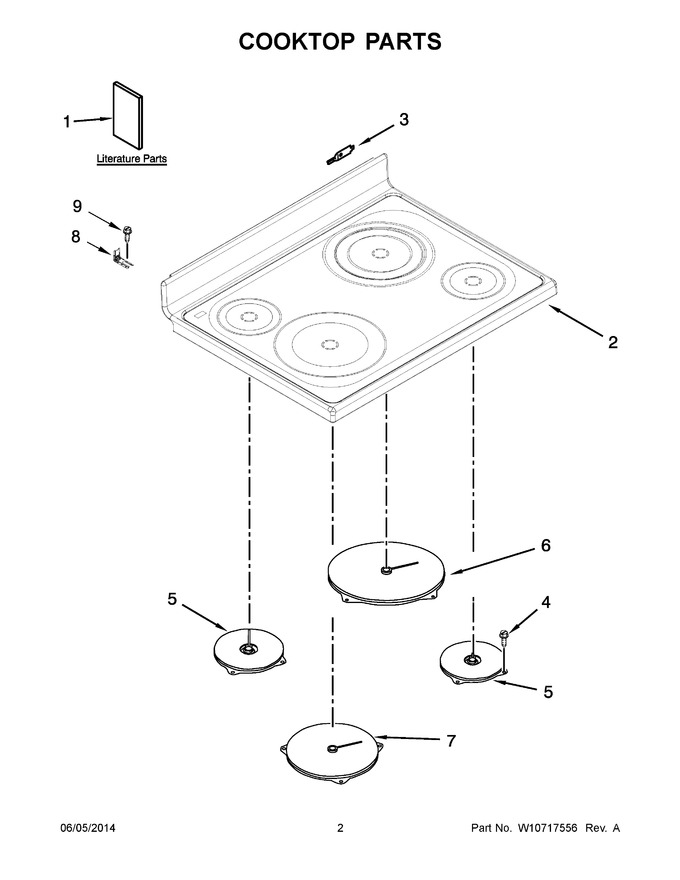

02 - Cooktop Parts


03 - Interior Parts


04 - Control Panel Parts


05 - Chassis Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403812		Instructions, Installation		Appelez-nous	-
2	W10401392		Cooktop (black)		Appelez-nous	-
3	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 11.30
4	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
5	WPW10410580		Hotplate (right Front And Left Rear)   (Replaces: W10410580)				$ 219.30
6	WPW10410579		Hotplate (right Rear)   (Replaces: W10410579)				$ 231.72
7	WPW10410578		Hotplate (left Front)   (Replaces: W10410578)				$ 277.41
8	W11447673		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.64
9	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 26.33
1A	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1B	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1C	W10524729		Use And Care Guide		Appelez-nous	-
1D	W10509193		Tech Sheet, English		Appelez-nous	-
1E	W10509194		Tech Sheet, French		Appelez-nous	-
1F	W10400064		Guide, Quick Start (english)		Appelez-nous	-
1G	W10400065		Guide, Quick Start (french)		Appelez-nous	-
NI	WP4159193		Screw, Ground   (Replaces: 7101P027-60)				$ 4.29
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10629310		Harness, Main				$ 120.33
NI	W10349694		Harness, Cooktop				$ 105.99
NI	W10349733		Harness, Sensor				$ 116.29
NI	W10324946		Harness, Wire (drawer)				$ 24.89
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 76.28
NI	W11226497		Cord, Power   (Replaces: W10233363)			Immediately	$ 65.69

    View Diagram in Separate Window       Print Part List
