01 - Cover Sheet
02 - Cooktop Parts
03 - Interior Parts

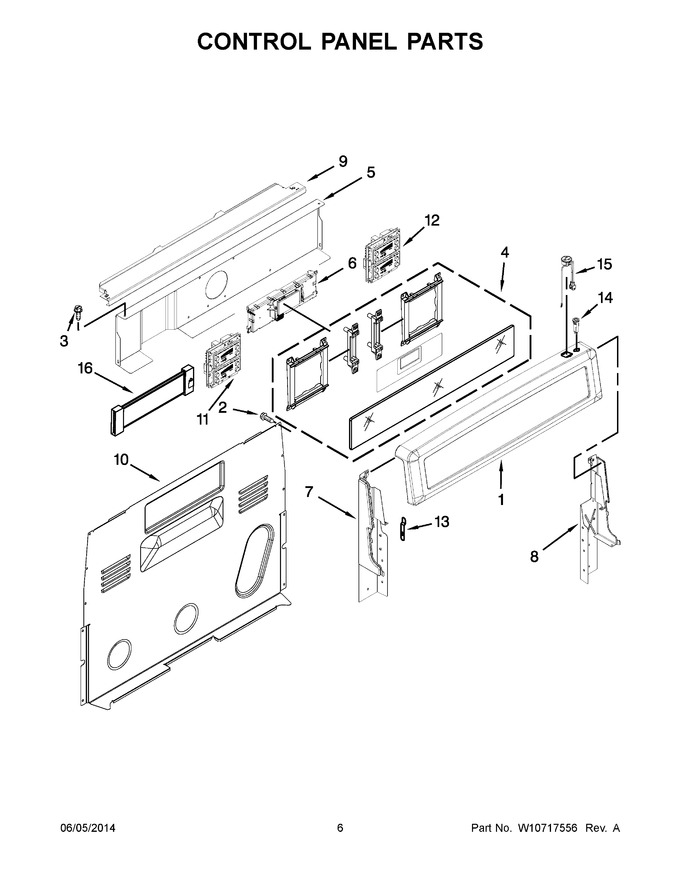

04 - Control Panel Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10347963 | Panel, Backguard (stainless) |
|
- | |||||
| 2 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 12.65 | ||||
| 3 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| 4 | WPW10726780 | Active Overlay Assembly (stainless) (Replaces: W10324413) |
|
$ 731.60 | |||||
| 5 | W10134247 | Shield, Heat |
|
Immediately | $ 307.56 | ||||
| 6 | WPW10686475 | Control, Board Mrc2 (Replaces: W10686475) |
|
Immediately | $ 328.90 | ||||
| 7 | W11404310 | Endcap (black (left Hand)) (Replaces: W10409002) |
|
$ 66.00 | |||||
| 8 | W10409003 | Endcap (black (right Hand)) |
|
$ 72.08 | |||||
| 9 | W10525121 | Bracket, Console Mounting |
|
$ 84.73 | |||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 187.75 | |||||
| 11 | WPW10341840 | Control, Ego Left (Replaces: W10341840) |
|
$ 494.48 | |||||
| 12 | WPW10553763 | Control, Ego Right (Replaces: W10553763) |
|
$ 754.06 | |||||
| 13 | 3196200 | Clip, Spring |
|
$ 8.96 | |||||
| 14 | WP9757602 | Circuit Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 48.43 | ||||
| 15 | W10861164 | Receptacle (black) (Replaces: W10488078) |
|
Immediately | $ 16.62 | ||||
| 16 | WPW10318787 | Connector, Flex (Replaces: W10318787) |
|
$ 102.81 |
