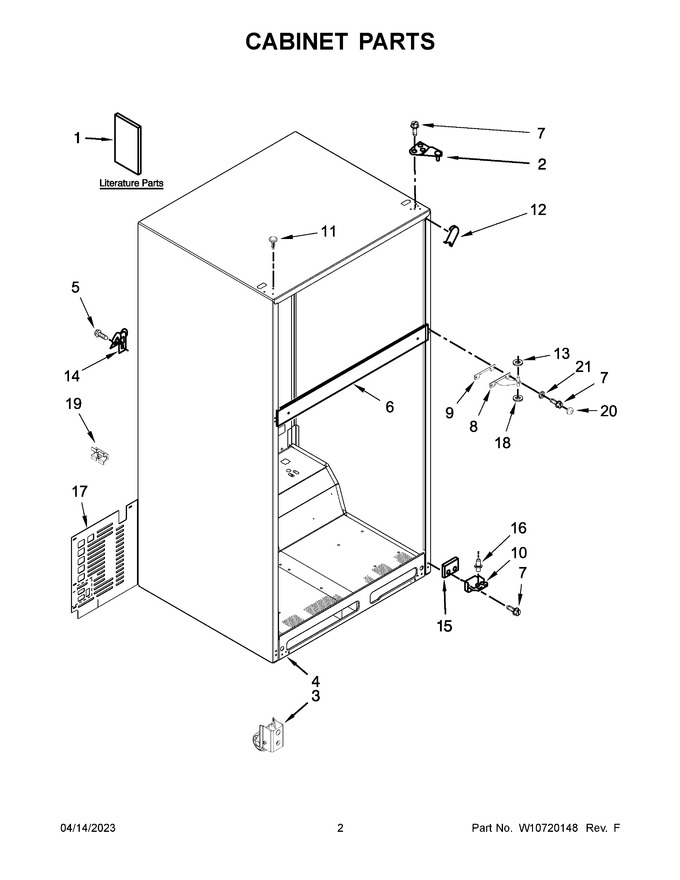

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10652633 | Tech Sheet |
|
- | |||||
| 2 | WP2261963 | Assembly, Top Hinge (Replaces: 2261963) |
|
Immediately | $ 89.51 | ||||
| 3 | WPW10142530 | Assembly, Roller (Replaces: W10142530) |
|
Immediately | $ 101.23 | ||||
| 4 | NP | Cabinet (not Serviced) |
|
- | |||||
| 5 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 6 | NP | Cabinet (not Serviced) |
|
- | |||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 8 | WP2166037 | Assembly, Hinge (center) (Replaces: 2166086) |
|
$ 70.34 | |||||
| 9 | 2166043 | Shim, Hinge Center (white) |
|
$ 59.80 | |||||
| 10 | WP2325482 | Hinge, Bottom (Replaces: 2325482) |
|
Immediately | $ 68.57 | ||||
| 11 | WPW10520304 | Plug, Hole (white) (Replaces: W10520304) |
|
Immediately | $ 16.47 | ||||
| 12 | W10859322 | Filler, Wrapper (white) (Replaces: 2166003) |
|
$ 6.93 | |||||
| 13 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 9.79 | ||||
| 14 | W11234470 | Clamp, Power Cord (Replaces: W11242280) |
|
$ 18.96 | |||||
| 15 | WP2201567 | Shim, Hinge (bottom) (Replaces: 2201567) |
|
$ 6.99 | |||||
| 16 | W11026307 | Hinge Pin (Replaces: W10638688) |
|
Immediately | $ 66.52 | ||||
| 17 | W11307292 | Cover Unit |
|
$ 42.71 | |||||
| 18 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 19 | 2266506 | Spacer, Back |
|
$ 12.33 | |||||
| 20 | W10846529 | Cap, Dome (white) (Replaces: W10674771) |
|
Immediately | $ 16.99 | ||||
| 21 | W10847959 | Cap, Washer Dome (Replaces: W10674773) |
|
$ 9.66 | |||||
| 11A | WPW10520305 | Plug, Hole (black) (Replaces: W10520305) |
|
$ 16.44 | |||||
| 11B | WPW10520307 | Plug, Hole (grey) (Replaces: W10520307) |
|
Immediately | $ 6.47 | ||||
| 12A | W11500943 | Filler, Wrapper (black) (Replaces: 2215384) |
|
$ 6.84 | |||||
| 12B | W11573591 | Filler, Wrapper (grey) (Replaces: W10761079) |
|
$ 7.05 | |||||
| 1A | W10679185 | Use And Care Guide |
|
- | |||||
| 1B | W11095255 | Energy Guide |
|
- | |||||
| 20A | W10853677 | Cap, Dome (black) (Replaces: W10679135) |
|
$ 17.05 | |||||
| 20B | W10849198 | Cap, Dome (grey) (Replaces: W10679139) |
|
$ 16.47 | |||||
| 9A | 2215385 | Shim, Hinge Center (black) |
|
$ 78.29 |
