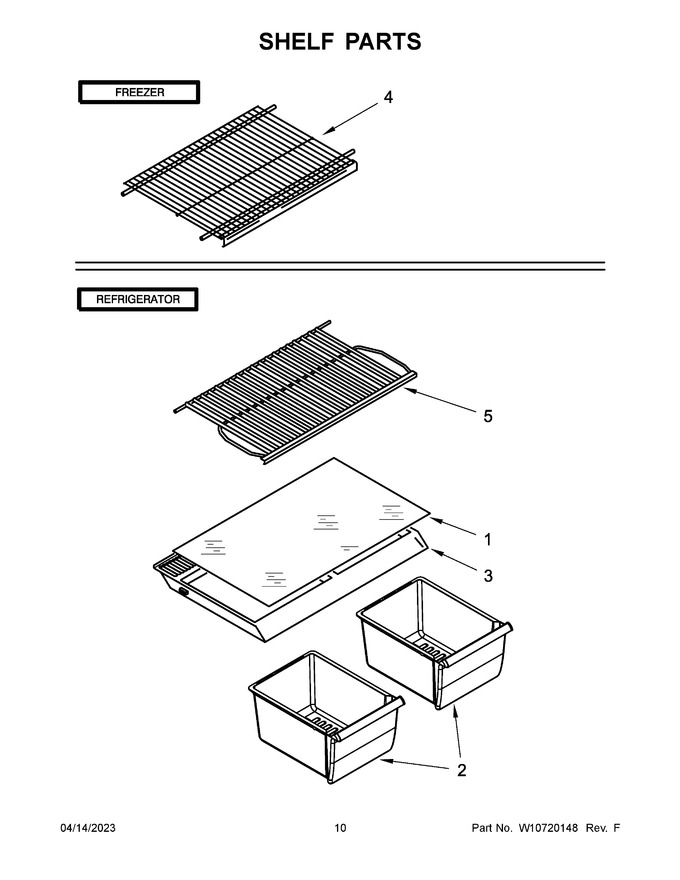

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11299024 | Glass, Cover (Replaces: W11184839) |
|
Immediately | $ 213.79 | ||||
| 2 | W10872066 | Pan, Crisper (Replaces: 2207931) |
|
Immediately | $ 117.34 | ||||
| 3 | WP2192250 | Cover, Crisper (Replaces: 2192250) |
|
Immediately | $ 165.63 | ||||
| 4 | WP2192514 | Shelf, Freezer (Replaces: 2192514) |
|
Immediately | $ 86.44 | ||||
| 5 | WP2192515 | Shelf (Replaces: 2192515) |
|
$ 110.10 |
