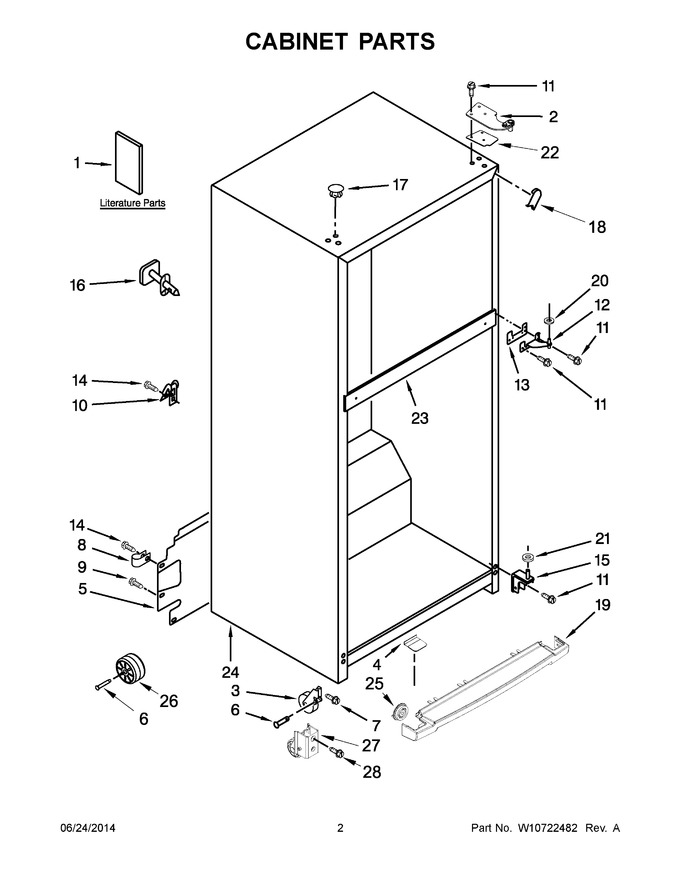

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10712371 | Service And Wiring Sheet |
|
- | |||||
| 1 | W10551713 | Use And Care Guide |
|
- | |||||
| 1 | W10417318 | Energy Label |
|
- | |||||
| 2 | WPW10300065 | Assembly, Top Right Hinge (Replaces: W10300065) |
|
$ 11.95 | |||||
| 3 | WP2166108 | Assembly, Roller (Replaces: 2166108) |
|
Immediately | $ 31.28 | ||||
| 4 | W10381059 | Endcap, Grille (white) |
|
$ 75.06 | |||||
| 4 | W10381060 | Endcap, Grille (black) |
|
$ 36.12 | |||||
| 4 | W10381064 | Endcap, Grille (grey) |
|
$ 70.38 | |||||
| 5 | W10636716 | Cover, Unit (Replaces: W10384413) |
|
$ 90.23 | |||||
| 6 | W11594405 | Axle, Rivet (Replaces: 2221797) |
|
Immediately | $ 16.39 | ||||
| 7 | W10850698 | Screw (Replaces: 3400517) |
|
$ 10.69 | |||||
| 8 | W10861184 | Clamp, Tube (Replaces: W10329003) |
|
$ 56.48 | |||||
| 9 | WP489427 | Screw (Replaces: 489427) |
|
$ 6.72 | |||||
| 10 | 549193 | Clamp, Power Cord |
|
$ 12.05 | |||||
| 11 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 12 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 78.88 | ||||
| 13 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 9.59 | |||||
| 14 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.01 | ||||
| 15 | WP2254473 | Hinge, Bottom (Replaces: 2254473) |
|
Immediately | $ 7.62 | ||||
| 16 | N/P | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 17 | WPW10520304 | Hole Plug (white) (Replaces: W10520304) |
|
Immediately | $ 16.47 | ||||
| 17 | WPW10520307 | Hole Plug (grey) (Replaces: W10520307) |
|
Immediately | $ 6.47 | ||||
| 17 | WPW10520305 | Hole Plug (black) (Replaces: W10520305) |
|
$ 16.44 | |||||
| 18 | WPW10283959 | Corner Filler (white) (Replaces: W10283959) |
|
$ 7.04 | |||||
| 18 | W11252732 | Corner Filler (black) (Replaces: W10283960) |
|
$ 11.21 | |||||
| 18 | W10851579 | Corner Filler (grey) (Replaces: W10283961) |
|
Immediately | $ 6.47 | ||||
| 19 | WPW10353933 | Grille (black) (Replaces: W10353933) |
|
$ 139.55 | |||||
| 19 | WPW10300127 | Grille (white) (Replaces: W10300127) |
|
$ 138.42 | |||||
| 19 | WPW10353935 | Grille (grey) (Replaces: W10353935) |
|
Immediately | $ 92.99 | ||||
| 20 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 9.79 | ||||
| 21 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 22 | W10883637 | Shim, Top Hinge (Replaces: W10338247) |
|
$ 13.67 | |||||
| 23 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 24 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 25 | W10331226 | Drum, Toe Grille |
|
$ 40.64 | |||||
| 26 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 27 | W10849386 | Assembly, Roller (Replaces: W10327136) |
|
$ 98.36 | |||||
| 28 | 3400524 | Bolt (Replaces: W10142287) |
|
$ 11.39 |
