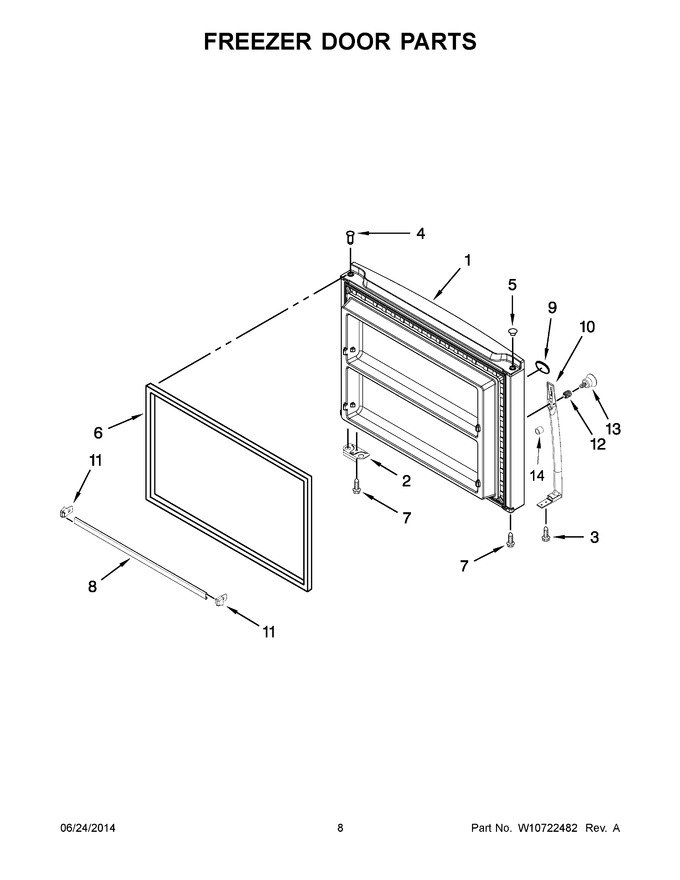

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10406256		Freezer Door (includes Illus. 4 & 6) (black)		Appelez-nous	-
1	W10406258		Freezer Door (includes Illus. 4 & 6) (sparkle)		Appelez-nous	-
1	W10406254		Freezer Door (includes Illus. 4 & 6) (white)		Appelez-nous	-
2	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
3	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.47
4	W11189115		Thimble, Top (black)   (Replaces: W10334042)				$ 10.89
5	WP2254517		Hole Plug, Hinge Sleeve (grey)   (Replaces: 2254517)			Immediately	$ 20.86
5	WP2212648		Hole Plug, Hinge Sleeve (white)   (Replaces: 2212648)				$ 7.02
5	WP2212651		Hole Plug, Hinge Sleeve (black)   (Replaces: 2212651)				$ 20.75
6	2177304		Door Gasket, Magnetic (black)   (Replaces: 2214968)				$ 202.57
6	W11624958		Door Gasket, Magnetic (grey)   (Replaces: W10279559)				$ 275.08
6	2159327		Door Gasket, Magnetic (beige)   (Replaces: 2214966)			Immediately	$ 148.12
7	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.07
8	W10469910		Trim, Door				$ 141.19
9	W11178521		Nameplate (grey)   (Replaces: W10481433)			Immediately	$ 56.82
9	W11178521		Nameplate (white)   (Replaces: W10481434)			Immediately	$ 56.82
10	WPW10498429		Handle (white)   (Replaces: W10498421)				$ 150.08
10	W11765172		Handle (titanium Sparkle)   (Replaces: W10498437)			Immediately	$ 107.29
10	W10498422		Handle (black)		Appelez-nous	-
11	W10338485		Cap, Trim End (left Hand)				$ 10.41
11	W10308871		Cap, Trim End (right Hand)				$ 10.44
12	690046		Screw, Set		Appelez-nous	-
13	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 7.66
14	WPW10511911		Bushing, Handle   (Replaces: W10511911)				$ 13.81
