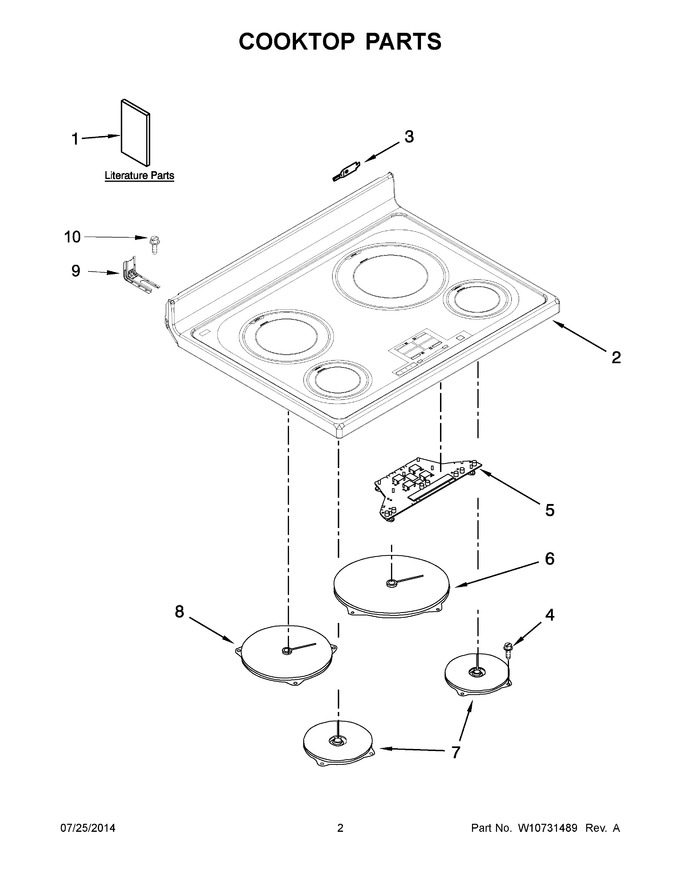

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403812		Instructions, Installation		Appelez-nous	-
2	W10514689		Cooktop (black)   (Replaces: W10401389)				$ 642.45
3	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 11.30
4	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
5	W10818314		Board, Display Ui-g8   (Replaces: W10390744)				$ 293.64
6	WPW10410579		Hotplate (left Rear)   (Replaces: W10410579)				$ 231.72
7	WPW10410580		Hotplate (left Front & Right Front)   (Replaces: W10410580)				$ 219.30
8	WPW10410578		Hotplate (right Rear)   (Replaces: W10410578)				$ 277.41
9	W11447673		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.64
10	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 26.33
1A	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1B	W10392935		Guide, Use & Care		Appelez-nous	-
1C	W10441306		Tech Sheet (induction)		Appelez-nous	-
1D	W10392954		Tech Sheet		Appelez-nous	-
1E	W10400064		Guide, Quick Start (english)		Appelez-nous	-
NI	W10324944		Harness, Sensor				$ 26.89
NI	W10324946		Harness, Wire (drawer)				$ 24.89
NI	WP4159193		Screw, Ground   (Replaces: 7101P027-60)				$ 4.29
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10349731		Harness, Wire (main)				$ 193.45
