01 - Cover Sheet
02 - Cooktop Parts
03 - Interior Parts

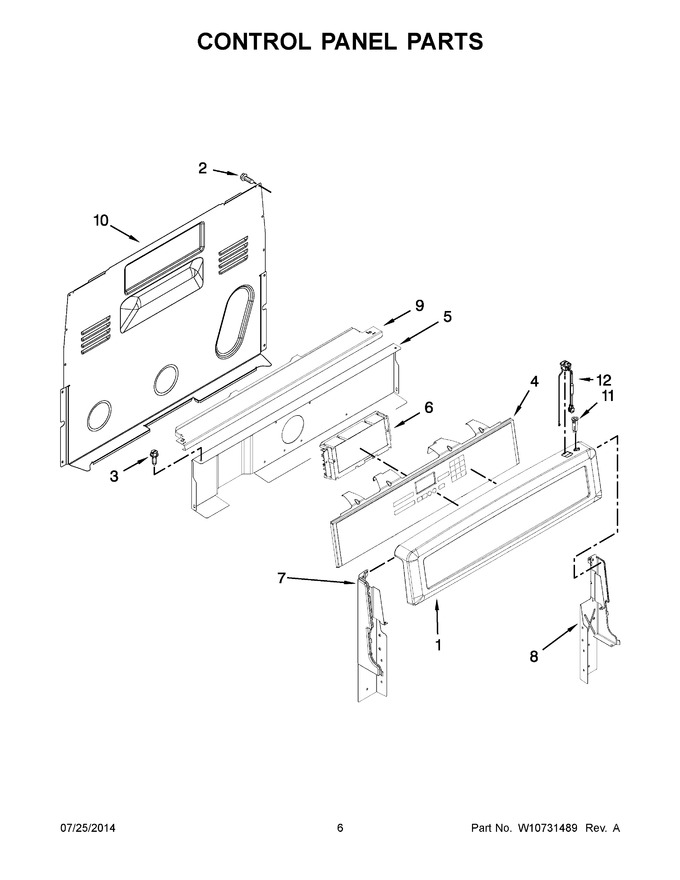

04 - Control Panel Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10318553 | Panel, Backguard (stainless) (Replaces: W10318553) |
|
$ 256.45 | |||||
| 2 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 6.98 | |||||
| 3 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| 4 | W10678666 | Active Overlay Assembly (stainless) (Replaces: W10318563) |
|
$ 296.69 | |||||
| 5 | W10134247 | Shield, Heat |
|
Immediately | $ 307.56 | ||||
| 6 | WPW10340311 | Control Board (Replaces: W10340311) |
|
Immediately | $ 445.03 | ||||
| 7 | W11219664 | Endcap (black (left Hand)) (Replaces: W10184437) |
|
$ 131.85 | |||||
| 8 | W11219665 | Endcap (black (right Hand)) (Replaces: W10184438) |
|
$ 36.40 | |||||
| 9 | W10525121 | Bracket, Console Mounting |
|
$ 84.73 | |||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 187.75 | |||||
| 11 | WP9757602 | Circuit Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 48.43 | ||||
| 12 | W10861164 | Receptacle (black) (Replaces: W10488078) |
|
Immediately | $ 16.62 |
