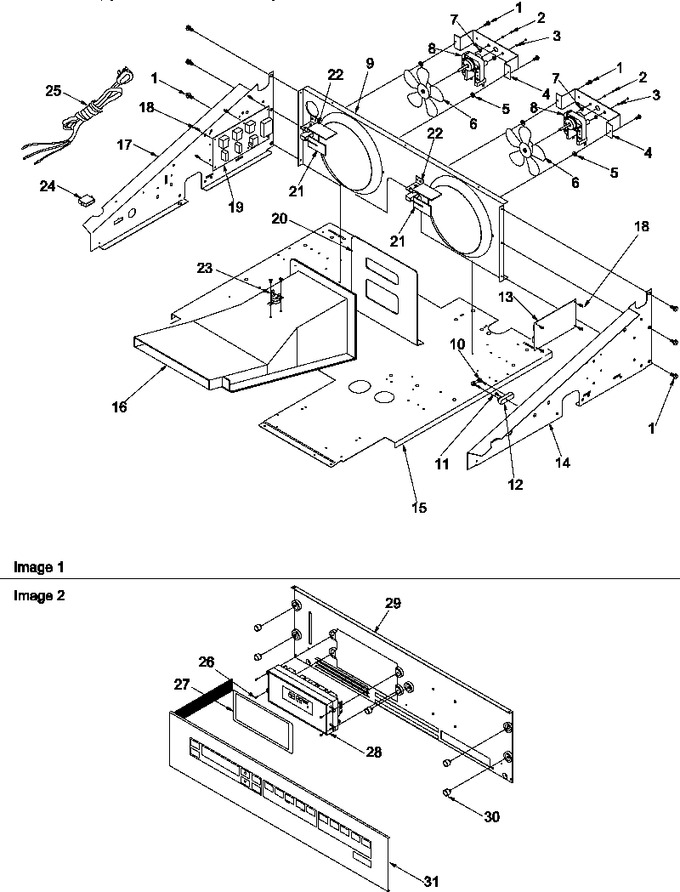

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
2	M0282005		Nut, Hex Keps No.6-32   (Replaces: 31750119)				$ 7.07
3	31750015		Washer, Flat 5/32 X 7/16 O.d.		Appelez-nous	-
4	Y0305242		Bracket-motor Mount		Appelez-nous	-
5	31750005		Washer, Flat 1/4 X 5/8 O.d.		Appelez-nous	-
6	Y0314548		Blade, Fan		Appelez-nous	-
7	Y0305243		Grommet-fan		Appelez-nous	-
8	Y0042226		Fan Motor		Appelez-nous	-
9	Y0060841		Panel, Back Control		Appelez-nous	-
10	Y0042064		Resistor		Appelez-nous	-
11	31750412		Screw, No.8-18x5/8 P Rd Hd (blk)		Appelez-nous	-
12	Y0042191		Term Blk Eo&go 1m-2.5m-5m-10m		Appelez-nous	-
13	Y0314523		Relay, Module		Appelez-nous	-
14	Y0314834		Compartment, Control Rt		Appelez-nous	-
15	Y0060829		Oven Top, Upper Oven		Appelez-nous	-
16	31824201		Flueway, Control Panel-top		Appelez-nous	-
17	Y0314835		Compartment, Control Lt		Appelez-nous	-
18	31726801		Support, Circuit Board		Appelez-nous	-
19	Y0309305		Circuit Board, Erc				$ 209.64
20	0060824		Bracket, Flue Support		Appelez-nous	-
21	0066207		Sail Switch		Appelez-nous	-
22	Y0052814		Bracket, Switch		Appelez-nous	-
23	31833001		Control, Limit		Appelez-nous	-
24	31748901		Molex Receptacle 3 Circuit		Appelez-nous	-
25	Y0054865		Supply Cord		Appelez-nous	-
26	31750309		Screw, No.6-20 X .375 Pan Hd		Appelez-nous	-
27	31846301		Seal, Erc		Appelez-nous	-
28	31799201		Erc-double Oven		Appelez-nous	-
29	31845301B		Brkt, Control Panel Mtg (blk)		Appelez-nous	-
30	Y0314643		Bumper, Rubber		Appelez-nous	-
31	31796101B		Assy, Membrane Switch (blk)		Appelez-nous	-
NI	31866301		Harness, Main		Appelez-nous	-
NI	Y0051941		Sleeving		Appelez-nous	-
NI	Y0091523		Insulation, Esm		Appelez-nous	-
