AGOD2750E (BOM: P1132527N E) | TransGlobal : Appliance Model Lookup

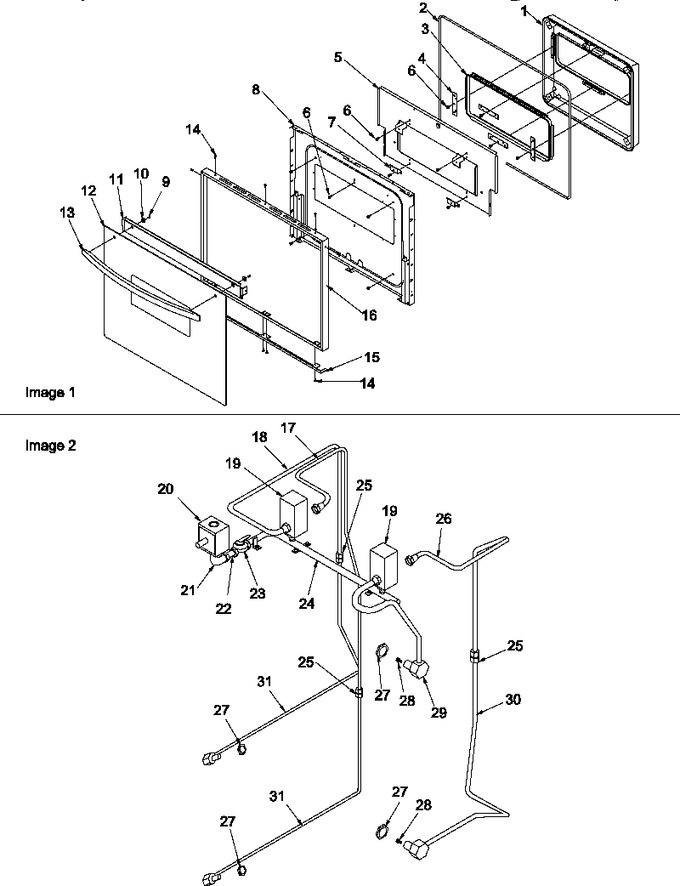

Diagram #	Part Number	Description	Availability	Ships	Price
1	40223CG	Backer, Oven Door (cg)	Appelez-nous	-
2	31715903	Gasket, Door (76``)	Appelez-nous	-
3	0041491	Window Assy	Appelez-nous	-
4	Y0052629	Retainer, Door Glass	Appelez-nous	-
5	Y0309286	Baffle, Inner	Appelez-nous	-
6	WP693995	Screw, No.8-18 X 3/8 P Hex Wsh T (Replaces: 31750432)		Immediately	$ 6.47
7	Y0040955	Window Mtg. Brkt. Pk411	Appelez-nous	-
8	31796701CG	Liner, Door (cg)	Appelez-nous	-
9	31750524	Screw, No.10-32 X .687 Pan Hd	Appelez-nous	-
10	Y0307893	Bushing, Handle	Appelez-nous	-
11	31796501	Brkt, Handle Mtg	Appelez-nous	-
12	31796401B	Glass, Door (blk)-27`` Walloven	Appelez-nous	-
13	31796301B	Handle, Oven Door (blk)	Appelez-nous	-
14	31750706	Screw, No.8 X .375 Wafer Hd(blk)	Appelez-nous	-
15	305587B	Angle, Glass Support (blk)	Appelez-nous	-
16	307886B	Frame, Oven Door (blk)	Appelez-nous	-
17	0304098	Tubing-lower Union To Valve	Appelez-nous	-
18	31801901	Tubing-upper Bake-union To Val	Appelez-nous	-
19	Y0060750	Valve, Dual Thermal-gas	Appelez-nous	-
20	Y0063684	Regulator-5``/10`` Side Inlet	Appelez-nous	-
21	Y0097408	Elbow, Pipe-1/2`` X 90 Degree	Appelez-nous	-
22	Y0097320	Nipple-1/2``-pressure Regulator	Appelez-nous	-
23	Y0314271	Valve, Shut-off	Appelez-nous	-
24	Y0060751	Manifold Assy.	Appelez-nous	-
25	Y0304566	Union Straight 3/8 To 3/8cc	Appelez-nous	-
26	Y0304097	Tubing-lower Union To Valve	Appelez-nous	-
27	31750116	Nut, Pal 3/4-16 X 1.062	Appelez-nous	-
28	Y0060042	Orifice, No.59 Lp	Appelez-nous	-
28	Y0060043	Orifice, No.52 Nat	Appelez-nous	-
29	Y0054839	Tubing-upper Broil To Valve	Appelez-nous	-
30	Y0054837	Tubing-lower Burner To Union	Appelez-nous	-
31	Y0054834	Hood & Tubing Upper Bake	Appelez-nous	-
NI	0043184	Tape, Foam	Appelez-nous	-
NI	Y0041975	Insulation 2x20x72	Appelez-nous	-
NI	31750006	Washer, Lock 13/16 X 3/8 O.d.	Appelez-nous	-
