SELECT A DIAGRAM

01 - Cover


03 - Freezer Drawer, Baskets


05 - Fresh Food Doors


07 - Cabinet


09 - Shelves


11 - Cooling System


13 - Controls & Ice Dispenser


15 - Ice Container


17 - Fresh Food Ice Maker


19 - Freezer Ice Maker


20 - Wiring Diagram


21 - Wiring Diagram

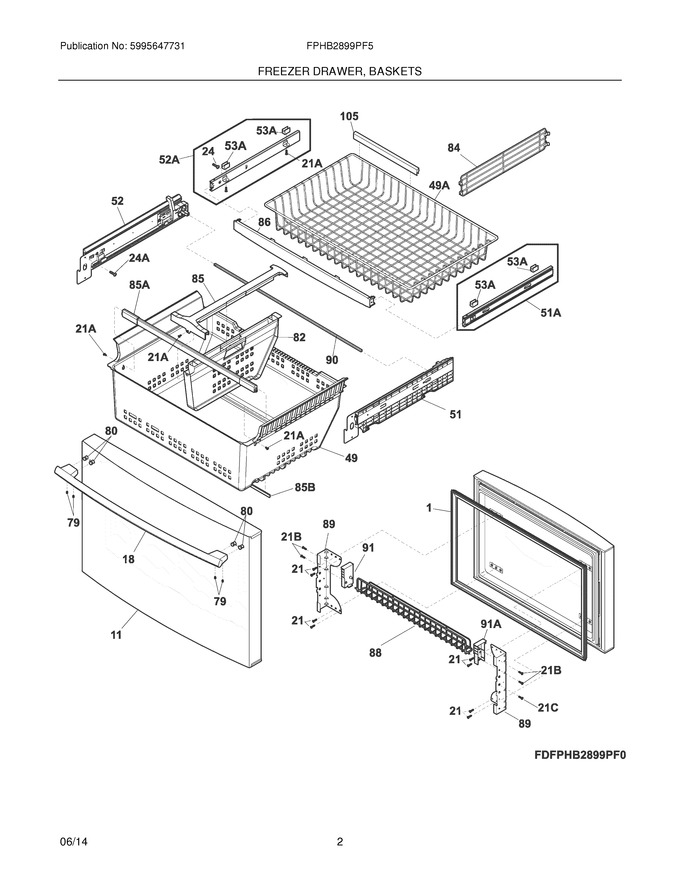

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304537408		Gasket-frzr Drawer,gray ,magnetic   (Replaces: 241778308)			Immediately	$ 86.28
11	241987921		Door-frzr,stainless ,complete Assy				$ 653.57
18	242029101		Handle-frzr Drawer,stainless				$ 188.48
21	241690602		Screw,quadrex ,no.10-16 Hilo			Immediately	$ 10.63
24	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 19.23
49	5303918736		Basket-frzr,plastic ,lower   (Replaces: 242130701)				$ 222.22
51	5303918690		Slide Assembly,basket Lower ,rh ,freezer Drawer   (Replaces: 242130514)				$ 271.18
52	242130513		Slide Assembly,basket Lower ,lh ,freezer Drawer		Appelez-nous	-
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw,shoulder ,no.10-ab ,handle Mounting			Immediately	$ 18.60
82	5304503705		Divider,basket   (Replaces: 242131301)				$ 118.36
84	241780904		Divider,basket				$ 71.29
85	242130901		Divider,basket ,lower				$ 91.76
86	5304507340		Trim,drawer ,stabilizer   (Replaces: 241807605)			Immediately	$ 45.55
88	241824008		Rack-non-tilt Out,door				$ 123.62
89	241972302		Bracket-freezer Drawer				$ 109.21
90	242136901		Bar-timing				$ 35.45
91	241824102		Cap-door Rack				$ 17.44
105	242116801		Trim-basket				$ 17.72
21A	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
21B	242015001		Screw,8-18 X 1/2			Immediately	$ 16.30
21C	241899703		Screw,truss Head ,no.10-32 X 1/4 ,zinc				$ 15.92
24A	240383412		Screw,truss Hd Quad ,no.10-16 X .750 ,zinc				$ 11.44
49A	241780810		Basket-frzr,upper				$ 214.80
51A	242039701		Screw,basket Slides				$ 13.46
51A	241894223		Slide Assembly,basket ,rh ,freezer Drawer			Immediately	$ 132.53
52A	241894224		Slide Assembly,basket ,lh ,freezer Drawer				$ 131.83
53A	5303918801		Retainer-basket   (Replaces: 242216301)				$ 12.89
85A	242139301		Support-beam,divider ,lower Basket				$ 73.71
85B	241872203		Support-beam				$ 53.85
91A	241824101		Cap,door Rack ,white				$ 17.44
NI	242146401		Screw,ser Hex Wash Hd ,1/4-20 X 5/8 ,(4)			Immediately	$ 14.27
NI	242139201		Spring-compression,divider ,lower Basket				$ 19.72
NI	242011101		Pin-lock				$ 15.17
NI	5304497384		Plate,tapping   (Replaces: 242147601)				$ 15.60
NI	241953908		Screw,quad Hilo ,no.8-18				$ 4.26
NI	241601001		Wrench,allen		Appelez-nous	-
NI	5304453707		Screw,no.8-18   (Replaces: 241953901)			Immediately	$ 15.92
NI	242039702		Screw,shoulder ,no.10-16 ,(2)				$ 4.26
