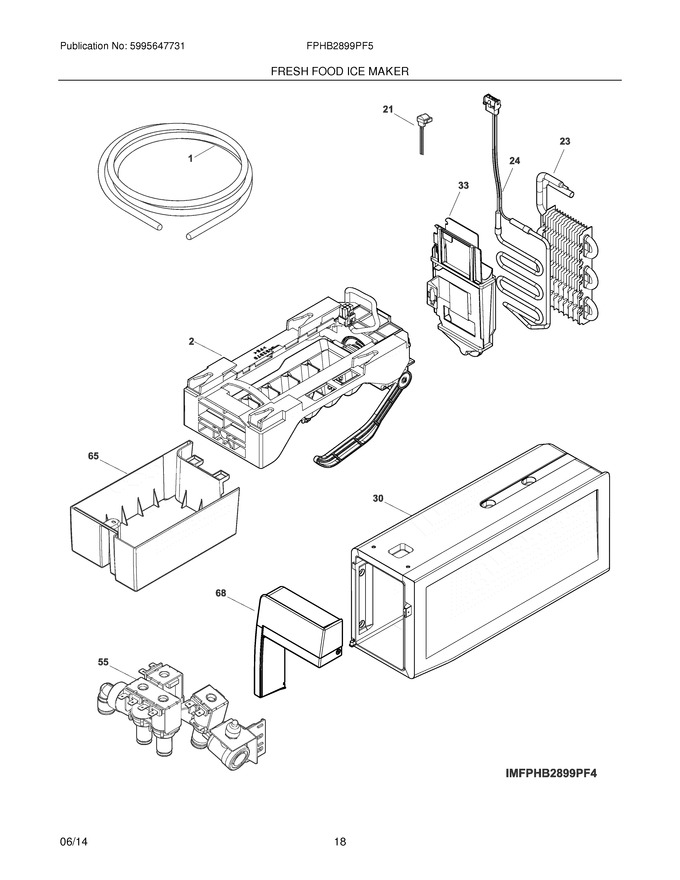

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976436 | Tube-water,5/16 - 42`` ,yellow ,sd (Replaces: 218976434) |
|
Immediately | $ 8.51 | ||||
| 2 | 243297613 | Ice Maker,complete ,115 V (Replaces: 243297606) |
|
Immediately | $ 117.66 | ||||
| 21 | 5303918568 | Thermostat-defrost,defrost ,icemaker Evap |
|
$ 91.43 | |||||
| 23 | 242094603 | Evaporator,ice Maker |
|
$ 138.07 | |||||
| 24 | 242094802 | Heater-defrost |
|
Immediately | $ 113.92 | ||||
| 30 | 242093501 | Cover,icmkr & Bucket (Replaces: 242142201) |
|
$ 168.69 | |||||
| 33 | 242094401 | Housing-evaporator |
|
$ 6.39 | |||||
| 55 | 242253002 | Valve-water,quad Solenoid |
|
Immediately | $ 244.75 | ||||
| 65 | 808456301 | Cover,wiring |
|
$ 75.41 | |||||
| 68 | 242095002 | Cover,-front ,bucket Trim |
|
$ 94.82 | |||||
| NI | 241965906 | Tube-water,5/16 - 67`` ,natural |
|
Immediately | $ 24.10 | ||||
| NI | 241920106 | Tube-water,assembly ,5/16 - 54`` ,green ,ice Maker Fill,w/extension (Replaces: 241920104) |
|
Immediately | $ 60.67 | ||||
| NI | 241695906 | Screw,10-16ab X 0.50 |
|
$ 19.13 | |||||
| NI | 5303918784 | Gasket,.4x .75x 16.00`` (Replaces: 242124801) |
|
Immediately | $ 122.75 | ||||
| NI | 5303918784 | Gasket,.9x .75x 10.75`` (Replaces: 242124802) |
|
Immediately | $ 122.75 | ||||
| NI | 5303918571 | Tube-water,ice Mold Fill ,black ,extension (Replaces: 241844403) |
|
$ 164.24 | |||||
| NI | 242095402 | Gasket-evap Housing,.250x.250x3.300 |
|
- | |||||
| NI | 242095403 | Gasket-evap Housing,.250x.250x7.750 |
|
- | |||||
| NI | 5303918784 | Gasket-evap Housing,.250x.250x5.250 (Replaces: 242095404) |
|
Immediately | $ 122.75 | ||||
| NI | 242095405 | Gasket-evap Housing,.250x.250x6.600 |
|
- | |||||
| NI | 242095408 | Gasket-evap Housing,.250x1.00x6.600 |
|
- | |||||
| NI | 218709101 | Screw,hex Head ,10-32 X 0.500 |
|
$ 6.38 | |||||
| NI | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NI | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 17.11 | ||||
| NI | 242096001 | Insulation,i/container Frt |
|
$ 19.72 | |||||
| NI | 241503901 | Connector-water,straight ,5/16 To 1/4 |
|
$ 51.22 | |||||
| NI | 808714501 | Harness,wiring ,icemaker Jumper ,w/reed Switches |
|
$ 87.97 | |||||
| NI | 241806601 | Connector-water,straight ,5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 242220202 | Tube-water Inlet,.315 - 57.50`` ,natural |
|
$ 29.06 | |||||
| NI | 242220204 | Tube-water Inlet,.315 - 93.50`` ,brown/tan (Replaces: 242220201) |
|
Immediately | $ 40.32 |
