SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


12 - Wiring Diagram

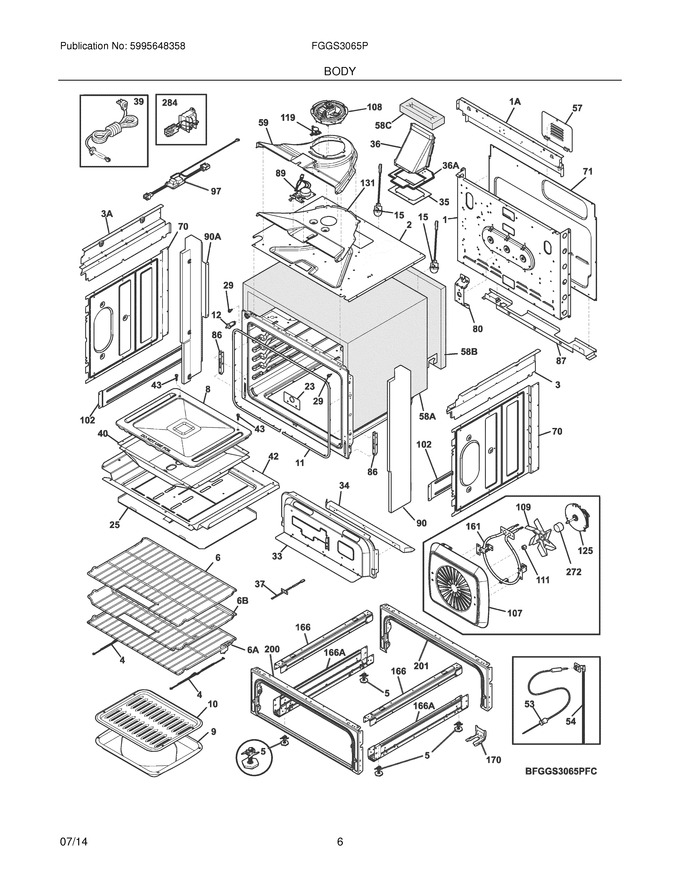

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017302		Panel,main Back		Appelez-nous	-
2	139078201		Shield,insulation ,top		Appelez-nous	-
3	318225230		Panel,bodyside ,upper Rh		Appelez-nous	-
4	318927600		Support,auto Rack ,(2)				$ 23.25
5	318175510		Screw,leveling ,w/tee Nut   (Replaces: 318175508)			Immediately	$ 24.26
6	139011600		Rack,oven ,w/handle				$ 124.74
8	139005003		Panel,oven Bottom				$ 131.64
9	318138801		Pan,broileroptional Access0ry		Appelez-nous	-
10	318126401		Insert,broiler Panoptional Access0ry		Appelez-nous	-
11	807545502		Seal,oven Door ,gray				$ 140.34
12	808136601		Switch,light ,door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304528790		Lamp Assembly,round ,halogen ,w/lens ,w/bulb   (Replaces: 139009000)			Immediately	$ 20.56
23	139004500		Cover,broil Opening		Appelez-nous	-
25	318291900		Bracket,shield ,lower				$ 94.27
29	316517600		Spacer,oven Door				$ 12.05
33	318287800		Panel,valve Mtg.		Appelez-nous	-
34	318289401		Panel,valve Filler		Appelez-nous	-
35	318291300		Seal,flue Cavity		Appelez-nous	-
36	139004402		Box,flue Assembly		Appelez-nous	-
37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
39	5304534377		Cord,service   (Replaces: 318144008)				$ 26.85
40	139004700		Box,oven Burner				$ 109.85
42	139004800		Shield,heat ,lower				$ 127.58
43	316282700		Screw,8-18 X 1.438 ,oven Bottom   (Replaces: 3131732)				$ 9.93
53	5304504202		Probe,meat Temp ,red   (Replaces: 318601303)			Immediately	$ 106.19
54	139017201		Receptacle Assy,meat Probe				$ 187.82
57	316283600		Cover,access				$ 12.50
59	139078002		Duct,cooling Fan ,top   (Replaces: 139078000)				$ 78.67
70	139000601		Shield,insulation ,sides ,(2)   (Replaces: 139000600)				$ 72.05
71	139014000		Shield,rear Wall ,lower		Appelez-nous	-
80	139021101		Bracket,support ,chassis/fan   (Replaces: 139021100)				$ 14.89
86	318561100		Receptacle,hinge ,(2)				$ 21.23
87	318260624		Bracket,cable Mtg.		Appelez-nous	-
89	5304528836		Motor,latch Assembly   (Replaces: 139078300)			Immediately	$ 76.34
90	318296902		Panel,filler ,white ,rh				$ 73.71
97	808743401		Board,emi Filter ,w/harness				$ 38.69
102	139004100		Panel,reinforcement ,(2)				$ 20.89
107	139013903		Cover,convection Fan				$ 46.86
107	807597603		Screw,self Tapping ,8-18 X 11/32 ,(4)				$ 9.22
108	318575612		Motor,cooling Fan			Immediately	$ 196.61
109	318398302		Blade,fan ,convection   (Replaces: 139009100)			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
119	807144901		Thermostat,safety				$ 58.39
125	139008600		Motor,fan ,convection				$ 189.70
131	139078102		Duct,cooling Fan ,bottom   (Replaces: 139078100)				$ 64.49
161	139013800		Element,convection ,350w				$ 87.97
166	318298403		Bracket,base Support ,lower ,(2)		Appelez-nous	-
166	318298410		Bracket,base Support ,(2)				$ 75.83
170	5304486410		Kit,anti Tip ,w/brkt & Instru				$ 158.50
200	318335600		Frame & Wheel Assembly,black				$ 133.82
201	318298233		Frame,drawer ,black   (Replaces: 318298230)				$ 45.36
272	139021700		Tube,convection Fan				$ 17.72
284	316536100		Transformer			Immediately	$ 210.83
1A	139004600		Panel,main Back ,upper				$ 67.62
36A	139008300		Support,panel ,flue		Appelez-nous	-
3A	318225231		Panel,bodyside ,upper Lh		Appelez-nous	-
58A	139010900		Insulation,wrapper ,top & Sides				$ 97.70
58B	139011000		Insulation,oven Back		Appelez-nous	-
58C	318594402		Insulation,flue   (Replaces: 318594401)				$ 245.64
6A	139012400		Rack,oven ,offset ,w/handle				$ 181.34
6B	139013101		Rack,auto   (Replaces: 139013100)				$ 159.26
90A	318296903		Panel,filler ,white ,lh				$ 67.73
NI	316021109		Screw,8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	318946500		Bulb,halogen ,g9 ,25w ,120v			Immediately	$ 60.44
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	318531701		Spacer				$ 12.05
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	808275302		Harness,wiring ,main		Appelez-nous	-
NI	808041201		Harness,wiring ,oven Ignitors				$ 51.57
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
