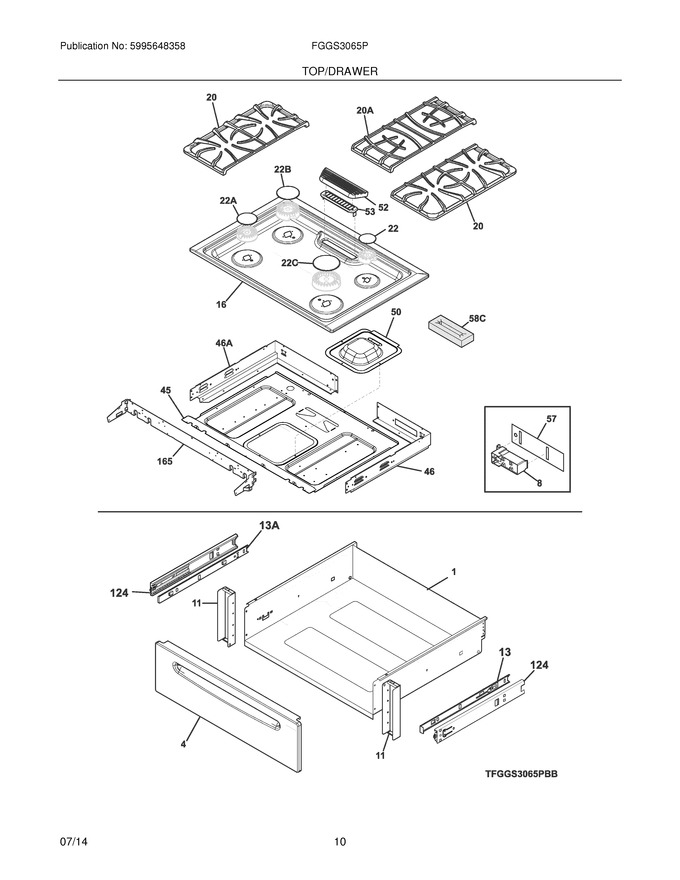

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107317		Drawer   (Replaces: 318107313)				$ 144.09
4	318298906		Panel,drawer ,white ,front				$ 145.30
8	808608802		Module,spark   (Replaces: 316262405)			Immediately	$ 82.93
11	318298600		Bracket,drawer Support ,(2)				$ 62.69
13	318259504		Glide,warmer ,inner Rh				$ 29.49
16	318569270		Maintop Assembly,white		Appelez-nous	-
20	318560260		Grate,burner ,black ,(2)		Appelez-nous	-
22	5304508441		Cap,5k Burner ,matte ,black   (Replaces: 316261704)			Immediately	$ 35.04
45	318578701		Panel,burner Box ,bottom		Appelez-nous	-
46	318568200		Box,burner ,rh				$ 23.99
50	318578803		Panel,service ,fan				$ 43.73
52	318291100		Cover,flue ,white ,outer		Appelez-nous	-
53	318308303		Cover,flue ,black				$ 112.19
57	318295611		Panel,service				$ 15.12
124	318330600		Glide,drawer ,outer/rh & Lh ,(2)				$ 77.97
165	318913300		Deflector,box ,front				$ 48.67
13A	318259505		Glide,warmer ,inner Lh				$ 33.03
20A	318560470		Grate,black ,center				$ 290.46
22A	5304508442		Cap,9.5k Burner ,matte ,black   (Replaces: 316261804)			Immediately	$ 36.55
22B	5304508443		Cap,14k Burner ,matte ,black   (Replaces: 316262004)			Immediately	$ 46.01
22C	5304508468		Cap,17k Burner ,black   (Replaces: 316262104)				$ 49.45
46A	318568201		Box,burner ,lh				$ 28.93
58C	318594402		Insulation,flue   (Replaces: 318594401)				$ 245.64
NI	316021109		Screw,8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316260800		Screw-shoulder,w/shoulder ,no.8-18 X 1/2``				$ 13.46
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	318291504		Plate,cook Top		Appelez-nous	-
