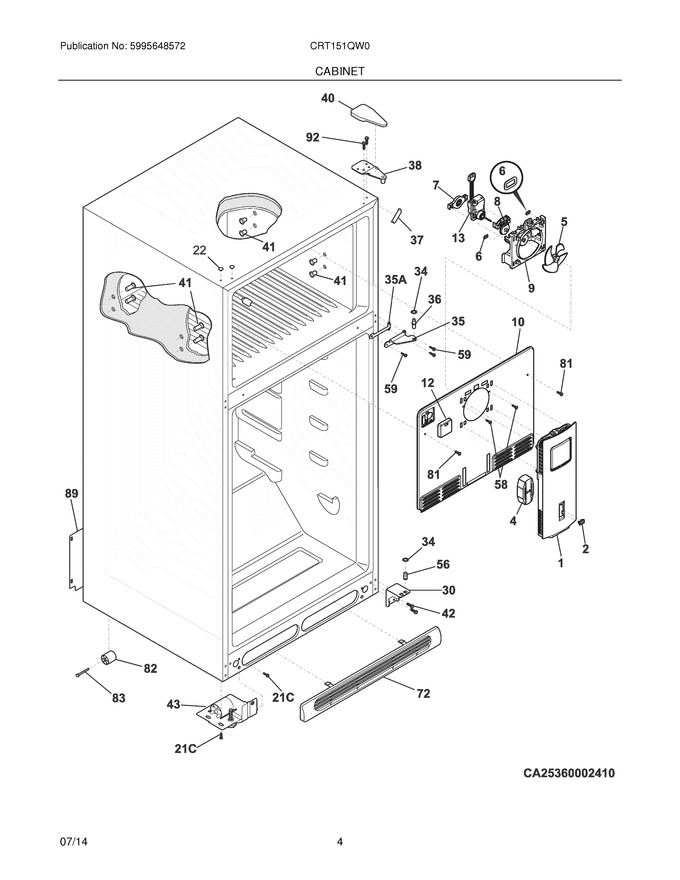

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242294704		Cover,evaporator Fan   (Replaces: 242230901)				$ 100.48
2	242249002		Knob,sliding ,damper   (Replaces: 242229401)			Immediately	$ 211.91
4	242294704		Damper,fan Cover   (Replaces: 242229501)				$ 100.48
5	242219302		Fan Blade,evaporator			Immediately	$ 17.44
6	5304497413		Ring,locking ,(2)			Immediately	$ 5.31
7	242287501		Grommet,evaporator Fan ,rear			Immediately	$ 17.72
8	242237301		Grommet,evaporator Fan ,front				$ 17.44
9	242229301		Shroud Bracket,evaporator Fan			Immediately	$ 30.47
10	242229804		Cover,evaporator Coil				$ 63.13
12	242249201		Cover,connection ,ice Maker				$ 16.39
13	242077705		Motor,evaporator Fan ,blower   (Replaces: 242219201)			Immediately	$ 142.27
22	215774901		Plug-button,white ,upr Hinge Holes			Immediately	$ 18.20
30	240314011		Bracket-lower Hinge,white   (Replaces: 240314002)			Immediately	$ 77.26
34	240311303		Washer,hinge ,nylon ,(2)			Immediately	$ 10.62
35	240313802		Bracket-ctr Hinge,white			Immediately	$ 70.16
36	240516402		Pin-center Hinge		Appelez-nous	-
37	242161201		Trim-cabinet Corner,white ,(2)			Immediately	$ 2.93
38	240313703		Bracket-upper Hinge			Immediately	$ 32.27
40	240354401		Cover-upper Hinge,white				$ 61.56
41	5304500407		Grommet,shelf Mtg ,1.25`` ,lh ,(4)   (Replaces: 5308009759)			Immediately	$ 6.38
42	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
43	241889002		Roller Assy,front Lh ,(2)				$ 63.08
56	240516502		Pin-lower Hinge				$ 72.80
58	241941202		Screw,hex Washer Head ,8-18 X 5/16   (Replaces: 240433204)				$ 15.17
59	240442708		Screw-no.10-32 X 3/4,white				$ 8.34
72	240368301		Grille/kickplate,white			Immediately	$ 69.46
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
82	240335202		Roller,compressor Base ,rear				$ 21.27
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin			Immediately	$ 35.34
89	241733906		Cover-access,with Label				$ 51.17
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg				$ 13.46
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
35A	240336802		Spacer-hinge,center ,white			Immediately	$ 18.43
NI	240494001		Plug-button,white ,cab Liner Holes			Immediately	$ 18.20
NI	5304453707		Screw,quad Hilo ,no.8-18 ,(2)   (Replaces: 241953901)			Immediately	$ 15.92
NI	218515401		Clip-grille				$ 17.72
NI	241586701		Plug,round ,foam ,ice Maker ,water Inlet				$ 17.72
NI	5304434189		Seal-coil Cover   (Replaces: 240568601)				$ 66.63
NI	241889001		Roller Assy,front Rh ,(2)				$ 64.46
NI	241500305		Screw,hex Washer Head ,8-18ab X 0.625   (Replaces: 241500304)				$ 3.03
NI	242213501		Harness,wiring ,freezer Section ,w/defrost Therm			Immediately	$ 87.84
